固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC1-R57-RFIXED IND 570NH 37.83A 0.68 MOHM Eaton - Electronics Division |
5,812 | - |
|
数据表 |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 37.83 A | 33.4A | - | Unshielded | 0.68mOhm Max | 570 nH | - | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - | -40°C ~ 125°C | 300 kHz | 0.394" (10.00mm) |
|
FP1010R3-R120-RIND FLAT PAC 120NH 63A 2 PADS Eaton - Electronics Division |
385 | - |
|
数据表 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 78 A | 78A | - | Shielded | 0.145mOhm | 120 nH | - | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.398" (10.10mm) |
|

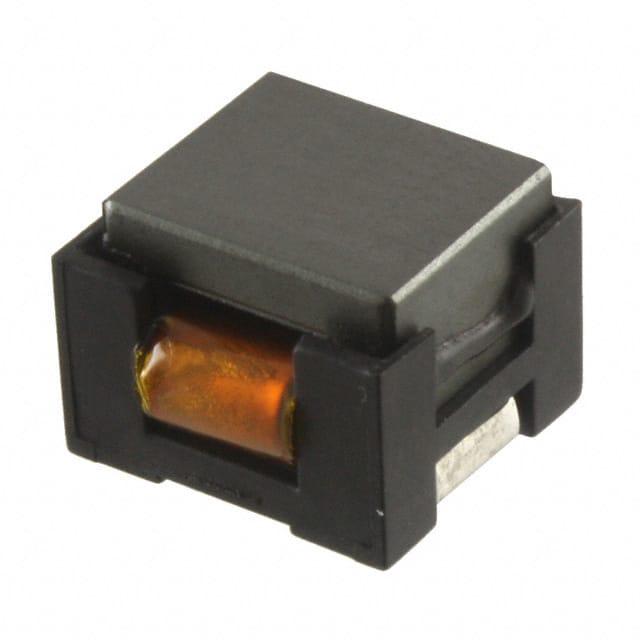

HC1-R22-RFIXED IND 220NH 51.42A 0.36 MOHM Eaton - Electronics Division |
378 | - |
|
数据表 |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 51.42 A | 40.5A | - | Unshielded | 0.36mOhm Max | 220 nH | - | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - | -40°C ~ 125°C | 300 kHz | 0.394" (10.00mm) |
|

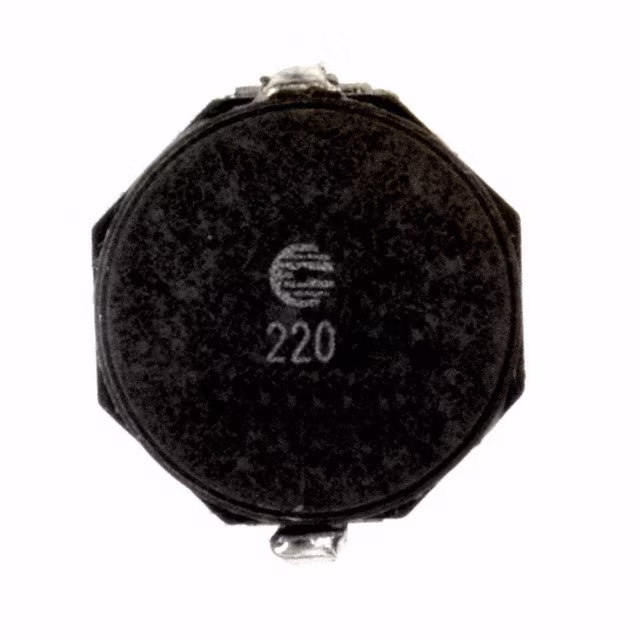

SD8350-220-RFIXED IND 22UH 1.8A 75 MOHM SMD Eaton - Electronics Division |
1,400 | - |
|
数据表 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.8 A | 2.6A | - | Shielded | 75mOhm Max | 22 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
DRA124-4R7-RFIXED IND 4.7UH 5.47A 14MOHM SMD Eaton - Electronics Division |
747 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 5.47 A | 9.06A | - | Shielded | 14mOhm | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.177" (4.50mm) |
|
HCMA1707-6R8-RFIXED IND 6.8UH 20A 7.55MOHM SMD Eaton - Electronics Division |
1,643 | - |
|
数据表 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 20 A | 22A | - | Shielded | 7.55mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
HCMA1707-150-RFIXED IND 15UH 12A 15.5 MOHM SMD Eaton - Electronics Division |
995 | - |
|
数据表 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 12 A | 13A | - | Shielded | 15.5mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
HCMA1707-470-RFIXED IND 47UH 6.8A 47 MOHM SMD Eaton - Electronics Division |
882 | - |
|
数据表 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 6.8 A | 7.5A | - | Shielded | 47mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
HCMA1707-100-RFIXED IND 10UH 14A 10 MOHM SMD Eaton - Electronics Division |
633 | - |
|
数据表 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 14 A | 18A | - | Shielded | 10mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
HCMA1707-680-RFIXED IND 68UH 5.2A 85 MOHM SMD Eaton - Electronics Division |
320 | - |
|
数据表 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 5.2 A | 6.5A | - | Shielded | 85mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
