固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP0906R1-R10-RFIXED IND 100NH 51A 0.29MOHM SMD Eaton - Electronics Division |
950 | - |
|
数据表 |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 51 A | 81A | - | Unshielded | 0.29mOhm | 100 nH | - | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|

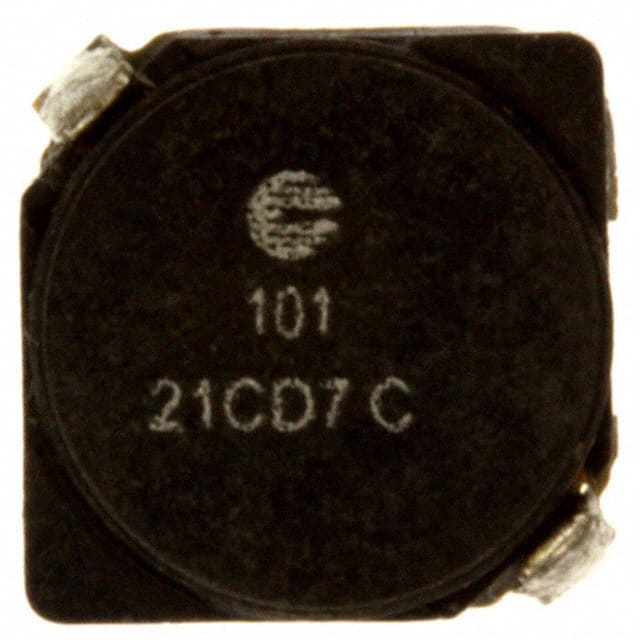

SD7030-101-RFIXED IND 95.5UH 700MA 535 MOHM Eaton - Electronics Division |
2,955 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 700 mA | 540mA | - | Shielded | 535mOhm Max | 95.5 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
.jpg)
|
FP2-S100-RFIXED IND 100NH 39A 0.24MOHM SMD Eaton - Electronics Division |
561 | - |
|
数据表 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 39 A | 22A | - | Unshielded | 0.24mOhm | 100 nH | - | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | - | -40°C ~ 125°C | 1 MHz | 0.118" (3.00mm) |
|
UP2B-2R2-RFIXED IND 2.2UH 7.2A 10.7MOHM SM Eaton - Electronics Division |
199 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.2 A | 6.1A | - | Unshielded | 10.7mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | - | -40°C ~ 85°C | 100 kHz | 0.236" (6.00mm) |
|
|
UP2B-1R0-RFIXED IND 1UH 9.3A 6.5 MOHM SMD Eaton - Electronics Division |
358 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 9.3 A | 9.9A | - | Unshielded | 6.5mOhm Max | 1 µH | - | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | - | -40°C ~ 85°C | 100 kHz | 0.236" (6.00mm) |
|
FP1007R6-R33-RFIXED IND 330NH 61A 0.29MOHM SMD Eaton - Electronics Division |
2,040 | - |
|
数据表 |
FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 61 A | 33A | - | Unshielded | 0.29mOhm | 330 nH | - | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
HCM1A0805-4R7-RFIXED IND 4.7UH 5.7A 20MOHM SMD Eaton - Electronics Division |
2,616 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 5.7 A | 10A | - | Shielded | 20mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.319" L x 0.315" W (8.10mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|

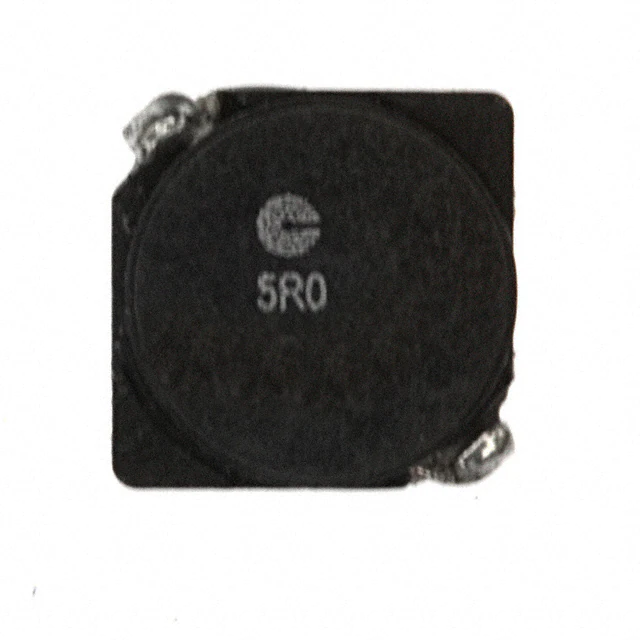

SD7030-5R0-RFIXED IND 4.9UH 3.2A 31 MOHM SMD Eaton - Electronics Division |
1,484 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.2 A | 2.4A | - | Shielded | 31mOhm Max | 4.9 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
HCM1103-2R2-RFIXED IND 2.2UH 13A 9 MOHM SMD Eaton - Electronics Division |
557 | - |
|
数据表 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 13 A | 16A | - | Shielded | 9mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SD52-101-RFIXED IND 100UH 390MA 1 OHM SMD Eaton - Electronics Division |
1,301 | - |
|
数据表 |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 390 mA | 350mA | - | Shielded | 1Ohm | 100 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
