固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLB1108-4-50TR-RFIXED IND 200NH 0.00028OHM SMD Eaton - Electronics Division |
366 | - |
|
数据表 |
CLB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | - | 25A | - | - | 0.28mOhm | 200 nH | - | - | Surface Mount | - | 1.417" L x 0.433" W (36.00mm x 11.00mm) | 4 Phase | -40°C ~ 125°C | 1 MHz | 0.315" (8.00mm) |
|
CTX100-1-52M-RFIXED IND 100UH 2.5A 106 MOHM TH Eaton - Electronics Division |
186 | - |
|
数据表 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 2.5 A | 2.4A | - | Unshielded | 106mOhm Max | 100 µH | - | - | Through Hole | - | 0.772" L x 0.634" W (19.60mm x 16.10mm) | - | -40°C ~ 75°C | 100 kHz | 0.776" (19.70mm) |
|

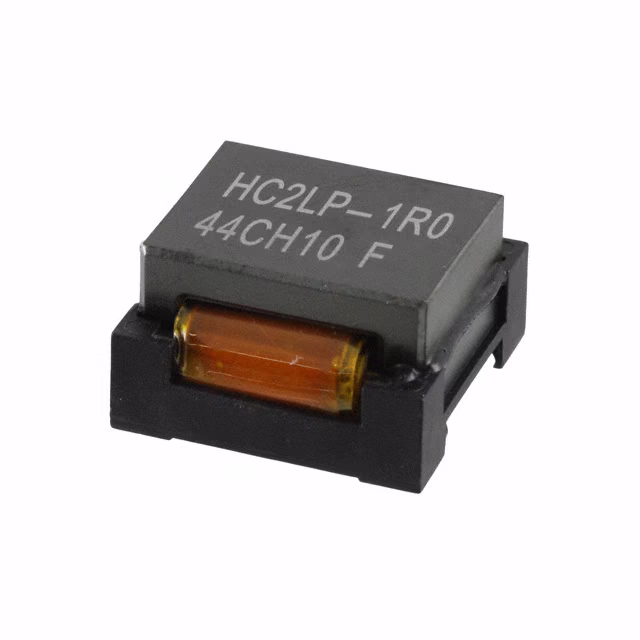

HC2LP-1R0-RFIXED IND 1UH 33A 1.3 MOHM SMD Eaton - Electronics Division |
169 | - |
|
数据表 |
HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 33 A | 42.5A | - | Unshielded | 1.3mOhm Max | 1 µH | - | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | - | -40°C ~ 85°C | 300 kHz | 0.440" (11.18mm) |
|
HC2LP-R68-RFIXED IND 680NH 52.9A 0.6MOHM SM Eaton - Electronics Division |
128 | - |
|
数据表 |
HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 52.9 A | 50A | - | Unshielded | 0.6mOhm Max | 680 nH | - | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | - | -40°C ~ 85°C | 300 kHz | 0.440" (11.18mm) |
|
HCM1A1707-100-RFIXED IND 10UH 12A 10MOHM SMD Eaton - Electronics Division |
313 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 12 A | 14A | - | Shielded | 10mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
HC3-1R0-RFIXED IND 1UH 78A 0.42 MOHM SMD Eaton - Electronics Division |
304 | - |
|
数据表 |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 78 A | 78A | - | Unshielded | 0.42mOhm Max | 1 µH | - | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | - | -40°C ~ 85°C | 300 kHz | 0.689" (17.50mm) |
|
CL1108-4-50TR-RFIXED IND 50NH 80A 0.00028OHM SM Eaton - Electronics Division |
475 | - |
|
数据表 |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 80 A | - | - | - | 0.28mOhm | 50 nH | - | - | Surface Mount | - | 1.417" L x 0.433" W (36.00mm x 11.00mm) | 4 Phase | -40°C ~ 125°C | 1 MHz | 0.315" (8.00mm) |
|
HC3-R50-RFIXED IND 500NH 78A 0.42MOHM SMD Eaton - Electronics Division |
1,153 | - |
|
数据表 |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 78 A | 120A | - | Unshielded | 0.42mOhm Max | 500 nH | - | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | - | -40°C ~ 85°C | 300 kHz | 0.709" (18.00mm) |
|

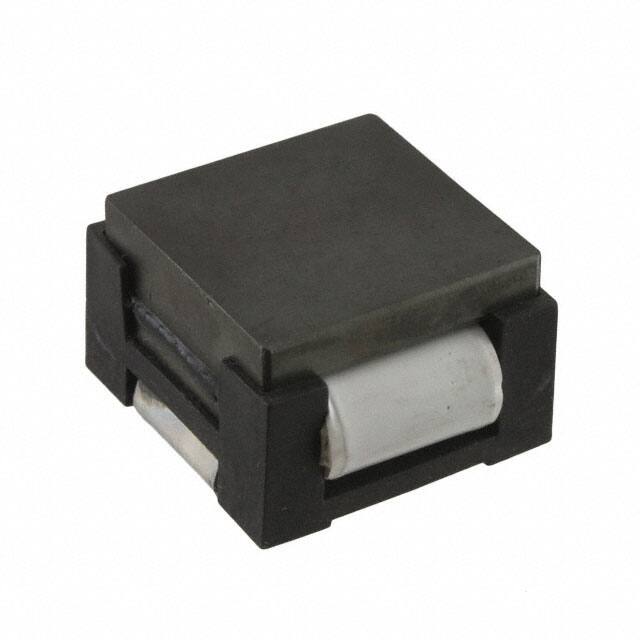

HC3-2R2-RFIXED IND 2.2UH 55.5A 0.7MOHM SM Eaton - Electronics Division |
8 | - |
|
数据表 |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 55.5 A | 60A | - | Unshielded | 0.7mOhm Max | 2.2 µH | - | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | - | -40°C ~ 85°C | 300 kHz | 0.689" (17.50mm) |
-,65-White-Field.jpg)
|

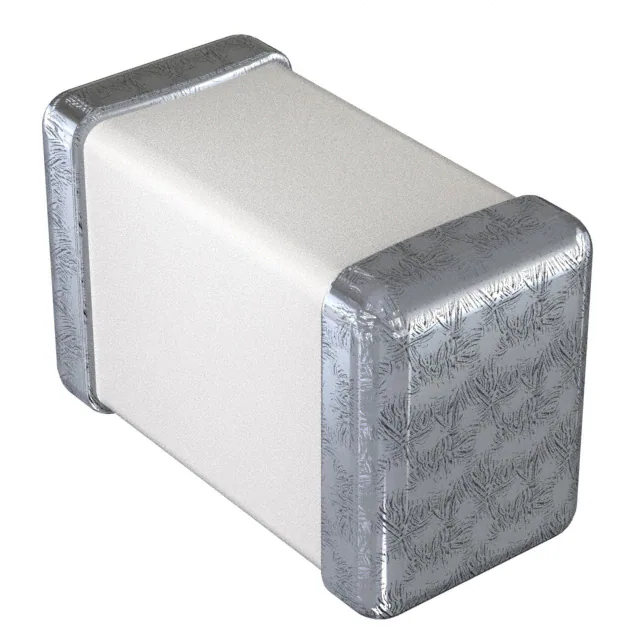

MCL1005-2R2-RFIXED IND 2.2NH 300MA 150MOHM SM Eaton - Electronics Division |
37,237 | - |
|
数据表 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±0.3nH | 300 mA | - | 0402 | Unshielded | 150mOhm Max | 2.2 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
