固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD25-150-RFIXED IND 15UH 1.67A 95.6MOHM SM Eaton - Electronics Division |
6,925 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.67 A | 1.08A | - | Shielded | 95.6mOhm | 15 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.098" (2.50mm) |
|
UP3B-330-RFIXED IND 33UH 2.4A 68.8MOHM SMD Eaton - Electronics Division |
320 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 3A | - | Unshielded | 68.8mOhm Max | 33 µH | - | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | - | -40°C ~ 85°C | 100 kHz | 0.268" (6.80mm) |
|
HCF1007-3R3-RFIXED IND 3.3UH 10A 7.5 MOHM SMD Eaton - Electronics Division |
15,355 | - |
|
数据表 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 14.5A | - | Unshielded | 7.5mOhm | 3.3 µH | - | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.262" (6.65mm) |
|

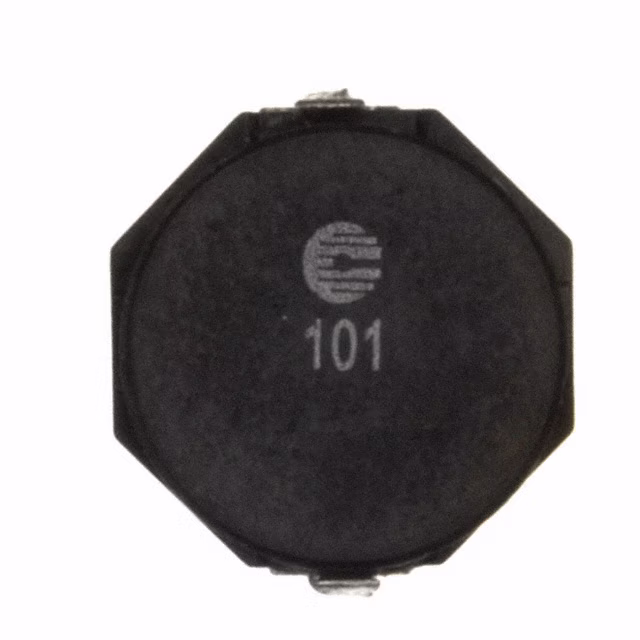

SD8328-101-RFIXED IND 100UH 800MA 430MOHM SM Eaton - Electronics Division |
3,329 | - |
|
数据表 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 800 mA | 800mA | - | Shielded | 430mOhm Max | 100 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD25-6R8-RFIXED IND 6.8UH 2.19A 55.6 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.19 A | 1.56A | - | Shielded | 55.6mOhm | 6.8 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.098" (2.50mm) |
|
HCV1206-3R0-RFIXED IND 3UH 11A 7.4 MOHM SMD Eaton - Electronics Division |
161 | - |
|
数据表 |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 11 A | 13A | - | Unshielded | 7.4mOhm | 3 µH | - | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
HCF1007-4R7-RFIXED IND 4.7UH 9.4A 8.65MOHM SM Eaton - Electronics Division |
15,775 | - |
|
数据表 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 9.4 A | 12A | - | Unshielded | 8.65mOhm | 4.7 µH | - | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.262" (6.65mm) |
|
EXL1V1010-4R7-RINDUCTOR MOLDED 4.7UH 21.4A Eaton - Electronics Division |
315 | - |
|
数据表 |
EXL1V1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 24 A | 21.4A | - | Shielded | 5.7mOhm Max | 4.7 µH | - | 18MHz | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
UP4B-151-RFIXED IND 150UH 1.7A 239.2 MOHM Eaton - Electronics Division |
5,704 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.7 A | 3A | - | Unshielded | 239.2mOhm Max | 150 µH | - | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.310" (7.87mm) |
|

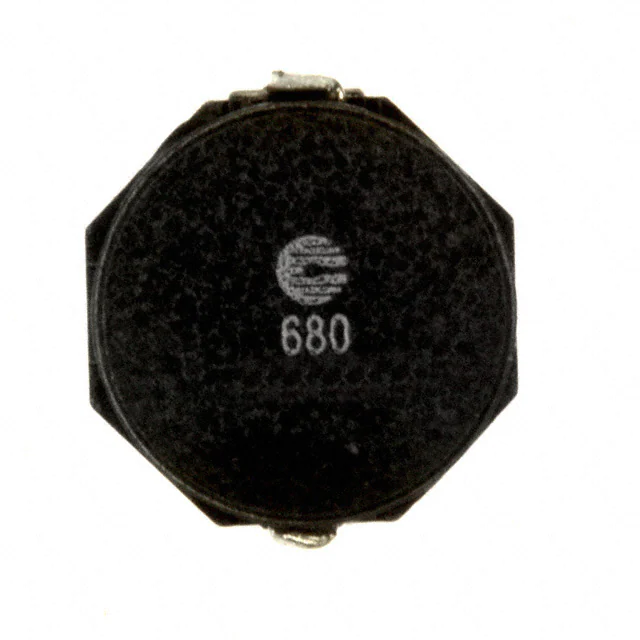

SD8350-680-RFIXED IND 68UH 1A 240 MOHM SMD Eaton - Electronics Division |
3,913 | - |
|
数据表 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 1.5A | - | Shielded | 240mOhm Max | 68 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
