固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC1-3R6-RFIXED IND 3.6UH 16.76A 3.5 MOHM Eaton - Electronics Division |
1,446 | - |
|
数据表 |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 16.76 A | 13.4A | - | Unshielded | 3.5mOhm Max | 3.6 µH | - | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - | -40°C ~ 125°C | 300 kHz | 0.394" (10.00mm) |
|
HC1-1R7-RFIXED IND 1.7UH 22.3A 2 MOHM SMD Eaton - Electronics Division |
5,095 | - |
|
数据表 |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 22.3 A | 22.2A | - | Unshielded | 2mOhm Max | 1.7 µH | - | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | - | -40°C ~ 125°C | 300 kHz | 0.394" (10.00mm) |
|
HCM1A1305-6R8-RFIXED IND 6.8UH 8.3A 15MOHM SMD Eaton - Electronics Division |
252 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 8.3 A | 13A | - | Shielded | 15mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
HCM1A1307-120-RFIXED IND 12UH 6.1A 19 MOHM SMD Eaton - Electronics Division |
747 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 6.1 A | 11A | - | Shielded | 19mOhm Max | 12 µH | - | - | Surface Mount | AEC-Q200 | 0.539" L x 0.512" W (13.70mm x 13.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
HCM1A1307-220-RFIXED IND 22UH 4.8A 35 MOHM SMD Eaton - Electronics Division |
250 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 4.8 A | 8A | - | Shielded | 35mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.539" L x 0.512" W (13.70mm x 13.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
HCV1206-1R0-RFIXED IND 1UH 14A 4.6 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 14 A | 24.5A | - | Unshielded | 4.6mOhm | 1 µH | - | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|

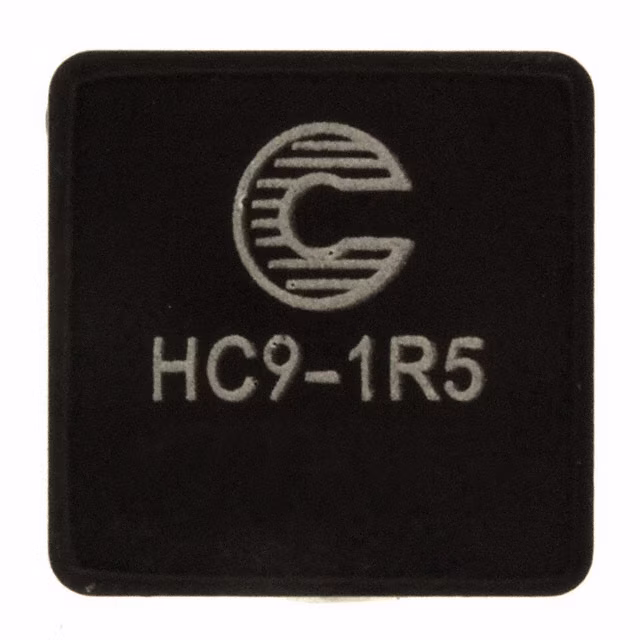

HC9-1R5-RFIXED IND 1.5UH 21A 2.27MOHM SMD Eaton - Electronics Division |
483 | - |
|
数据表 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 21 A | 32A | - | Unshielded | 2.27mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.528" L x 0.516" W (13.40mm x 13.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.295" (7.50mm) |
|

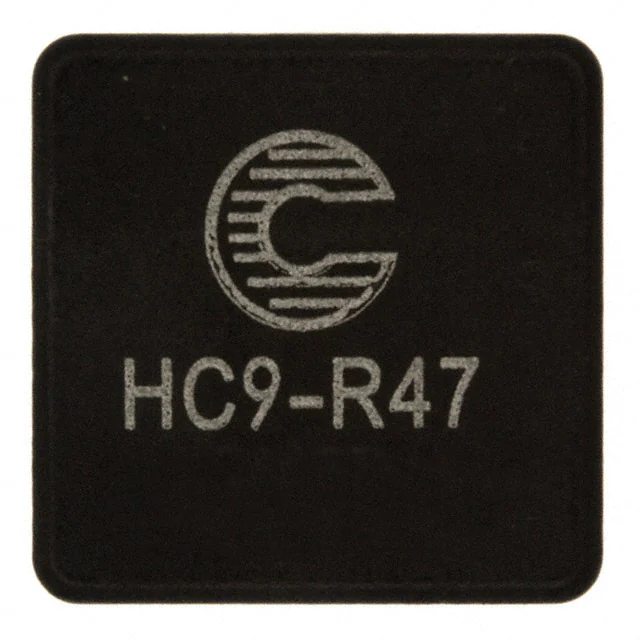

HC9-R47-RFIXED IND 470NH 33.7A 0.88 MOHM Eaton - Electronics Division |
827 | - |
|
数据表 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 33.7 A | 57A | - | Unshielded | 0.88mOhm Max | 470 nH | - | - | Surface Mount | - | 0.528" L x 0.516" W (13.40mm x 13.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.295" (7.50mm) |
|

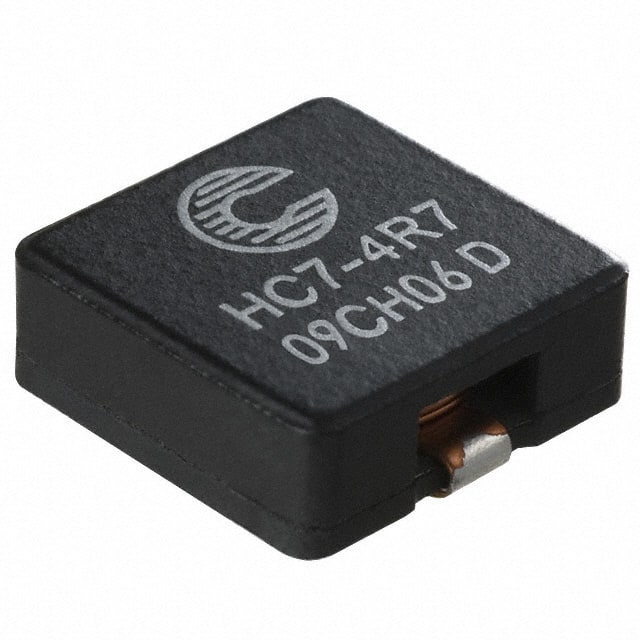

HC7-4R7-RFIXED IND 4.7UH 9.8A 9 MOHM SMD Eaton - Electronics Division |
139 | - |
|
数据表 |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 9.8 A | 17.3A | - | Unshielded | 9mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.217" (5.50mm) |
|
HC7-3R9-RFIXED IND 3.9UH 10.4A 7.9MOHM SM Eaton - Electronics Division |
388 | - |
|
数据表 |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 10.4 A | 20A | - | Unshielded | 7.9mOhm Max | 3.9 µH | - | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.217" (5.50mm) |
