固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLBU9664100LT-R12LFIXED IND 120NH 75A 0.125MOHM SM |
926 | - |
|
数据表 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 75 A | 90A | - | Unshielded | 0.125mOhm | 120 nH | - | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
744762215AFIXED IND 150NH 800MA 220MOHM SM |
3,186 | - |
|
数据表 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 800 mA | - | 1008 (2520 Metric) | Unshielded | 220mOhm Max | 150 nH | 45 @ 100MHz | 880MHz | Surface Mount | AEC-Q200 | 0.102" L x 0.083" W (2.60mm x 2.10mm) | - | -40°C ~ 125°C | 25 MHz | 0.075" (1.90mm) |
|
PG0077.282NLTFIXED IND 2.8UH 19A 4.2 MOHM SMD |
630 | - |
|
数据表 |
PG0077NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 19 A | 20A | - | Unshielded | 4.2mOhm Max | 2.8 µH | - | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | - | -40°C ~ 95°C | 100 kHz | 0.256" (6.50mm) |
|
LQH32PN220MNCLFIXED IND 22UH 550MA 822MOHM SMD |
3,075 | - |
|
数据表 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 550 mA | 650mA | 1210 (3225 Metric) | Shielded | 822mOhm Max | 22 µH | - | 20MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 1 MHz | 0.087" (2.20mm) |
|
|
LQH3NPZ330MMELFIXED IND 33UH 460MA 660MOHM SMD |
3,042 | - |
|
数据表 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 760 mA | - | 1212 (3030 Metric) | Shielded | 660mOhm Max | 33 µH | - | 8MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.059" (1.50mm) |
|
MPX1D1250L1R0FIXED IND 1UH 28.8A 2.6 MOHM SMD |
497 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 28.8 A | 43A | - | Shielded | 2.6mOhm Max | 1 µH | - | 34MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
.jpg)
|
744760310AFIXED IND 1UH 180MA 2.13 OHM SMD |
2,003 | - |
|
数据表 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 180 mA | - | 0805 | Unshielded | 2.13Ohm Max | 1 µH | 35 @ 50MHz | 200MHz | Surface Mount | - | 0.090" L x 0.067" W (2.29mm x 1.70mm) | - | -40°C ~ 85°C | 25.2 MHz | 0.058" (1.48mm) |
|
|
LQH3NPZ101MMELFIXED IND 100UH 270MA 1.908 OHM |
2,000 | - |
|
数据表 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 430 mA | - | 1212 (3030 Metric) | Shielded | 1.908Ohm Max | 100 µH | - | 3MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.059" (1.50mm) |
|
|
LQH32PN4R7NNCLFIXED IND 4.7UH 1.2A 186MOHM SMD |
1,865 | - |
|
数据表 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.2 A | 1.6A | 1210 (3225 Metric) | Shielded | 186mOhm Max | 4.7 µH | - | 40MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 1 MHz | 0.087" (2.20mm) |
|
|
LQH32PB100MN0LFIXED IND 10UH 700MA 456MOHM SMD |
1,837 | - |
|
数据表 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 750mA | 1210 | Shielded | 456mOhm Max | 10 µH | - | 30MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.067" (1.70mm) |
|
B82144F2222K000FIXED IND 2.2UH 3.65A 0.055OHM |
1,793 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.65 A | 6A | - | Unshielded | 55mOhm Max | 2.2 µH | 60 @ 2.52MHz | 140MHz | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
HCM1103-3R3-RFIXED IND 3.3UH 9A 16 MOHM SMD |
146 | - |
|
数据表 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 9 A | 14A | - | Shielded | 16mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
ASPI-6045T-220M-TIND 22UH 1.8A 116M |
1,499 | - |
|
数据表 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.8 A | 2.05A | - | Shielded | 116mOhm Max | 22 µH | - | 10MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
SRN4018-6R8MFIXED IND 6.8UH 1.5A 118MOHM SMD |
126,101 | - |
|
数据表 |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.6A | - | Shielded | 118mOhm Max | 6.8 µH | 9 @ 7.96MHz | 30MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|

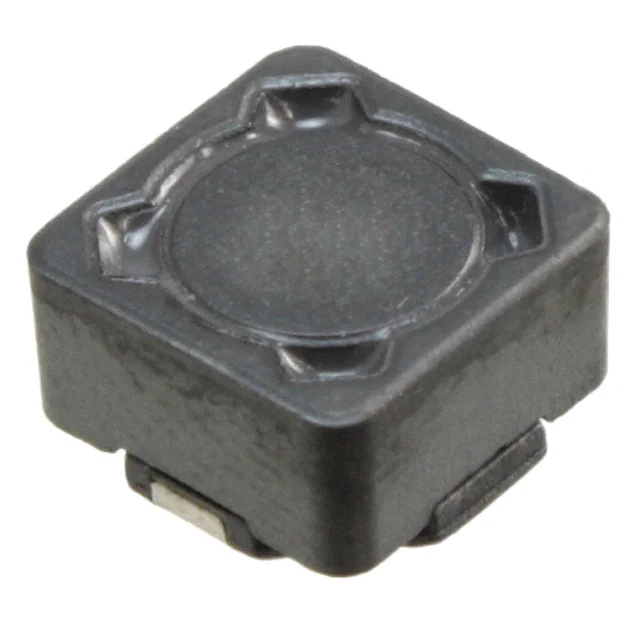

7687779221FIXED IND 220UH 560MA 1.3OHM SMD |
3,904 | - |
|
数据表 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 560 mA | 500mA | - | Shielded | 1.3Ohm Max | 220 µH | - | 4.9MHz | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SRN4018-470MFIXED IND 47UH 600MA 780MOHM SMD |
79,447 | - |
|
数据表 |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 620mA | - | Shielded | 780mOhm Max | 47 µH | 11 @ 2.52MHz | 10MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
SRN4018-680MFIXED IND 68UH 500MA 1.128OHM SM |
72,443 | - |
|
数据表 |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 500mA | - | Shielded | 1.128Ohm Max | 68 µH | 11 @ 2.52MHz | 8MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
SPM10054T-R68M-HZFIXED IND 680NH 32A 2.09MOHM SMD |
356 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | ±20% | 32 A | 21.7A | - | Shielded | 2.09mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.421" L x 0.394" W (10.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.213" (5.40mm) |
|

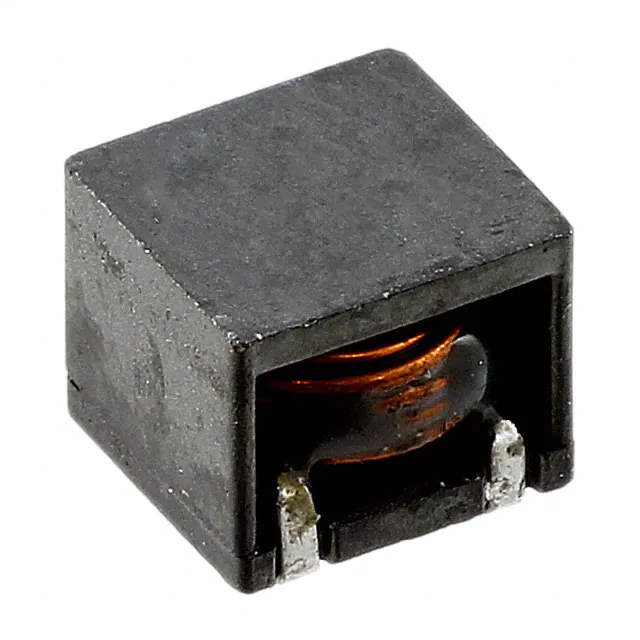

PG0871.461NLTFIXED IND 460NH 24A 1.5 MOHM SMD |
971 | - |
|
数据表 |
PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 24 A | 28A | - | Shielded | 1.5mOhm | 460 nH | - | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.252" (6.40mm) |
|
SLF12575T-6R8N5R9-HFIXED IND 6.8UH 5.9A 15.72 MOHM |
803 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 5.9 A | 7.2A | - | Shielded | 15.72mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.309" (7.85mm) |
