固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784771082FIXED IND 8.2UH 5.05A 24MOHM SMD |
462 | - |
|
数据表 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 5.05 A | 5.5A | 1260 | Shielded | 24mOhm Max | 8.2 µH | - | 25.2MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.248" (6.30mm) |
|
744776182FIXED IND 82UH 1.11A 250MOHM SMD |
455 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.11 A | 1.17A | - | Unshielded | 250mOhm Max | 82 µH | - | 8MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
744776256FIXED IND 560UH 390MA 1.9OHM SMD |
450 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 390 mA | 470mA | - | Unshielded | 1.9Ohm Max | 560 µH | - | 3MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
744776112FIXED IND 12UH 2.72A 70 MOHM SMD |
441 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.72 A | 3.15A | - | Unshielded | 70mOhm Max | 12 µH | - | 23MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
784771022FIXED IND 2.2UH 7.2A 12.5MOHM SM |
433 | - |
|
数据表 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 7.2 A | 10.5A | 1260 | Shielded | 12.5mOhm Max | 2.2 µH | - | 82.7MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.248" (6.30mm) |
|
|
744776239FIXED IND 390UH 490MA 1.3OHM SMD |
412 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 490 mA | 540mA | - | Unshielded | 1.3Ohm Max | 390 µH | - | 3.9MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
784776118FIXED IND 18UH 2.36A 90 MOHM SMD |
398 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.36 A | 2.43A | 1054 | Unshielded | 90mOhm Max | 18 µH | - | 18MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
744776268FIXED IND 680UH 360MA 2.25OHM SM |
368 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 360 mA | 430mA | - | Unshielded | 2.25Ohm Max | 680 µH | - | 2.7MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|

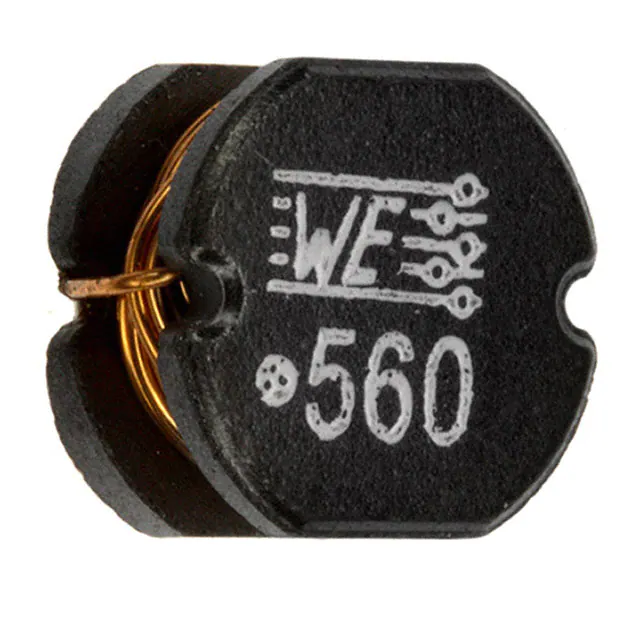

744776156FIXED IND 56UH 1.36A 190MOHM SMD |
358 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.36 A | 1.53A | - | Unshielded | 190mOhm Max | 56 µH | - | 10MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|

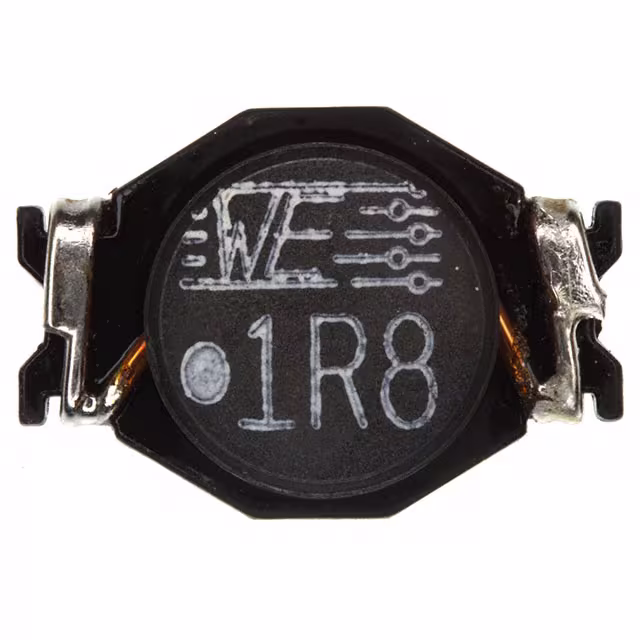

74457018FIXED IND 1.8UH 13A 5 MOHM SMD |
336 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 13 A | 25A | - | Unshielded | 5mOhm Max | 1.8 µH | - | 50MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
784771221FIXED IND 220UH 990MA 348MOHM SM |
334 | - |
|
数据表 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 990 mA | 1.1A | 1260 | Shielded | 348mOhm Max | 220 µH | - | 3.9MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.248" (6.30mm) |
|
|
784771010FIXED IND 1UH 9A 8.5 MOHM SMD |
332 | - |
|
数据表 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 9 A | 16.5A | 1260 | Shielded | 8.5mOhm Max | 1 µH | - | 139.4MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.248" (6.30mm) |
|

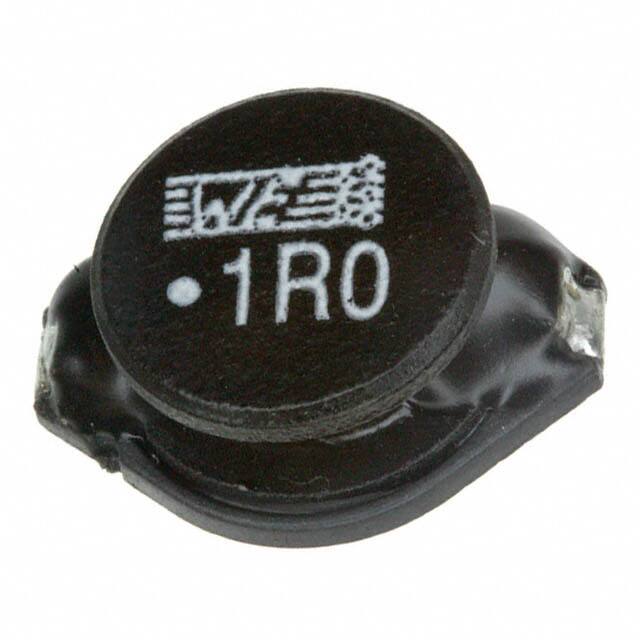

74458001FIXED IND 1UH 8.6A 9 MOHM SMD |
296 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 8.6 A | 25A | - | Unshielded | 9mOhm Max | 1 µH | - | 70MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 125°C | 100 kHz | 0.280" (7.11mm) |
|

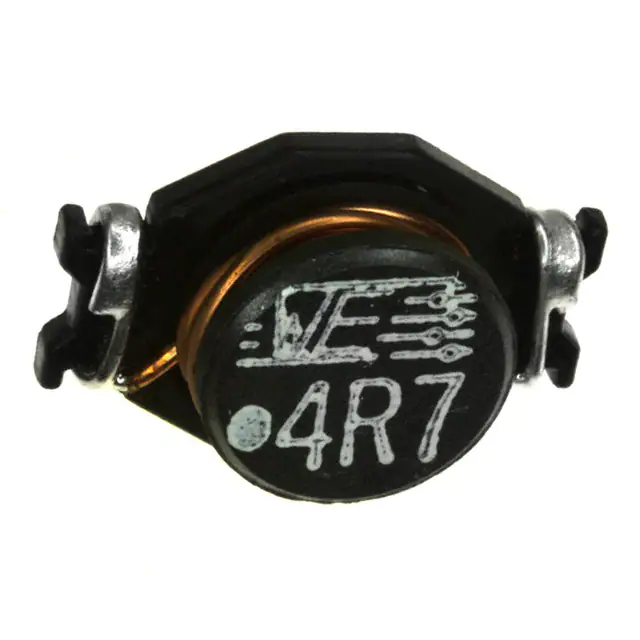

74457047FIXED IND 4.7UH 8.5A 11 MOHM SMD |
276 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 8.5 A | 15A | - | Unshielded | 11mOhm Max | 4.7 µH | - | 33MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
74457147FIXED IND 47UH 2.8A 109 MOHM SMD |
264 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | 5A | - | Unshielded | 109mOhm Max | 47 µH | - | 9.2MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
74451215FIXED IND 150UH 260MA 0.59OHM SM |
500 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 260 mA | 50mA | - | Shielded | 590mOhm Max | 150 µH | - | 6MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.115" (2.92mm) |
|
|
784776168FIXED IND 68UH 1.19A 220MOHM SMD |
250 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.19 A | 1.49A | 1054 | Unshielded | 220mOhm Max | 68 µH | - | 8MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
CSBL1050-150MSMD HIGH CURRENT POWER INDUCTOR |
400 | - |
|
数据表 |
CSBL1050 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | ±20% | 5.5 A | 7A | - | Shielded | 29.8mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.480" L x 0.402" W (12.20mm x 10.20mm) | - | -50°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
|

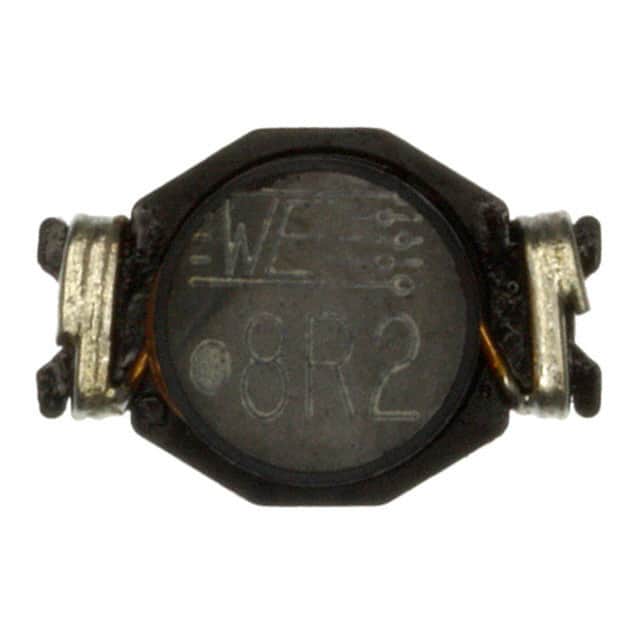

74457082FIXED IND 8.2UH 7A 19 MOHM SMD |
245 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7 A | 11A | - | Unshielded | 19mOhm Max | 8.2 µH | - | 23MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
SBCP-80HY2R2HFIXED IND 2.2UH 4A 30 MOHM TH |
342 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4 A | 11.7A | - | Unshielded | 30mOhm Max | 2.2 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
