固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM10054T-150M-HZFIXED IND 15UH 8.6A 33.93MOHM SM |
720 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | ±20% | 8.6 A | 3.6A | - | Shielded | 33.93mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.421" L x 0.394" W (10.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.213" (5.40mm) |
|
FP1308-R44-RFIXED IND 440NH 68A 0.24MOHM SMD |
398 | - |
|
数据表 |
FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 68 A | 32A | - | Unshielded | 0.24mOhm Max | 440 nH | - | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
SLF12575T-3R9N6R7-HFIXED IND 3.9UH 6.7A 12.48 MOHM |
383 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 6.7 A | 9A | - | Shielded | 12.48mOhm Max | 3.9 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.309" (7.85mm) |
|
IHLP5050FDER3R3MA1IHLP-5050FD-A1 3.3 20% ER E3 |
125 | - |
|
数据表 |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 18 A | 35A | - | Shielded | 6.8mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.525" L x 0.508" W (13.34mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
BSCQ000603031N6S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 510 mA | - | 0201 | Unshielded | 190mOhm Max | 1.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603031N9S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 620 mA | - | 0201 | Unshielded | 130mOhm Max | 1.9 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603031N9CHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | - | 620mA | 0201 | Unshielded | 130mOhm Max | 1.9 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
FP1005R3-R22-RFIXED IND 220NH 45A 0.55MOHM SMD |
0 | - |
|
数据表 |
FLAT-PAC, FP1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 45 A | 33A | - | Unshielded | 0.55mOhm | 220 nH | - | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.195" (4.95mm) |
|
RLF12560T-4R2N100FIXED IND 4.2UH 10A 8.88MOHM SMD |
825 | - |
|
数据表 |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 10 A | 10.2A | - | Shielded | 8.88mOhm Max | 4.2 µH | - | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.236" (6.00mm) |
|
CDEP15D90T150NP-1R0MC-100FIXED IND 1UH 24.5A 1.75MOHM SMD |
149 | - |
|
数据表 |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 24.5 A | 51.6A | - | Shielded | 1.75mOhm | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.610" L x 0.610" W (15.50mm x 15.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.394" (10.00mm) |
|
PM2202.561NLTFIXED IND 560NH 13.9A 9.54 MOHM |
2,978 | - |
|
数据表 |
PM2202.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 13.9 A | 19A | SMD | Unshielded | 9.54mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.083" (2.10mm) |
|
|
PM2202.471NLTFIXED IND 470NH 14.1A 8.05 MOHM |
2,977 | - |
|
数据表 |
PM2202.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 14.1 A | 22A | SMD | Unshielded | 8.05mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.083" (2.10mm) |
|
|
PM2202.122NLTFIXED IND 1.2UH 9.4A 16.3MOHM SM |
2,876 | - |
|
数据表 |
PM2202.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9.4 A | 14A | SMD | Unshielded | 16.3mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.083" (2.10mm) |
|
CSAD0880-150MSMD MOLDING POWER CHOKE |
694 | - |
|
数据表 |
CSAD0880 | 4-SMD, J-Lead | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 4.5 A | 6.6A | 4-SMD | Shielded | 61mOhm Max | 15 µH | - | - | Surface Mount | - | 0.378" L x 0.378" W (9.60mm x 9.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.374" (9.50mm) |
|
RLF7045T-220M1R4-DFIXED IND 22UH 1.4A 98.4MOHM SMD |
1,149 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.5A | - | Shielded | 98.4mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
RLF7045T-121MR55-DFIXED IND 120UH 550MA 480MOHM SM |
388 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 550 mA | 800mA | - | Shielded | 480mOhm Max | 120 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|

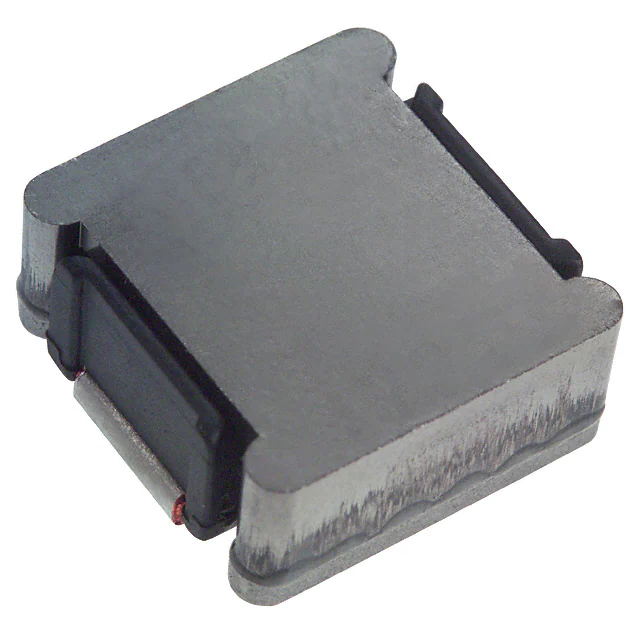

ETQ-P6F1R8BFAFIXED IND 1.71UH 14A 3.3MOHM SMD |
165 | - |
|
数据表 |
PCC-D126F (N6B) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±20% | 14 A | - | - | Shielded | 3.3mOhm Max | 1.71 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | - | 100 kHz | 0.224" (5.70mm) |
|
FP3-1R5-RFIXED IND 1.5UH 5.78A 13.1 MOHM |
0 | - |
|
数据表 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 5.78 A | 8A | - | Unshielded | 13.1mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|

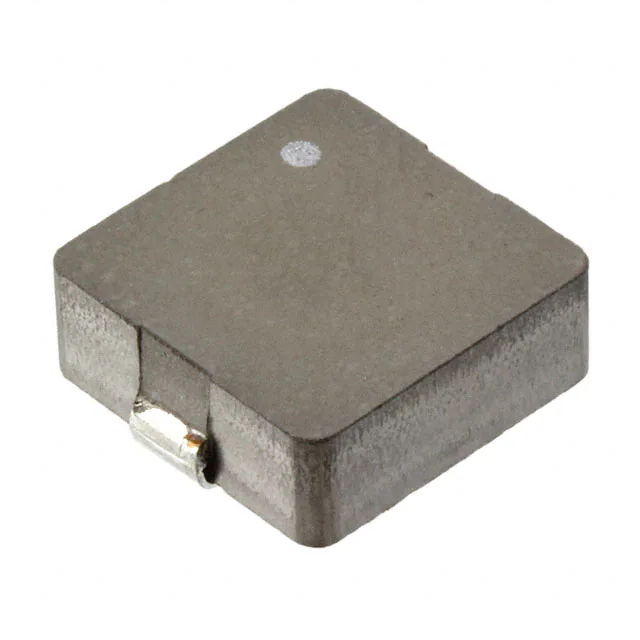

MPC1260LR45FIXED IND 450NH SMD |
0 | - |
|
数据表 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | - | Ferrite | ±20% | - | - | - | Shielded | - | 450 nH | - | - | Surface Mount | - | - | - | -20°C ~ 120°C | 100 kHz | - |
|
CSBL1050-100MSMD HIGH CURRENT POWER INDUCTOR |
695 | - |
|
数据表 |
CSBL1050 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 7.1 A | 8.5A | - | Shielded | 18.9mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.441" L x 0.402" W (11.20mm x 10.20mm) | - | -50°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
