固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

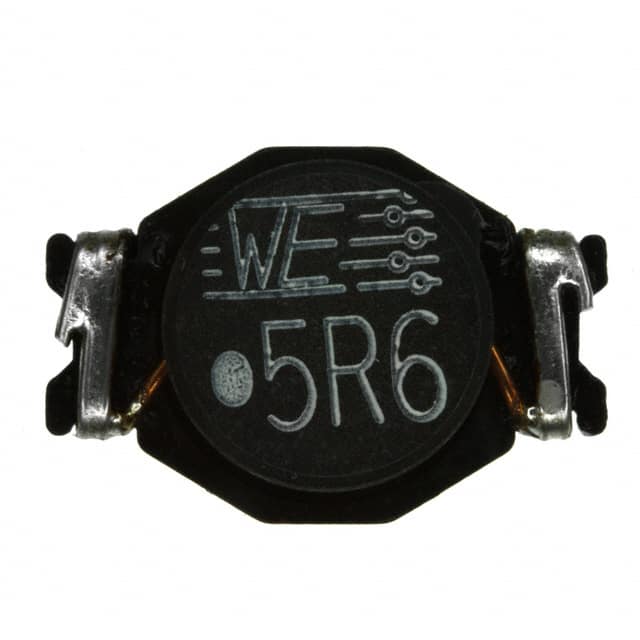

74457056FIXED IND 5.6UH 7.8A 15 MOHM SMD |
242 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.8 A | 14A | - | Unshielded | 15mOhm Max | 5.6 µH | - | 27MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
UP3B-101-RFIXED IND 100UH 1.4A 205.3 MOHM |
198 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.8A | - | Unshielded | 205.3mOhm Max | 100 µH | - | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | - | -40°C ~ 85°C | 100 kHz | 0.268" (6.80mm) |
|
74458168FIXED IND 68UH 2.3A 130 MOHM SMD |
226 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.3 A | 3.6A | - | Unshielded | 130mOhm Max | 68 µH | - | 7.2MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 125°C | 100 kHz | 0.280" (7.11mm) |
|
SLF12575T-1R2N8R2-HFIXED IND 1.2UH 8.2A 5.1MOHM SMD |
184 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 8.2 A | 13A | - | Shielded | 5.1mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.309" (7.85mm) |
|
74457182FIXED IND 82UH 2.2A 173 MOHM SMD |
220 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.2 A | 3.5A | - | Unshielded | 173mOhm Max | 82 µH | - | 7.2MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|

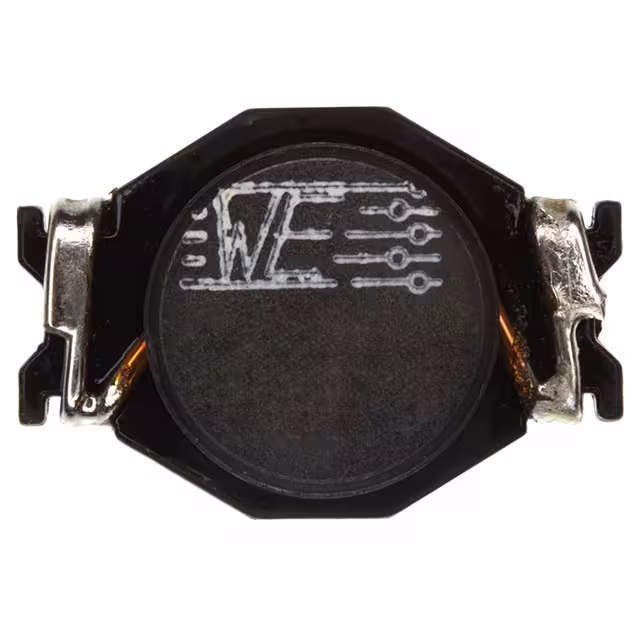

74457027FIXED IND 2.7UH 10A 8 MOHM SMD |
199 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 20A | - | Unshielded | 8mOhm Max | 2.7 µH | - | 44MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
SLF12575T-5R6N6R3-HFIXED IND 5.6UH 6.3A 13.92 MOHM |
167 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 6.3 A | 7.8A | - | Shielded | 13.92mOhm Max | 5.6 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.309" (7.85mm) |
|
CMLS136E-1R5MSFIXED IND 1.5UH 28A 2.6MOHM SMD |
470 | - |
|
数据表 |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 28 A | 48A | - | Shielded | 2.6mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|

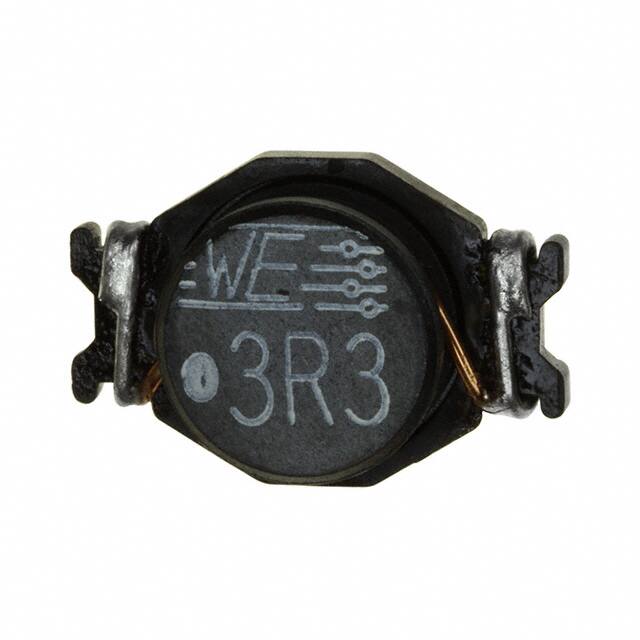

74457033FIXED IND 3.3UH 9A 9 MOHM SMD |
198 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 9 A | 17A | - | Unshielded | 9mOhm Max | 3.3 µH | - | 39MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
CDRH12D77BT150NP-3R3NCFIXED IND 3.3UH 11.2A 9.62 MOHM |
207 | - |
|
数据表 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 11.2 A | 16.7A | - | Shielded | 9.62mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.516" L x 0.504" W (13.10mm x 12.80mm) | - | -55°C ~ 150°C | 100 kHz | 0.315" (8.00mm) |
|
HCM1104-R90-RFIXED IND 900NH 22A 2.5 MOHM SMD |
186 | - |
|
数据表 |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 22 A | 28A | - | Shielded | 2.5mOhm Max | 900 nH | - | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
SBCP-14HY4R7BFIXED IND 4.7UH 3.6A 30 MOHM TH |
171 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.6 A | 14.36A | - | Unshielded | 30mOhm Max | 4.7 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
MPLC1040L3R3FIXED IND 3.3UH 8.8A 14 MOHM SMD |
0 | - |
|
数据表 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 8.8 A | 9.3A | - | Shielded | 14mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|
CSAD0880-100MSMD MOLDING POWER CHOKE |
697 | - |
|
数据表 |
CSAD0880 | 4-SMD, J-Lead | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 5.3 A | 8A | 4-SMD | Shielded | 34.3mOhm Max | 10 µH | - | - | Surface Mount | - | 0.378" L x 0.378" W (9.60mm x 9.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.374" (9.50mm) |
|
IFSC1515AHER470M01FIXED IND 47UH 800MA 594MOHM SMD |
13,576 | - |
|
数据表 |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 800 mA | 560mA | - | Shielded | 594mOhm Max | 47 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.075" (1.90mm) |
|
|
BSPQ000402032N1C00FIXED IND 2.1NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 650 mA | - | 1005 | Unshielded | 100mOhm Max | 2.1 nH | 14 @ 500MHz | 10.1GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
TYA40202R2M-10FIXED IND 2.2UH 4A 56 MOHM SMD |
13,409 | - |
|
数据表 |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4 A | 6A | - | Shielded | 56mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
BSPQ000402032N9C00FIXED IND 2.9NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 2.9 nH | 14 @ 500MHz | 8.8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
TYS3012101M-10FIXED IND 100UH 250MA 2.86OHM SM |
10,329 | - |
|
数据表 |
TYS3012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 250 mA | 210mA | 3012 | Shielded | 3.718Ohm Max | 100 µH | - | 12MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
BSPQ000402031N2C00FIXED IND 1.2NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 800 mA | - | 1005 | Unshielded | 60mOhm Max | 1.2 nH | 14 @ 500MHz | 12.8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
