固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSCQ000603031N5C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 600 mA | - | 0201 | Unshielded | 150mOhm Max | 1.5 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
LQH3NPZ4R7MMELFIXED IND 4.7UH 1A 120 MOHM SMD |
6,955 | - |
|
数据表 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.7 A | - | 1212 (3030 Metric) | Shielded | 120mOhm Max | 4.7 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.059" (1.50mm) |
|
|
BSCQ000603031N6B00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 510 mA | - | 0201 | Unshielded | 190mOhm Max | 1.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
VLCF4018T-2R2N1R4-2FIXED IND 2.2UH 1.44A 60MOHM SMD |
6,802 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.44 A | 1.44A | - | Shielded | 60mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
|
|
BSCQ000603031N9C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 620 mA | - | 0201 | Unshielded | 130mOhm Max | 1.9 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQH3NPZ6R8MMELFIXED IND 6.8UH 900MA 168MOHM SM |
5,657 | - |
|
数据表 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.45 A | - | 1212 (3030 Metric) | Shielded | 168mOhm Max | 6.8 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.059" (1.50mm) |
|
744776282FIXED IND 820UH 320MA 2.55OHM SM |
184 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | 410mA | - | Unshielded | 2.55Ohm Max | 820 µH | - | 2.5MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
784776047FIXED IND 4.7UH 5A 14 MOHM SMD |
152 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5 A | 6A | 1054 | Unshielded | 14mOhm Max | 4.7 µH | - | 43MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
74458002FIXED IND 2.2UH 7.1A 14 MOHM SMD |
127 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.1 A | 20.3A | - | Unshielded | 14mOhm Max | 2.2 µH | - | 42MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 125°C | 100 kHz | 0.280" (7.11mm) |
|
74457012FIXED IND 1.2UH 15A 4 MOHM SMD |
125 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 15 A | 30A | - | Unshielded | 4mOhm Max | 1.2 µH | - | 6.4MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
|
784776068FIXED IND 6.8UH 4.4A 19 MOHM SMD |
104 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.4 A | 5A | 1054 | Unshielded | 19mOhm Max | 6.8 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|

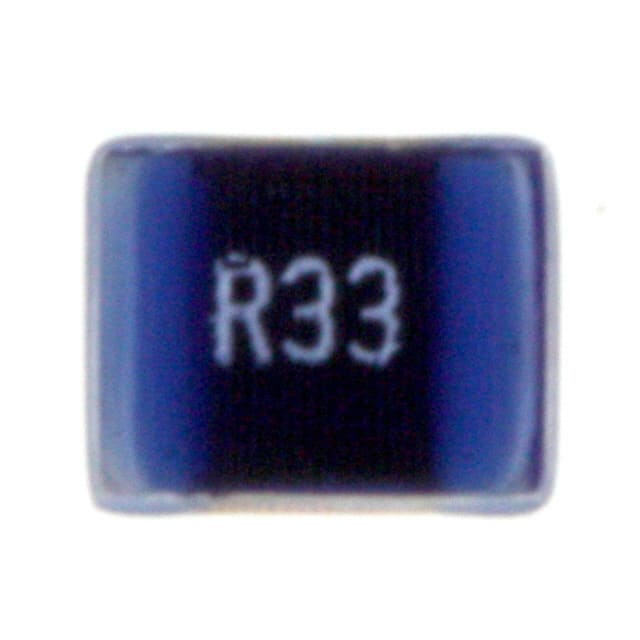

744762233AFIXED IND 330NH 500MA 900MOHM SM |
5,401 | - |
|
数据表 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 500 mA | - | 1008 (2520 Metric) | Unshielded | 900mOhm Max | 330 nH | 45 @ 100MHz | 570MHz | Surface Mount | AEC-Q200 | 0.102" L x 0.083" W (2.60mm x 2.10mm) | - | -40°C ~ 125°C | 25 MHz | 0.075" (1.90mm) |
|
SD25-221-RFIXED IND 220UH 446MA 1.34OHM SM |
2,325 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 446 mA | 268mA | - | Shielded | 1.34Ohm | 220 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.098" (2.50mm) |
|
CSAD0880-220MSMD MOLDING POWER CHOKE |
688 | - |
|
数据表 |
CSAD0880 | 4-SMD, J-Lead | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 3.5 A | 5A | 4-SMD | Shielded | 98mOhm Max | 22 µH | - | - | Surface Mount | - | 0.378" L x 0.378" W (9.60mm x 9.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.374" (9.50mm) |
|
FP1007R1-R12-RFIXED IND 120NH 60A 0.29MOHM SMD |
2,050 | - |
|
数据表 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 60 A | 81A | - | Unshielded | 0.29mOhm | 120 nH | - | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
LQH3NPZ470MMELFIXED IND 47UH 380MA 984MOHM SMD |
4,930 | - |
|
数据表 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 610 mA | - | 1212 (3030 Metric) | Shielded | 984mOhm Max | 47 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.059" (1.50mm) |
|
|
LQH32PN100MNCLFIXED IND 10UH 900MA 354MOHM SMD |
4,687 | - |
|
数据表 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 1A | 1210 (3225 Metric) | Shielded | 354mOhm Max | 10 µH | - | 30MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 1 MHz | 0.087" (2.20mm) |
|
PA2729.333NLFIXED IND 32.9UH 6.7A 18.5 MOHM |
1,047 | - |
|
数据表 |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | ±15% | 6.7 A | 8.4A | - | Shielded | 18.5mOhm Max | 32.9 µH | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | - | -55°C ~ 130°C | - | 0.480" (12.20mm) |
|

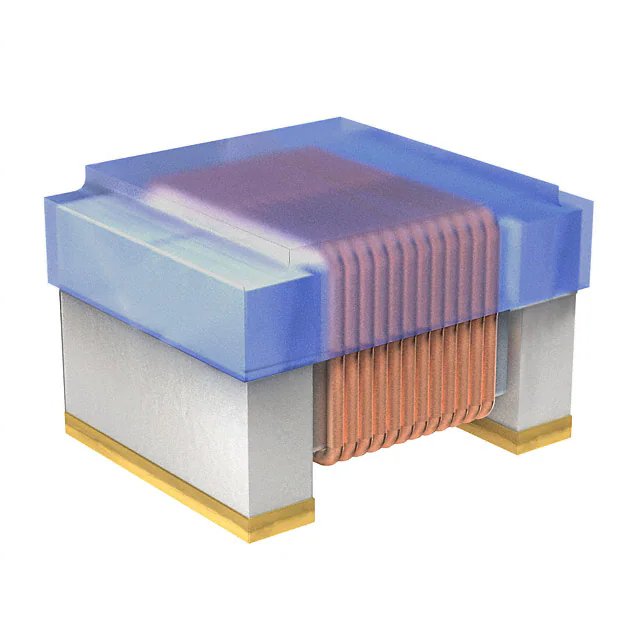

744758327AFIXED IND 2.7UH 520MA 1.1OHM SMD |
4,265 | - |
|
数据表 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 520 mA | - | 1008 (2520 Metric) | Unshielded | 1.1Ohm Max | 2.7 µH | 20 @ 7.96MHz | 135MHz | Surface Mount | - | 0.102" L x 0.083" W (2.60mm x 2.10mm) | - | -40°C ~ 85°C | 7.96 MHz | 0.075" (1.90mm) |
.jpg)
|
B82422T1103K000FIXED IND 10UH 150MA 2.1 OHM SMD |
4,027 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 150 mA | - | 1210 (3225 Metric) | Unshielded | 2.1Ohm Max | 10 µH | 27 @ 2.52MHz | 30MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 2.52 MHz | 0.083" (2.10mm) |
