固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

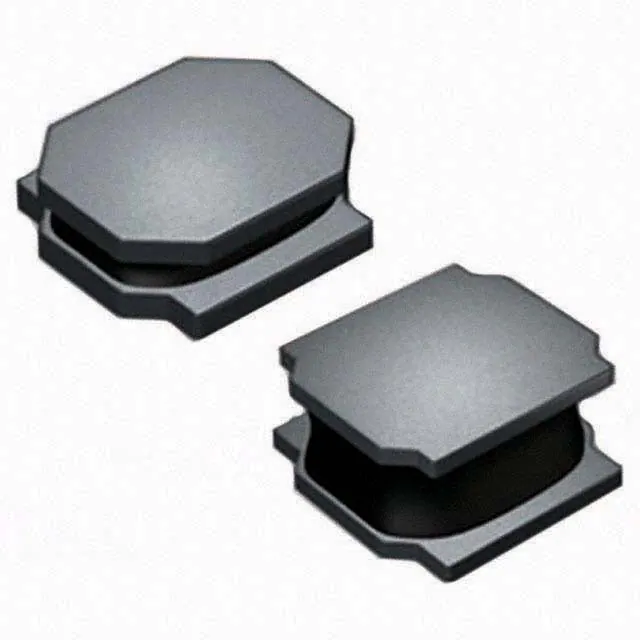

NRS8030T4R7MJGJFIXED IND 4.7UH 4A 28.6 MOHM SMD |
6,726 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4 A | 3.6A | - | Shielded | 28.6mOhm Max | 4.7 µH | - | 40MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
LQW21HNR56J00LFIXED IND 560NH 150MA 1.43OHM SM |
5,649 | - |
|
数据表 |
LQW21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±5% | 150 mA | - | 0805 (2012 Metric) | Unshielded | 1.43Ohm Max | 560 nH | 30 @ 100MHz | 580MHz | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | -40°C ~ 85°C | 10 MHz | 0.039" (1.00mm) |
|
SRN3015C-6R8MIND,3X3X1.3MM,6.8UH20%,1.7A,SHD |
5,488 | - |
|
数据表 |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.7 A | 1.3A | 3015 | Shielded | 206mOhm Max | 6.8 µH | 10 @ 100MHz | 36MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
LQW21HNR47J00LFIXED IND 470NH 160MA 1.3OHM SMD |
4,955 | - |
|
数据表 |
LQW21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±5% | 160 mA | - | 0805 (2012 Metric) | Unshielded | 1.3Ohm Max | 470 nH | 30 @ 100MHz | 620MHz | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | -40°C ~ 85°C | 10 MHz | 0.039" (1.00mm) |
|
IFLR2727EZER72NM01FIXED IND 72NH 45A 0.35 MOHM SMD |
4,671 | - |
|
数据表 |
IFLR-2727EZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | ±20% | 45 A | 58A | - | Shielded | 0.35mOhm Max | 72 nH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SRN3015C-180MIND,3X3X1.3MM,18UH20%,1.1A,SHD |
3,274 | - |
|
数据表 |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.1 A | 730mA | 3015 | Shielded | 456mOhm Max | 18 µH | 15 @ 100MHz | 23MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
LQH43CN101K03LFIXED IND 100UH 190MA 2.2OHM SMD |
3,245 | - |
|
数据表 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 190 mA | - | 1812 | Unshielded | 2.2Ohm Max | 100 µH | - | 6.8MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 85°C | 1 MHz | 0.110" (2.80mm) |
|
SRN4026-4R7MFIXED IND 4.7UH 1.4A 48 MOHM SMD |
3,116 | - |
|
数据表 |
SRN4026 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.4A | - | Shielded | 48mOhm Max | 4.7 µH | 9 @ 7.96MHz | 40MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
BWVS00606045220M00FIXED IND 22UH 1.9A 125 MOHM SMD |
3,099 | - |
|
数据表 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.9 A | 3A | - | Shielded | 125mOhm | 22 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.185" (4.70mm) |
|
|
BWVS00606045100ML1FIXED IND 10UH 3.2A 50 MOHM SMD |
3,000 | - |
|
数据表 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 3.2 A | 3.2A | - | Shielded | 50mOhm | 10 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.185" (4.70mm) |
|
|
NRS8030T330MJGJFIXED IND 33UH 1.5A 156 MOHM SMD |
2,933 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.3A | - | Shielded | 156mOhm Max | 33 µH | - | 13MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
VLCF5020T-4R7N1R4FIXED IND 4.7UH 1.4A 96 MOHM SMD |
2,839 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.4 A | 1.4A | - | Shielded | 96mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
NRS8030T3R3MJGJFIXED IND 3.3UH 4.3A 19 MOHM SMD |
2,215 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.3 A | 4.2A | - | Shielded | 19mOhm | 3.3 µH | - | 50MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SRN4026-220MFIXED IND 22UH 670MA 234MOHM SMD |
1,532 | - |
|
数据表 |
SRN4026 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 670 mA | 670mA | - | Shielded | 234mOhm Max | 22 µH | 11 @ 2.52MHz | 16MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
BSPQ000402034N0B00FIXED IND 4.0NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 350 mA | - | 1005 | Unshielded | 350mOhm Max | 4 nH | 14 @ 500MHz | 6.9GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402033N8C00FIXED IND 3.8NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 350 mA | - | 1005 | Unshielded | 350mOhm Max | 3.8 nH | 14 @ 500MHz | 8.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402030N8B00FIXED IND 0.8NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 900 mA | - | 1005 | Unshielded | 50mOhm Max | 0.8 nH | 14 @ 500MHz | 15.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
74479184FIXED IND |
1,456 | - |
|
数据表 |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±10% | 385 mA | - | 1206 | Unshielded | 900mOhm Max | 33 µH | 35 @ 1MHz | 13MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.051" (1.30mm) |
|
|
BSPQ000402033N6C00FIXED IND 3.6NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 350 mA | - | 1005 | Unshielded | 300mOhm Max | 3.6 nH | 14 @ 500MHz | 8.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
.jpg)
|
B82422A1102K100FIXED IND 1UH 380MA 340 MOHM SMD |
38,125 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 380 mA | - | 1210 (3225 Metric) | Unshielded | 340mOhm Max | 1 µH | 20 @ 7.96MHz | 320MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
