固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX1D1250L680FIXED IND 68UH 3.6A 163 MOHM SMD |
198 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 3.6 A | 4.5A | - | Shielded | 163mOhm Max | 68 µH | - | 3MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
SPM10054T-220M-HZFIXED IND 22UH 6.2A 52.58MOHM SM |
167 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | ±20% | 6.2 A | 3A | - | Shielded | 52.58mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.421" L x 0.394" W (10.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.213" (5.40mm) |
|
AMPLA1306S-100MTFIXED IND 10UH 10A 16.5 MOHM SMD |
132 | - |
|
数据表 |
AMPLA1306S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 10 A | 15.5A | - | Shielded | 16.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|

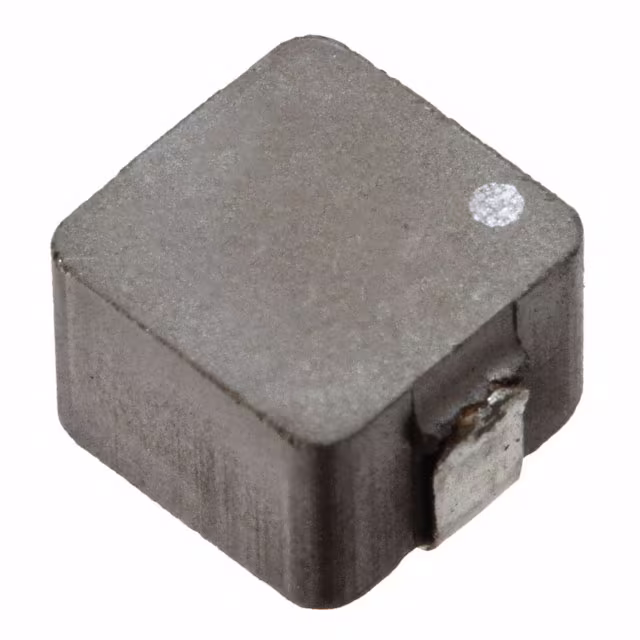

MPC0750LR60CFIXED IND 600NH 17A 2.3 MOHM SMD |
0 | - |
|
数据表 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 17 A | 19A | - | Shielded | 2.3mOhm Max | 600 nH | - | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | - | -20°C ~ 120°C | 100 kHz | 0.197" (5.00mm) |
|
744776139FIXED IND 39UH 1.62A 140MOHM SMD |
2,309 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.62 A | 1.8A | - | Unshielded | 140mOhm Max | 39 µH | - | 12MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
784771033FIXED IND 3.3UH 6.5A 14.5MOHM SM |
1,689 | - |
|
数据表 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 6.5 A | 9A | 1260 | Shielded | 14.5mOhm Max | 3.3 µH | - | 68.1MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.248" (6.30mm) |
|
784776139FIXED IND 39UH 1.62A 140MOHM SMD |
1,455 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.62 A | 1.8A | 1054 | Unshielded | 140mOhm Max | 39 µH | - | 11MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
744776222FIXED IND 220UH 670MA 730MOHM SM |
1,343 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 670 mA | 770mA | - | Unshielded | 730mOhm Max | 220 µH | - | 5MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
BSPQ000402032N6C00FIXED IND 2.6NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 2.6 nH | 14 @ 500MHz | 9.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402034N3H00FIXED IND 4.3NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±3% | 350 mA | - | 1005 | Unshielded | 350mOhm Max | 4.3 nH | 13 @ 500MHz | 6.9GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402033N1C00FIXED IND 3.1NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 400 mA | - | 1005 | Unshielded | 250mOhm Max | 3.1 nH | 14 @ 500MHz | 8.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402030N5C00FIXED IND 0.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 1 A | - | 1005 | Unshielded | 40mOhm Max | 0.5 nH | 14 @ 500MHz | 17GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402031N9C00FIXED IND 1.9NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 700 mA | - | 1005 | Unshielded | 80mOhm Max | 1.9 nH | 14 @ 500MHz | 10.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ0004020313NH00FIXED IND 13NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±3% | 210 mA | - | 1005 | Unshielded | 990mOhm Max | 13 nH | 13 @ 500MHz | 4GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402032N3C00FIXED IND 2.3NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 2.3 nH | 14 @ 500MHz | 9.8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402032N4C00FIXED IND 2.4NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 2.4 nH | 14 @ 500MHz | 9.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
LMLP13B3M8R2DTASFIXED IND 8.2UH 10.5A 15.5 MOHM |
400 | - |
|
数据表 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 10.5 A | 16A | - | Shielded | 15.5mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
TFM201210ALMAR56MTAAINDUCTORS FOR POWER CIRCUITS, AU |
3,536 | - |
|
数据表 |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 2.8 A | 3A | 0805 | Shielded | 49mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 150°C | 1 MHz | 0.039" (1.00mm) |
|
SLM474712A-R39MHFFIXED IND 390NH 43A 0.69MOHM SMD |
250 | - |
|
数据表 |
SLM474712 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 43 A | 81A | - | Shielded | 0.69mOhm | 390 nH | - | - | Surface Mount | - | 0.472" L x 0.469" W (12.00mm x 11.90mm) | - | -55°C ~ 130°C | 100 kHz | 0.465" (11.80mm) |
|
BWVS00505040220M00FIXED IND 22UH 1.4A 135 MOHM SMD |
3,152 | - |
|
数据表 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.4 A | 1.8A | - | Shielded | 135mOhm | 22 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
