固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS7341-103MLDPOWER INDUCTOR, SHIELDED, 20/30% |
42,098 | - |
|
数据表 |
MSS7341 | Nonstandard | Strip | Active | Drum Core | Ferrite | ±20% | 2.8 A | 1.64A | - | Shielded | 38mOhm Max | 10 µH | - | 32MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
BSPQ000402036N2H00FIXED IND 6.2NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±3% | 300 mA | - | 1005 | Unshielded | 400mOhm Max | 6.2 nH | 13 @ 500MHz | 6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
784771330FIXED IND 33UH 2.8A 62.5MOHM SMD |
623 | - |
|
数据表 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 2.8 A | 2.9A | 1280 | Shielded | 62.5mOhm Max | 33 µH | - | 11.5MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.248" (6.30mm) |
|
B82559A7103A016FIXED IND 10UH 11A 7.9 MOHM SMD |
18,951 | - |
|
数据表 |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 11 A | 12.2A | - | Shielded | 7.9mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.736" L x 0.681" W (18.70mm x 17.30mm) | - | -40°C ~ 150°C | 100 kHz | 0.343" (8.70mm) |
|
|
BSPQ000402033N2C00FIXED IND 3.2NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 400 mA | - | 1005 | Unshielded | 250mOhm Max | 3.2 nH | 14 @ 500MHz | 8.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|

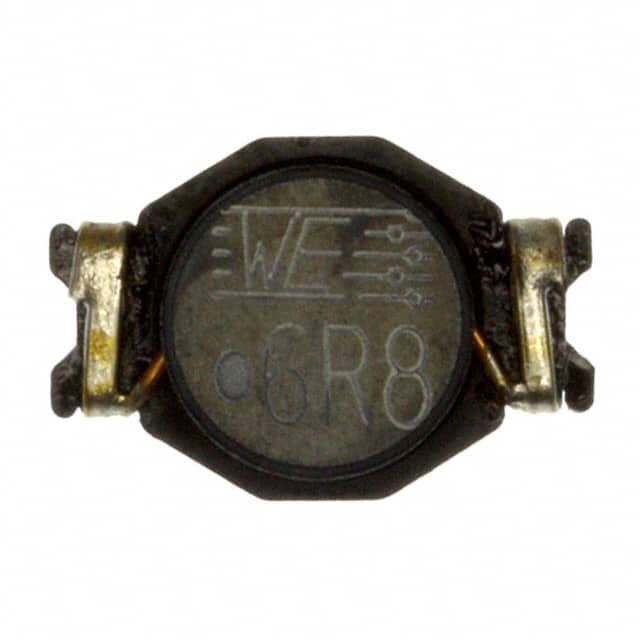

74457068FIXED IND 6.8UH 7.5A 17 MOHM SMD |
594 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.5 A | 12A | - | Unshielded | 17mOhm Max | 6.8 µH | - | 26MHz | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.307" (7.80mm) |
|
74431435022FIXED IND 220NH 31A 0.00028OHM |
585 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 31 A | 43A | 1435 | Shielded | 0.28mOhm | 220 nH | - | 60MHz | Surface Mount | - | 0.537" L x 0.531" W (13.65mm x 13.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.146" (3.70mm) |
|
|
BSPQ000402032N5C00FIXED IND 2.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 2.5 nH | 14 @ 500MHz | 9.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
MSS7341-153MLDPOWER INDUCTOR, SHIELDED, 20/30% |
15,378 | - |
|
数据表 |
MSS7341 | Nonstandard | Strip | Active | Drum Core | Ferrite | ±20% | 2.05 A | 1.36A | - | Shielded | 55mOhm Max | 15 µH | - | 26MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
FPT1006-580-RFIXED IND 580NH 19A 1 MOHM SMD |
511 | - |
|
数据表 |
FPT1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 19 A | 23A | - | Shielded | 1mOhm Max | 580 nH | - | - | Surface Mount | - | 0.380" L x 0.335" W (9.65mm x 8.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
744776033AFIXED IND 3.3UH 5A 20 MOHM SMD |
504 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5 A | - | - | Unshielded | 20mOhm Max | 3.3 µH | 34 @ 7.96MHz | 55MHz | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.228" (5.80mm) |
|
744776215FIXED IND 150UH 810MA 470MOHM SM |
500 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 810 mA | 900mA | - | Unshielded | 470mOhm Max | 150 µH | - | 6MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
744776218FIXED IND 180UH 760MA 630MOHM SM |
500 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 760 mA | 780mA | - | Unshielded | 630mOhm Max | 180 µH | - | 5.4MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
784776127FIXED IND 27UH 1.95A 110MOHM SMD |
500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.95 A | 1.98A | 1054 | Unshielded | 110mOhm Max | 27 µH | - | 15MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
784776182FIXED IND 82UH 1.11A 250MOHM SMD |
500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.11 A | 1.17A | 1054 | Unshielded | 250mOhm Max | 82 µH | - | 7MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
784776212FIXED IND 120UH 940MA 400MOHM SM |
500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 940 mA | 990mA | 1054 | Unshielded | 400mOhm Max | 120 µH | - | 6MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
784776218FIXED IND 180UH 760MA 630MOHM SM |
500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 760 mA | 780mA | 1054 | Unshielded | 630mOhm Max | 180 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
784776222FIXED IND 220UH 670MA 730MOHM SM |
500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 670 mA | 770mA | 1054 | Unshielded | 730mOhm Max | 220 µH | - | 4.5MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
784776233FIXED IND 330UH 520MA 1.15OHM SM |
500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 520 mA | 590mA | 1054 | Unshielded | 1.15Ohm Max | 330 µH | - | 4MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
|
|
784776239FIXED IND 390UH 490MA 1.3OHM SMD |
500 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 490 mA | 540mA | 1054 | Unshielded | 1.3Ohm Max | 390 µH | - | 3.7MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.232" (5.90mm) |
