固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-14HY101BFIXED IND 100UH 1.5A 140 MOHM TH |
236 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.5 A | 3.1A | - | Unshielded | 140mOhm Max | 100 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
744770268FIXED IND 680UH 700MA 1.46OHM SM |
185 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 800mA | - | Shielded | 1.46Ohm Max | 680 µH | - | 2.2MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
DRA73-102-RFIXED IND 1MH 235MA 5.15 OHM SMD |
172 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 235 mA | 239mA | - | Shielded | 5.15Ohm | 1 mH | - | - | Surface Mount | AEC-Q200 | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 165°C | 100 kHz | 0.140" (3.55mm) |
|

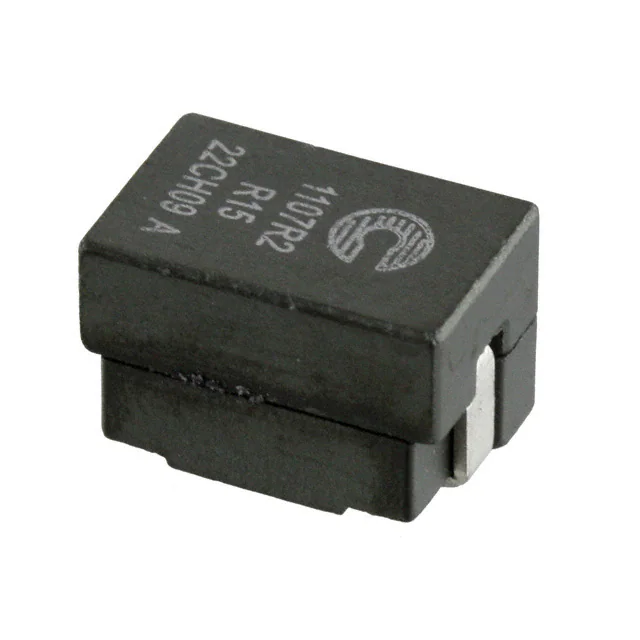

FP1107R2-R15-RFIXED IND 150NH 42A 0.47MOHM SMD |
1,721 | - |
|
数据表 |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 42 A | 70A | - | Unshielded | 0.47mOhm | 150 nH | - | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|
FP1107R2-R40-RFIXED IND 400NH 42A 0.47MOHM SMD |
1,167 | - |
|
数据表 |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 42 A | 25A | - | Unshielded | 0.47mOhm | 400 nH | - | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|
MPLC1040L1R5FIXED IND 1.5UH 12.4A 7 MOHM SMD |
0 | - |
|
数据表 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 12.4 A | 12.7A | - | Shielded | 7mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -20°C ~ 120°C | 100 kHz | 0.157" (4.00mm) |
|
BSPQ000402031N5C00FIXED IND 1.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 700 mA | - | 1005 | Unshielded | 80mOhm Max | 1.5 nH | 14 @ 500MHz | 12.7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
IHLP5050FDERR56M01FIXED IND 560NH 37A 1.4 MOHM SMD |
414 | - |
|
数据表 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 37 A | 62A | - | Shielded | 1.4mOhm Max | 560 nH | - | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
MWLA1707S-220MTFIXED IND 22UH 26.5MOHM 18000MA |
338 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 12 A | 18A | - | Shielded | 26.5mOhm Max | 22 µH | - | - | Surface Mount | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
BSPQ000402034N3J00FIXED IND 4.3NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 350 mA | - | 1005 | Unshielded | 350mOhm Max | 4.3 nH | 13 @ 500MHz | 6.9GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402030N2C00FIXED IND 0.2NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 1 A | - | 1005 | Unshielded | 10mOhm Max | 0.2 nH | - | 17GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402033N5C00FIXED IND 3.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 350 mA | - | 1005 | Unshielded | 300mOhm Max | 3.5 nH | 14 @ 500MHz | 8.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
PAL6374.181AHLTIND POWER BEAD TLVR |
325 | - |
|
数据表 |
PAL6374.XXXAHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 77 A | 40A | - | Unshielded | 0.135mOhm | 180 nH | - | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.472" (12.00mm) |
|
PG0936.183NLFIXED IND 18UH 9.8A 13.8MOHM SMD |
236 | - |
|
数据表 |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 9.8 A | 11A | - | Unshielded | 13.8mOhm Max | 18 µH | - | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | - | -40°C ~ 130°C | 100 kHz | 0.394" (10.00mm) |
|
SD12-2R2-RFIXED IND 2.2UH 1.83A 74.7 MOHM |
2,854 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.83 A | 1.8A | - | Shielded | 74.7mOhm | 2.2 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.047" (1.20mm) |
|
CDEP15D90T150NP-100MC-125FIXED IND 10UH 12.5A 7.9MOHM SMD |
290 | - |
|
数据表 |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 12.5 A | 15A | - | Shielded | 7.9mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.610" L x 0.610" W (15.50mm x 15.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.394" (10.00mm) |
|
IHLP5050EZERR33M5AFIXED IND 330NH 62.38A 1.02 MOHM |
250 | - |
|
数据表 |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 62.38 A | 45.24A | - | Shielded | 1.02mOhm Max | 330 nH | - | 77.5MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.508" W (13.46mm x 12.90mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
IHLP5050EZERR68M5AFIXED IND 680NH 49.63A 1.41 MOHM |
120 | - |
|
数据表 |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 49.63 A | 30A | - | Shielded | 1.41mOhm Max | 680 nH | - | 50.5MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.508" W (13.46mm x 12.90mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
FP1007R3-R27-RFIXED IND 270NH 61A 0.29MOHM SMD |
830 | - |
|
数据表 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 61 A | 40A | - | Unshielded | 0.29mOhm | 270 nH | - | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.295" (7.50mm) |
|
PM2201.182NLTFIXED IND 1.8UH 7A 28 MOHM SMD |
576 | - |
|
数据表 |
PM2201.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 7 A | 7.5A | SMD | Unshielded | 28mOhm Max | 1.8 µH | - | - | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.083" (2.10mm) |
