固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLO1-24-0001FIXED IND 7A 12 MOHM TH |
158 | - |
|
数据表 |
DLO | Radial, Vertical (Open) | Tape & Reel (TR) | Obsolete | - | - | - | 7 A | - | - | - | 12mOhm | - | - | - | Through Hole | - | 0.787" Dia x 0.394" W (20.00mm x 10.00mm) | - | -40°C ~ 125°C | - | - |
|
|
DLO1-24-0005FIXED IND 1.5A 280 MOHM TH |
150 | - |
|
数据表 |
DLO | Radial, Vertical (Open) | Bulk | Obsolete | - | - | - | 1.5 A | - | - | - | 280mOhm | - | - | - | Through Hole | - | 0.787" Dia x 0.394" W (20.00mm x 10.00mm) | - | -40°C ~ 125°C | - | - |
|
PA5006.102NLTFIXED IND 1UH 11A 10.8 MOHM SMD |
2,623 | - |
|
数据表 |
PA5006.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 11 A | 23A | - | Shielded | 10.8mOhm Max | 1 µH | - | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.081" (2.05mm) |
|
PA5006.311NLTFIXED IND 310NH 20A 4.8 MOHM SMD |
1,997 | - |
|
数据表 |
PA5006.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 20 A | 34A | - | Shielded | 4.8mOhm Max | 310 nH | - | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.081" (2.05mm) |
|

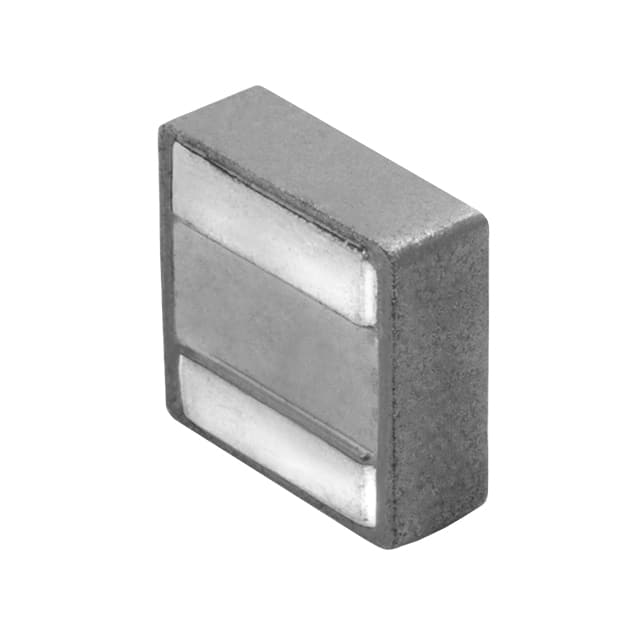

PA5007.222NLTFIXED IND 2.2UH 13A 13.7MOHM SMD |
1,389 | - |
|
数据表 |
PA5007.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 13 A | 19A | - | Shielded | 13.7mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
RLF12545T-2R7N8R7-PFFIXED IND 2.7UH 8.7A 5.4MOHM SMD |
387 | - |
|
数据表 |
RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 8.7 A | 12A | - | Shielded | 5.4mOhm Max | 2.7 µH | - | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.185" (4.70mm) |
|

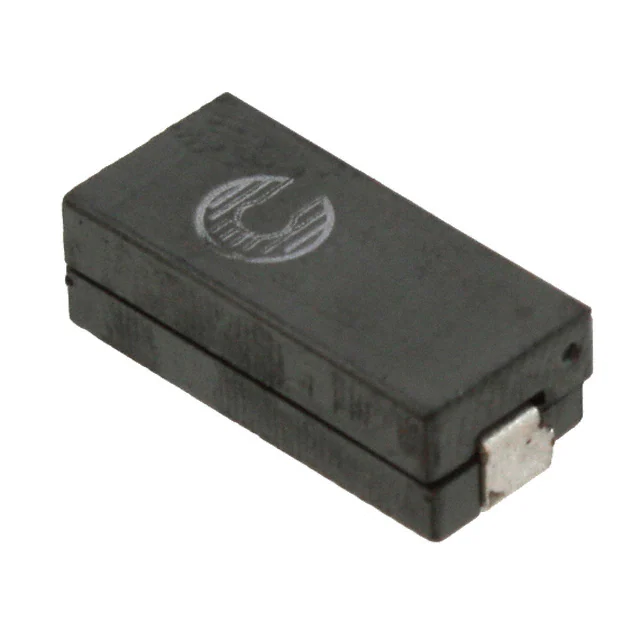

FP1505R1-R15-RFIXED IND 150NH 53A 0.47MOHM SMD |
0 | - |
|
数据表 |
FLAT-PAC, FP1505 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 53 A | 72A | - | Unshielded | 0.47mOhm | 150 nH | - | - | Surface Mount | - | 0.579" L x 0.264" W (14.70mm x 6.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
BSPQ000402032N7B00FIXED IND 2.7NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 2.7 nH | 14 @ 500MHz | 8.8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
CTSLF1275TF-470MSMD SHIELDED POWER INDUCTOR |
196 | - |
|
数据表 |
CTSLF1275 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.7 A | 3A | - | Shielded | 52.8mOhm | 47 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.309" (7.85mm) |
|
|
BSPQ000402031N5B00FIXED IND 1.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 700 mA | - | 1005 | Unshielded | 80mOhm Max | 1.5 nH | 14 @ 500MHz | 12.7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
FP1206R1-R15-RFIXED IND 150NH 50A 0.43MOHM SMD |
0 | - |
|
数据表 |
FLAT-PAC, FP1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 50 A | 70A | - | Unshielded | 0.43mOhm | 150 nH | - | - | Surface Mount | - | 0.461" L x 0.303" W (11.70mm x 7.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
|
BSPQ000402032N6B00FIXED IND 2.6NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 2.6 nH | 14 @ 500MHz | 9.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
PE-0805CM121JTTFIXED IND 120NH 350MA 560MOHM SM |
9,930 | - |
|
数据表 |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 350 mA | - | 0805 (2012 Metric) | Unshielded | 560mOhm Max | 120 nH | 45 @ 250MHz | 1.1GHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 150 MHz | 0.062" (1.58mm) |
|
|
BSPQ000402037N5H00FIXED IND 7.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±3% | 300 mA | - | 1005 | Unshielded | 500mOhm Max | 7.5 nH | 13 @ 500MHz | 5.6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
SBC7-152-481FIXED IND 1.5MH 480MA 1.58OHM TH |
1,180 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 480 mA | 930mA | - | Unshielded | 1.58Ohm Max | 1.5 mH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.689" (17.50mm) |
|
|
BSPQ000402030N2B00FIXED IND 0.2NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 1 A | - | 1005 | Unshielded | 10mOhm Max | 0.2 nH | - | 17GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
CSAD0660-220MSMD MOLDING POWER CHOKE |
800 | - |
|
数据表 |
CSAD0660 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 2.4 A | 4.3A | 4-SMD | Shielded | 112mOhm Max | 22 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.299" (7.60mm) |
|
|
BSPQ000402030N4C00FIXED IND 0.4NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 1 A | - | 1005 | Unshielded | 30mOhm Max | 0.4 nH | 14 @ 500MHz | 17GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
CSAD0660-4R7MSMD MOLDING POWER CHOKE |
785 | - |
|
数据表 |
CSAD0660 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 5.5 A | 12A | 4-SMD | Shielded | 23mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.299" (7.60mm) |
|
|
CSAD0660-100MSMD MOLDING POWER CHOKE |
667 | - |
|
数据表 |
CSAD0660 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 3.5 A | 6.5A | 4-SMD | Shielded | 47mOhm Max | 10 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.299" (7.60mm) |
