固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMLB136T-470MSFIXED IND 47UH 4.5A 88 OHM SMD |
439 | - |
|
数据表 |
CMLB136T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 4.5 A | 5.2A | - | Shielded | 88Ohm Max | 47 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
CMLS136E-100MSFIXED IND 10UH 11A 18.5MOHM SMD |
401 | - |
|
数据表 |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 11 A | 18A | - | Shielded | 18.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
7443330022FIXED IND 220NH 21.5A 1.6MOHM SM |
400 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 21.5 A | 60A | - | Shielded | 1.6mOhm Max | 220 nH | - | 300MHz | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.382" (9.70mm) |
|
|
CMLS136E-1R8MSFIXED IND 1.8UH 25A 3.1MOHM SMD |
384 | - |
|
数据表 |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 25 A | 47A | - | Shielded | 3.1mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
7447036FIXED IND 220UH 800MA 220MOHM TH |
371 | - |
|
数据表 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | ±20% | 800 mA | - | - | Unshielded | 220mOhm Max | 220 µH | - | - | Through Hole | - | 0.551" Dia x 0.295" W (14.00mm x 7.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
|

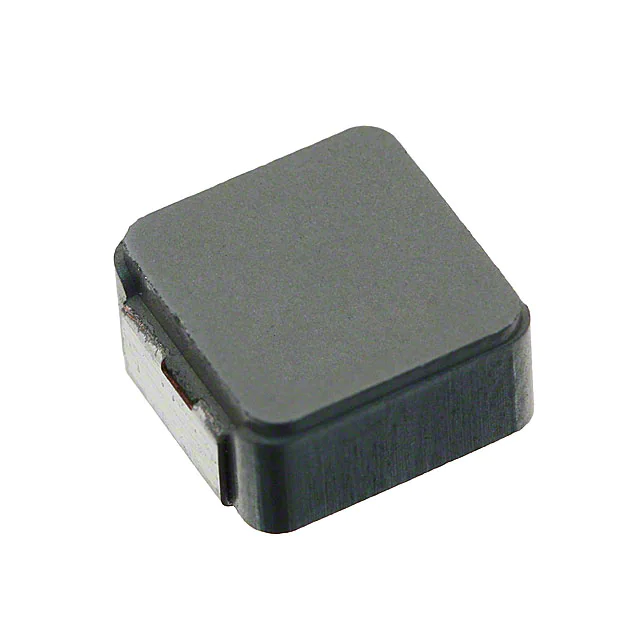

IHLP5050EZER150M5AFIXED IND 15UH 7.7A 29.7MOHM SMD |
315 | - |
|
数据表 |
IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 7.7 A | 7.5A | - | Shielded | 29.7mOhm Max | 15 µH | - | 9.6MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.508" W (13.46mm x 12.90mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
NRS8030T220MJGJFIXED IND 22UH 1.9A 91 MOHM SMD |
4,303 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.75A | - | Shielded | 91mOhm Max | 22 µH | - | 16MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -25°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
BWVS005050204R7M00FIXED IND 4.7UH 2.2A 60 MOHM SMD |
4,286 | - |
|
数据表 |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 2.2 A | 2.2A | - | Shielded | 60mOhm | 4.7 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.087" (2.20mm) |
|
744770282FIXED IND 820UH 600MA 1.64OHM SM |
260 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 800mA | - | Shielded | 1.64Ohm Max | 820 µH | - | 2MHz | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
LMLP07A7M2R2DTASFIXED IND 2.2UH 8A 20 MOHM SMD |
4,070 | - |
|
数据表 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 8 A | 12A | - | Shielded | 20mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
BSPQ000402031N3B00FIXED IND 1.3NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 700 mA | - | 1005 | Unshielded | 80mOhm Max | 1.3 nH | 14 @ 500MHz | 12.7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402032N0C00FIXED IND 2.0NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 700 mA | - | 1005 | Unshielded | 100mOhm Max | 2 nH | 14 @ 500MHz | 10.1GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
MSS6132T-223MLCFIXED IND 22UH 1.9A 158MOHM SM |
837 | - |
|
数据表 |
MSS6132T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 1.9 A | 1.22A | - | Shielded | 158mOhm Max | 22 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.240" L x 0.240" W (6.10mm x 6.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
XFL3012-332MECXFL3012-332MEC |
670 | - |
|
数据表 |
XFL3012 | 1212 (3030 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 1.6 A | 870mA | 1212 | Shielded | 127mOhm Max | 3.3 µH | - | 61.6MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.051" (1.30mm) |
|
|
MSS6132T-822MLCFIXED IND 8.2UH 2.65A 55MOHM SM |
613 | - |
|
数据表 |
MSS6132T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 2.65 A | 2.22A | - | Shielded | 55mOhm Max | 8.2 µH | - | 45MHz | Surface Mount | AEC-Q200 | 0.240" L x 0.240" W (6.10mm x 6.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
|
MSS6132T-183MLCFIXED IND 18UH 2.05A 118MOHM SM |
598 | - |
|
数据表 |
MSS6132T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 2.05 A | 1.36A | - | Shielded | 118mOhm Max | 18 µH | - | 24MHz | Surface Mount | AEC-Q200 | 0.240" L x 0.240" W (6.10mm x 6.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
|
MSS6132T-153MLCFIXED IND 15UH 2.2A 106MOHM SM |
546 | - |
|
数据表 |
MSS6132T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 2.2 A | 1.56A | - | Shielded | 106mOhm Max | 15 µH | - | 27MHz | Surface Mount | AEC-Q200 | 0.240" L x 0.240" W (6.10mm x 6.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
|
MSS6132T-682MLCFIXED IND 6.8UH 2.8A 52MOHM SM |
496 | - |
|
数据表 |
MSS6132T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 2.8 A | 2.3A | - | Shielded | 52mOhm Max | 6.8 µH | - | 47MHz | Surface Mount | AEC-Q200 | 0.240" L x 0.240" W (6.10mm x 6.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
|
MSS6132T-103MLCFIXED IND 10UH 2.5A 70MOHM SM |
431 | - |
|
数据表 |
MSS6132T | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 2.5 A | 1.84A | - | Shielded | 70mOhm Max | 10 µH | - | 39MHz | Surface Mount | AEC-Q200 | 0.240" L x 0.240" W (6.10mm x 6.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
SBCP-80HY151HFIXED IND 150UH 1A 410 MOHM TH |
378 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 1.2A | - | Unshielded | 410mOhm Max | 150 µH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
