固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSPQ0004020310NJ00FIXED IND 10NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 250 mA | - | 1005 | Unshielded | 600mOhm Max | 10 nH | 13 @ 500MHz | 4.9GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402032N9B00FIXED IND 2.9NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 2.9 nH | 14 @ 500MHz | 8.8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ0004020312NH00FIXED IND 12NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±3% | 230 mA | - | 1005 | Unshielded | 820mOhm Max | 12 nH | 13 @ 500MHz | 4GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402034N1C00FIXED IND 4.1NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 350 mA | - | 1005 | Unshielded | 350mOhm Max | 4.1 nH | 14 @ 500MHz | 6.9GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402030N7C00FIXED IND 0.7NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 900 mA | - | 1005 | Unshielded | 50mOhm Max | 0.7 nH | 14 @ 500MHz | 15.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402033N0C00FIXED IND 3.0NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 3 nH | 14 @ 500MHz | 8.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402033N2B00FIXED IND 3.2NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 400 mA | - | 1005 | Unshielded | 250mOhm Max | 3.2 nH | 14 @ 500MHz | 8.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
BWQC00322520100K00INDUCTOR RF |
6,343 | - |
|
数据表 |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 300 mA | - | 1210 | Unshielded | 440mOhm | 10 µH | - | 26MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -25°C ~ 125°C | 1 MHz | 0.087" (2.20mm) |
|
744901112FIXED IND 12NH 180MA 1.6 OHM SMD |
5,081 | - |
|
数据表 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±2% | 180 mA | - | 0402 (1005 Metric) | Unshielded | 1.6Ohm Max | 12 nH | 13 @ 500MHz | 3.7GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 125°C | 500 MHz | 0.016" (0.40mm) |
|
VLS6045EX-470M-HFIXED IND 47UH 1.3A 230MOHM SMD |
3,992 | - |
|
数据表 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.8A | - | Shielded | 230mOhm | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.248" L x 0.236" W (6.30mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
VLCF4020T-101MR26FIXED IND 100UH 260MA 1.4OHM SMD |
3,362 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 260 mA | 260mA | - | Shielded | 1.4Ohm Max | 100 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
SDCH1V6028-102M-RIND 1000 UH0.25A SMT |
3,163 | - |
|
数据表 |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 240 mA | 250mA | - | Shielded | 6.9Ohm Max | 1 mH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

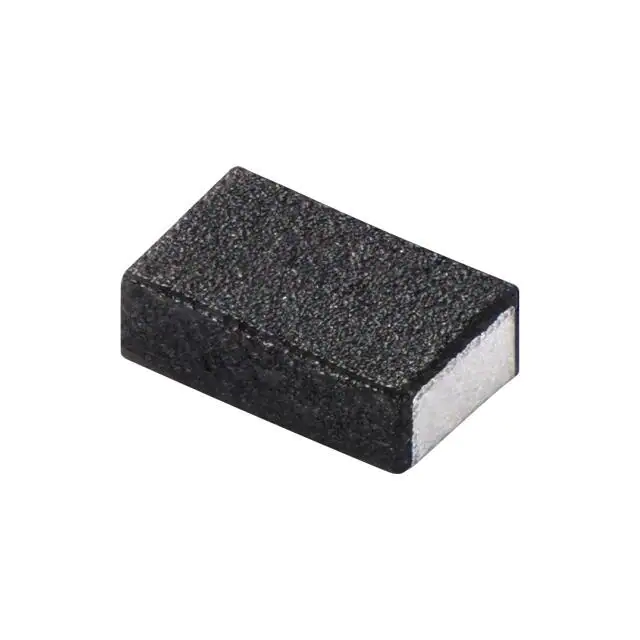

DFE21CCNR24MELLFIXED IND 0.24UH 6500MA NONAUTO |
2,524 | - |
|
数据表 |
DFE21CCN_EL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5.2 A | 6.5A | 0805 | Shielded | 20mOhm Max | 240 nH | - | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | -40°C ~ 125°C | 1 MHz | 0.031" (0.80mm) |
|
|
744901010FIXED IND 1NH 700MA 100 MOHM SMD |
1,848 | - |
|
数据表 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.1nH | 700 mA | - | 0402 (1005 Metric) | Unshielded | 100mOhm Max | 1 nH | 13 @ 500MHz | 12GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 125°C | 500 MHz | 0.016" (0.40mm) |
|
LSENC2016KKTR47MFIXED IND 470NH 4.3A 30 MOHM SMD |
1,140 | - |
|
数据表 |
LSEN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 4.3 A | 4.5A | 0806 | Unshielded | 30mOhm Max | 470 nH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
TYS40181R0N-10FIXED IND 1UH 2A 25 MOHM SMD |
54,271 | - |
|
数据表 |
TYS4018 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2 A | 4.8A | - | Shielded | 25mOhm Max | 1 µH | - | 80MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
BSPQ000402031N7B00FIXED IND 1.7NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 700 mA | - | 1005 | Unshielded | 80mOhm Max | 1.7 nH | 14 @ 500MHz | 10.7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402031N8B00FIXED IND 1.8NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 700 mA | - | 1005 | Unshielded | 80mOhm Max | 1.8 nH | 14 @ 500MHz | 10.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402031N7C00FIXED IND 1.7NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 700 mA | - | 1005 | Unshielded | 80mOhm Max | 1.7 nH | 14 @ 500MHz | 10.7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402036N8H00FIXED IND 6.8NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±3% | 300 mA | - | 1005 | Unshielded | 400mOhm Max | 6.8 nH | 13 @ 500MHz | 5.7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
