固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BWQC003225201R0ML1INDUCTOR RF |
12,490 | - |
|
数据表 |
BWQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | - | 1210 | Unshielded | 60mOhm Max | 1 µH | - | 100MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.087" (2.20mm) |
|
CTDO3316PF-15315UH SMD UNSHLD POWER INDUCTOR |
2,034 | - |
|
数据表 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.1 A | 3A | - | Unshielded | 50mOhm | 15 µH | - | 27MHz | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|
744901047FIXED IND 4.7NH 320MA 600MOHM SM |
10,725 | - |
|
数据表 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.1nH | 320 mA | - | 0402 (1005 Metric) | Unshielded | 600mOhm Max | 4.7 nH | 13 @ 500MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 125°C | 500 MHz | 0.016" (0.40mm) |
|
PM2203.331NLTFIXED IND 330NH 19.2A 3.52 MOHM |
1,970 | - |
|
数据表 |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 19.2 A | 28A | SMD | Unshielded | 3.52mOhm Max | 330 nH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
PLEA67BBA2R2M-1PT00FIXED IND 2.2UH 800MA 620MOHM SM |
9,865 | - |
|
数据表 |
PLE | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 800 mA | 600mA | 0402 | Unshielded | 620mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.031" (0.80mm) |
|
|
CTDO3316PF-6826.8UH SMD UNSHLD POWER INDUCTOR |
1,962 | - |
|
数据表 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 4.4 A | 4.6A | - | Unshielded | 30mOhm | 6.8 µH | - | 38MHz | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|
|
CTDO3316PF-1051MH SMD UNSHLD POWER INDUCTOR |
1,960 | - |
|
数据表 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 300 mA | 300mA | - | Unshielded | 3Ohm | 1 mH | - | 2MHz | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|

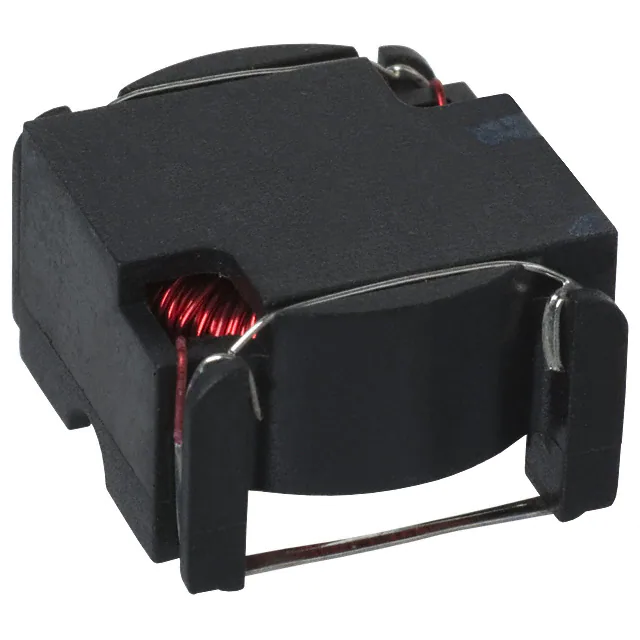

PE-53652NLTFIXED IND 9UH 5.5A 28 MOHM SMD |
2,330 | - |
|
数据表 |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | - | 5.5 A | - | - | Unshielded | 28mOhm Max | 9 µH | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | - | -40°C ~ 130°C | - | 0.390" (9.91mm) |
|
IHVR4025JZEZR10M3ZFIXED INDUCTOR SMD |
1,647 | - |
|
数据表 |
IHVR-4025JZ-3Z | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 112 A | 140A | - | Shielded | 0.143mOhm Max | 100 nH | - | 212MHz | Surface Mount | - | 0.394" L x 0.252" W (10.00mm x 6.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.394" (10.00mm) |
|
|
CTDO3316PF-1551.5MH SMD UNSHLD POWER INDUCTOR |
1,442 | - |
|
数据表 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 250 mA | 270mA | - | Unshielded | 5Ohm | 1.5 mH | - | 1MHz | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|
SPM10040T-3R3M-HZFIXED IND 3.3UH 15.3A 11MOHM SMD |
931 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | ±20% | 15.3 A | 8.2A | - | Shielded | 11mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.421" L x 0.394" W (10.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CTDO3316PF-224220UH SMD UNSHLD POWER INDUCTOR |
1,040 | - |
|
数据表 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 800 mA | 800mA | - | Unshielded | 600mOhm | 220 µH | - | 5MHz | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|
PE-53606NLFIXED IND 114UH 940MA 405MOHM SM |
683 | - |
|
数据表 |
SLIC | Nonstandard | Tube | Active | Toroidal | - | - | 940 mA | - | - | Unshielded | 405mOhm Max | 114 µH | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | - | -40°C ~ 130°C | - | 0.360" (9.14mm) |
|
|
CTDO3316PF-68368UH SMD UNSHLD POWER INDUCTOR |
1,015 | - |
|
数据表 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.5 A | 1.4A | - | Unshielded | 200mOhm | 68 µH | - | 10MHz | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|
|
CTDO3316PF-332HC3.3UH SMD HI-CUR POWER INDUCTOR |
885 | - |
|
数据表 |
CTDO3316HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 5.7 A | 6.4A | - | Unshielded | 14mOhm | 3.3 µH | - | - | Surface Mount | - | 0.520" L x 0.390" W (13.21mm x 9.91mm) | - | -40°C ~ 85°C | 100 kHz | 0.250" (6.35mm) |
|
MHA1040NSGR15MFIXED IND 150NH 48A 0.55MOHM SMD |
700 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 48 A | 65A | - | - | 0.55mOhm Max | 150 nH | - | - | Surface Mount | - | 0.272" L x 0.256" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | - | 0.150" (3.80mm) |
|
|
IHVR4025JZEZR15M3ZFIXED INDUCTOR SMD |
269 | - |
|
数据表 |
IHVR-4025JZ-3Z | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 112 A | 82A | - | Shielded | 0.143mOhm Max | 150 nH | - | 126MHz | Surface Mount | - | 0.394" L x 0.252" W (10.00mm x 6.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.394" (10.00mm) |
|
SM5018-R82MHFFIXED IND 820NH 31A 2.3MOHM SMD |
250 | - |
|
数据表 |
SM5018 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 31 A | 53A | - | Shielded | 2.3mOhm Max | 820 nH | - | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
|
|
CTDO3316PF-2222.2UH SMD UNSHLD POWER INDUCTOR |
227 | - |
|
数据表 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 6.1 A | 7A | - | Unshielded | 10mOhm | 2.2 µH | - | 80MHz | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|
LMXS131JM680FTASFIXED IND 68UH 2A 94 MOHM SMD |
347 | - |
|
数据表 |
LMXS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | - | - | Shielded | 94mOhm Max | 68 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.309" (7.85mm) |
