固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

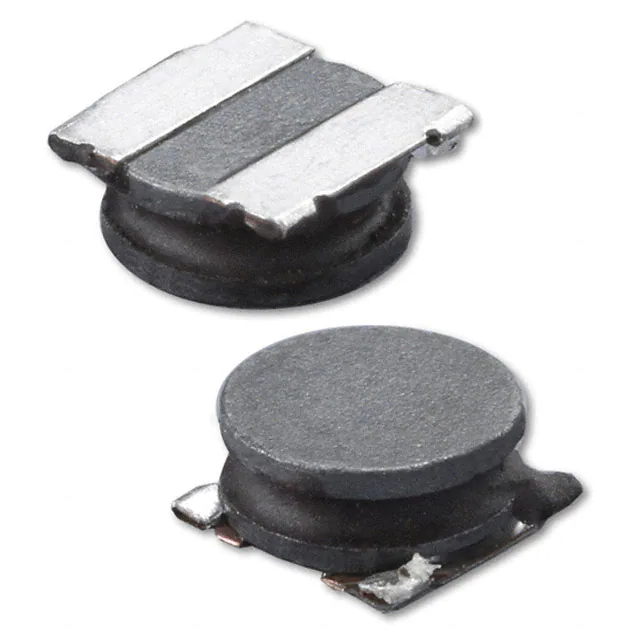

ASPI-0418FS-6R8M-T3FIXED IND 6.8UH 1.5A 98 MOHM SMD |
4,408 | - |
|
数据表 |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.45 A | 1.6A | - | Shielded | 118mOhm Max | 6.8 µH | - | 30MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.071" (1.80mm) |
|
744761268AFIXED IND 680NH 120MA 2.9OHM SMD |
3,509 | - |
|
数据表 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 120 mA | - | 0603 | Unshielded | 2.9Ohm Max | 680 nH | 20 @ 250MHz | 300MHz | Surface Mount | AEC-Q200 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | - | -40°C ~ 125°C | 100 MHz | 0.049" (1.25mm) |
|
ASPI-4030S-120M-TFIXED IND 12UH 1.3A 135 MOHM SMD |
3,193 | - |
|
数据表 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 1.3 A | 1.7A | - | Shielded | 135mOhm | 12 µH | - | 18MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
ASPI-0418FS-3R3M-T3FIXED IND 3.3UH 2.2A 55 MOHM SMD |
3,000 | - |
|
数据表 |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 2.3A | - | Shielded | 66mOhm Max | 3.3 µH | - | 45MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.071" (1.80mm) |
|
LQM2HPN2R2MJHLFIXED IND 2.2UH 1.5A 138MOHM SMD |
2,893 | - |
|
数据表 |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 1.5 A | 1.4A | 1008 (2520 Metric) | Shielded | 138mOhm Max | 2.2 µH | - | 30MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 85°C | 1 MHz | 0.047" (1.20mm) |
|
744761310AWE-KI SMT WIRE WOUND CERAMIC IND |
2,303 | - |
|
数据表 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 120 mA | - | 0603 | Unshielded | 3.5Ohm Max | 1 µH | 30 @ 250MHz | 200MHz | Surface Mount | - | 0.063" L x 0.041" W (1.60mm x 1.05mm) | - | -40°C ~ 125°C | 250 MHz | 0.049" (1.25mm) |
|
MWSA1707S-150MTFIXED IND 15UH 17 MOHM SMD |
172 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | - | - | - | Shielded | 17mOhm Max | 15 µH | - | - | Surface Mount | - | - | - | -55°C ~ 125°C | 100 kHz | - |
|
|
MWSA1707S-330MTFIXED IND 33UH 37 MOHM SMD |
167 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | - | - | - | Shielded | 37mOhm Max | 33 µH | - | - | Surface Mount | - | - | - | -55°C ~ 125°C | 100 kHz | - |
|
PM2203.222NLTFIXED IND 2.2UH 9.7A 14.5MOHM SM |
6,513 | - |
|
数据表 |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9.7 A | 10A | SMD | Unshielded | 14.5mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
7447779218FIXED IND 180UH 510MA 980MOHM SM |
2,852 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 510 mA | 560mA | 7345 | Shielded | 980mOhm Max | 180 µH | - | 5.3MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
7447779118FIXED IND 18UH 1.5A 91 MOHM SMD |
2,790 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 2.05A | 7345 | Shielded | 91mOhm Max | 18 µH | - | 19MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
PM2203.102NLTFIXED IND 1UH 12.2A 7.6MOHM SMD |
2,630 | - |
|
数据表 |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 12.2 A | 14.3A | SMD | Shielded | 7.6mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
7447779008FIXED IND 8.2UH 2.7A 53 MOHM SMD |
2,364 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.7 A | 3A | 7345 | Shielded | 53mOhm Max | 8.2 µH | - | 28MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
BWQV00322520561K00INDUCTOR RF |
35,785 | - |
|
数据表 |
BWQV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 40 mA | - | 1210 | Unshielded | 28Ohm Max | 560 µH | 50 @ 796kHz | 2MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.087" (2.20mm) |
|
|
BSPQ000402032N2B00FIXED IND 2.2NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 500 mA | - | 1005 | Unshielded | 200mOhm Max | 2.2 nH | 14 @ 500MHz | 9.8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
.jpg)
|
252012CDMCDDS-2R2MCFIXED IND 2.2UH 3A 82 MOHM SMD |
21,821 | - |
|
数据表 |
252012CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | ±20% | 3 A | 2.8A | 1008 | Shielded | 82mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
BSPQ000402033N7B00FIXED IND 3.7NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 350 mA | - | 1005 | Unshielded | 350mOhm Max | 3.7 nH | 14 @ 500MHz | 8.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402033N3C00FIXED IND 3.3NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 400 mA | - | 1005 | Unshielded | 250mOhm Max | 3.3 nH | 14 @ 500MHz | 8.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402030N8C00FIXED IND 0.8NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 900 mA | - | 1005 | Unshielded | 50mOhm Max | 0.8 nH | 14 @ 500MHz | 15.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402031N1B00FIXED IND 1.1NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 850 mA | - | 1005 | Unshielded | 60mOhm Max | 1.1 nH | 14 @ 500MHz | 12.8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
