固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSPQ0004020315NJ00FIXED IND 15NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 170 mA | - | 1005 | Unshielded | 1.53Ohm Max | 15 nH | 13 @ 500MHz | 4GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402030N5B00FIXED IND 0.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 1 A | - | 1005 | Unshielded | 40mOhm Max | 0.5 nH | 14 @ 500MHz | 17GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402032N5B00FIXED IND 2.5NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 450 mA | - | 1005 | Unshielded | 200mOhm Max | 2.5 nH | 14 @ 500MHz | 9.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
|
BSPQ000402033N7C00FIXED IND 3.7NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 350 mA | - | 1005 | Unshielded | 350mOhm Max | 3.7 nH | 14 @ 500MHz | 8.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
74477730FIXED IND 1MH 200MA 6 OHM SMD |
2,071 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 200 mA | 250mA | 7345 | Shielded | 6Ohm Max | 1 mH | - | 2.2MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
744777270FIXED IND 270UH 430MA 1.64OHM SM |
1,888 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 430 mA | 480mA | 7345 | Shielded | 1.64Ohm Max | 270 µH | - | 4.3MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|

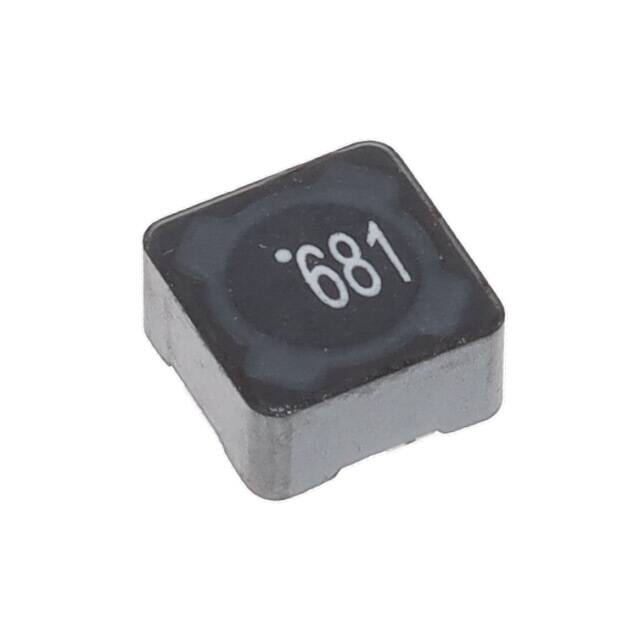

74477726FIXED IND 680UH 230MA 4.63OHM SM |
962 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 230 mA | 280mA | 7345 | Shielded | 4.63Ohm Max | 680 µH | - | 2.7MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
|
7447779239FIXED IND 390UH 380MA 2.85OHM SM |
817 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 380 mA | 420mA | 7345 | Shielded | 2.85Ohm Max | 390 µH | - | 3.8MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
HCM1103-R47-RFIXED IND 470NH 20A 2 MOHM SMD |
745 | - |
|
数据表 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 20 A | 26A | - | Shielded | 2mOhm Max | 470 nH | - | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
744777212FIXED IND 120UH 670MA 660MOHM SM |
586 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 670 mA | 700mA | 7345 | Shielded | 660mOhm Max | 120 µH | - | 6.7MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.177" (4.50mm) |
|
768775268FIXED IND 680UH 380MA 2.4OHM SMD |
488 | - |
|
数据表 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 380 mA | 380mA | - | Unshielded | 2.4Ohm Max | 680 µH | - | 2.7MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.217" (5.50mm) |
|
|
768775256FIXED IND 560UH 410MA 2.08OHM SM |
483 | - |
|
数据表 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 410 mA | 410mA | - | Unshielded | 2.08Ohm Max | 560 µH | - | 2.8MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.217" (5.50mm) |
|
PM2203.182NLTFIXED IND 1.8UH 10.1A 12.7 MOHM |
416 | - |
|
数据表 |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10.1 A | 12.3A | SMD | Unshielded | 12.7mOhm Max | 1.8 µH | - | - | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
HCM1103-1R0-RFIXED IND 1UH 15A 6 MOHM SMD |
361 | - |
|
数据表 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 15 A | 21A | - | Shielded | 6mOhm Max | 1 µH | - | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
HCM1A1307V2-1R0-RFIXED IND 1UH 28A 1.75 MOHM SMD |
354 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 28 A | 34A | - | Shielded | 1.75mOhm Max | 1 µH | - | 34MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
HCM1A1307V2-6R8-RFIXED IND 6.8UH 10A 11.5MOHM SMD |
347 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 10 A | 15A | - | Shielded | 11.5mOhm Max | 6.8 µH | - | 9MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
FPV1006-85-RFIXED IND 85NH 25A 0.41 MOHM SMD |
263 | - |
|
数据表 |
FPV1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 25 A | 81A | - | Shielded | 0.41mOhm Max | 85 nH | - | - | Surface Mount | - | 0.382" L x 0.331" W (9.70mm x 8.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
UP0.4C-220-RFIXED IND 22UH 760MA 360MOHM SMD |
0 | - |
|
数据表 |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 760 mA | 770mA | - | Unshielded | 360mOhm Max | 22 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
-Top-MGV-Series.jpg)
|
MGV252012S2R2M-10FIXED IND 2.2UH 2.5A 89MOHM SMD |
15,650 | - |
|
数据表 |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | ±20% | 2.5 A | 3.5A | - | Shielded | 89mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
744901039FIXED IND 3.9NH 340MA 500MOHM SM |
13,529 | - |
|
数据表 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | ±0.1nH | 340 mA | - | 0402 (1005 Metric) | Unshielded | 500mOhm Max | 3.9 nH | 13 @ 500MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 125°C | 500 MHz | 0.016" (0.40mm) |
