固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSPQ0004020311NJ00FIXED IND 11NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 250 mA | - | 1005 | Unshielded | 800mOhm Max | 11 nH | 13 @ 500MHz | 4GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
XFHCL4-R10MFIXED IND 100NH 55A 0.6 MOHM SMD |
250 | - |
|
数据表 |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | ±20% | 55 A | 80A | - | Shielded | 0.6mOhm Max | 100 nH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.504" W (13.50mm x 12.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
BSPQ000402036N8J00FIXED IND 6.8NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±5% | 300 mA | - | 1005 | Unshielded | 400mOhm Max | 6.8 nH | 13 @ 500MHz | 5.7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
XFHCL4-1R5MFIXED IND 1.5UH 23A 4.1 MOHM SMD |
250 | - |
|
数据表 |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | ±20% | 23 A | 48A | - | Shielded | 4.1mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.504" W (13.50mm x 12.80mm) | - | -40°C ~ 85°C | 100 kHz | 0.197" (5.00mm) |
|
|
BSPQ000402031N3C00FIXED IND 1.3NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.2nH | 700 mA | - | 1005 | Unshielded | 80mOhm Max | 1.3 nH | 14 @ 500MHz | 12.7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|

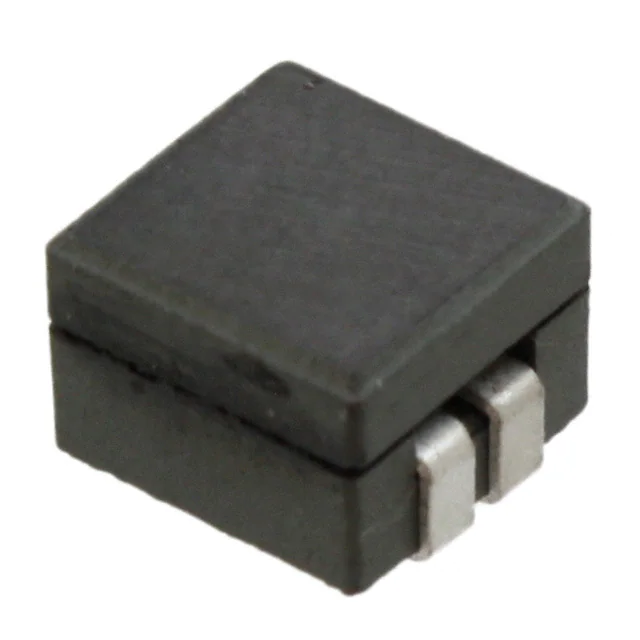

FPT705-190-RFIXED IND 190NH 13A 0.65MOHM SMD |
460 | - |
|
数据表 |
FLAT-PAC, FPT705 | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±12% | 13 A | 28A | - | Unshielded | 0.65mOhm | 190 nH | - | - | Surface Mount | - | 0.295" L x 0.268" W (7.50mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.211" (5.35mm) |
|
|
PA5006.271NLTFIXED IND 270NH 21A 3.5 MOHM SMD |
2,950 | - |
|
数据表 |
PA5006.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 21 A | 35A | - | Shielded | 3.5mOhm Max | 270 nH | - | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.081" (2.05mm) |
|
PE-53630NLTFIXED IND 1.01UH 3.4A 11MOHM SMD |
2,799 | - |
|
数据表 |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | - | 3.4 A | - | - | Unshielded | 11mOhm Max | 1.01 µH | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | - | -40°C ~ 130°C | - | 0.270" (6.86mm) |
|
CMLB135T-3R3MSFIXED IND 3.3UH 15.5A 7MOHM SMD |
1,782 | - |
|
数据表 |
CMLB135T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 15.5 A | 19.5A | - | Shielded | 7mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
74434035007FIXED IND 70NH 29A 0.00038OHM SM |
1,665 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 29 A | 18.1A | 4035 | Shielded | 0.38mOhm | 70 nH | - | 85MHz | Surface Mount | - | 0.163" L x 0.122" W (4.15mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
CMLS136E-R68MSFIXED IND 680NH 33A 1.7MOHM SMD |
990 | - |
|
数据表 |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 33 A | 70A | - | Shielded | 1.7mOhm Max | 680 nH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
CMLB136T-150MSFIXED IND 15UH 8A 27.5 OHM SMD |
500 | - |
|
数据表 |
CMLB136T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 8 A | 9A | - | Shielded | 27.5Ohm Max | 15 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
MPIA2512V2-1R0-RFIXED IND 1UH 3.3A 44 MOHM SMD |
0 | - |
|
数据表 |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 3.3 A | 4.4A | 1008 | Shielded | 44mOhm Max | 1 µH | - | 70MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.049" (1.25mm) |
|
MPC1250LR50CFIXED IND 500NH 35A 0.8 MOHM SMD |
4,501 | - |
|
数据表 |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 35 A | 40A | - | Shielded | 0.8mOhm | 500 nH | - | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | - | -20°C ~ 120°C | 100 kHz | 0.197" (5.00mm) |
|
FP1008-150-RFIXED IND 150NH 63A 0.17MOHM SMD |
1,950 | - |
|
数据表 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 63 A | - | - | Unshielded | 0.17mOhm | 150 nH | - | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|

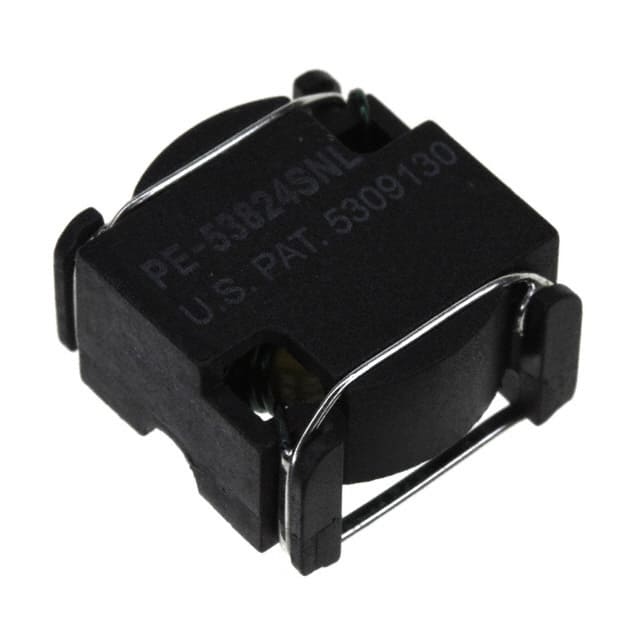

PE-53824SNLTFIXED IND 26UH 1.48A 100MOHM SMD |
958 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | ±20% | 1.48 A | - | - | Shielded | 100mOhm | 26 µH | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | - | -40°C ~ 130°C | - | 0.360" (9.14mm) |
|
SPM10054T-4R7M-HZFIXED IND 4.7UH 14.3A 12.15MOHM |
779 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | ±20% | 14.3 A | 6.6A | - | Shielded | 12.15mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.421" L x 0.394" W (10.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.213" (5.40mm) |
|
SBC7-332-361FIXED IND 3.3MH 360MA 3.51OHM TH |
1,000 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 360 mA | 630mA | - | Unshielded | 3.51Ohm Max | 3.3 mH | - | - | Through Hole | - | 0.591" Dia (15.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.551" (14.00mm) |
|
DRA127-151-RFIXED IND 150UH 1.524A 269 MOHM |
202 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.524 A | 2.83A | - | Shielded | 269mOhm | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.315" (8.00mm) |
|
MWSA1707S-220MTFIXED IND 22UH 23 MOHM SMD |
185 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | - | - | - | Shielded | 23mOhm Max | 22 µH | - | - | Surface Mount | - | - | - | -55°C ~ 125°C | 100 kHz | - |
