固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78438366033WE-MAIA SMT POWER INDUCTOR |
1,125 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 5 A | 7A | - | Shielded | 38.4mOhm Max | 3.3 µH | - | 23MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
78438366047WE-MAIA SMT POWER INDUCTOR |
1,000 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 4.1 A | 5.5A | - | Shielded | 63mOhm Max | 4.7 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
LQH32PH4R7NNCLFIXED IND 4.7UH 1.2A 186MOHM SMD |
2,887 | - |
|
数据表 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.2 A | 1.6A | 1210 (3225 Metric) | Shielded | 186mOhm Max | 4.7 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 1 MHz | 0.067" (1.70mm) |
|
VLS5045EX-680MFIXED IND 68UH 900MA 533MOHM SMD |
2,591 | - |
|
数据表 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 1.1A | - | Shielded | 533mOhm Max | 68 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.177" (4.50mm) |
|
VLS4020CX-6R8M-HINDUCTORS FOR POWER CIRCUITS, AU |
2,071 | - |
|
数据表 |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.84 A | 2.07A | 1616 | Shielded | 156mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
|
|
78438366022WE-MAIA SMT POWER INDUCTOR |
881 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 6 A | 9A | - | Shielded | 27.3mOhm Max | 2.2 µH | - | 31.5MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
784383660082WE-MAIA SMT POWER INDUCTOR |
831 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 8.8 A | 11A | - | Shielded | 9.6mOhm Max | 820 nH | - | 53.5MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
HCM1103-R12-RFIXED IND 120NH 30A 0.61MOHM SMD |
722 | - |
|
数据表 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 30 A | 75A | - | Shielded | 0.61mOhm Max | 120 nH | - | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

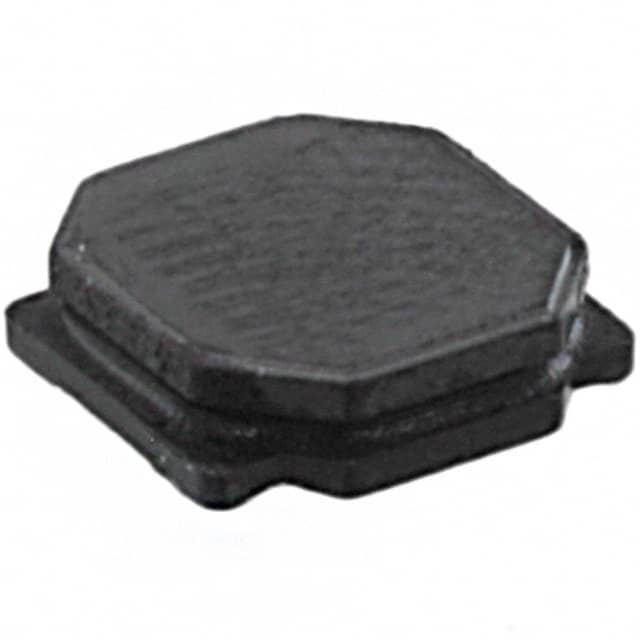

NR6020T3R3NFIXED IND 3.3UH 2.6A 48 MOHM SMD |
49,927 | - |
|
数据表 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±30% | 2.6 A | 2.8A | - | Shielded | 48mOhm Max | 3.3 µH | - | 55MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.079" (2.00mm) |
|
VLS252012HBU-4R7MFIXED IND 4.7UH 1.36A 295MOHM SM |
28,262 | - |
|
数据表 |
VLS-HBU | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.36 A | 1.67A | - | Shielded | 295mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
VLCF4020T-3R3N1R5FIXED IND 3.3UH 1.52A 78MOHM SMD |
27,746 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.52 A | 1.52A | - | Shielded | 78mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
SLM534214A-1R5MHFFIXED IND 1.5UH 44A 0.42MOHM SMD |
250 | - |
|
数据表 |
SLM534214 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 44 A | 25A | - | Shielded | 0.42mOhm | 1.5 µH | - | - | Surface Mount | - | 0.571" L x 0.531" W (14.50mm x 13.50mm) | - | -55°C ~ 130°C | 100 kHz | 0.421" (10.70mm) |
|
TFM201208ALD-1R0MTCAFIXED IND 1UH 2.4A 85 MOHM SMD |
25,848 | - |
|
数据表 |
TFM-ALD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 2.4 A | 2.9A | 0805 | Shielded | 85mOhm Max | 1 µH | - | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 1 MHz | 0.031" (0.80mm) |
|
PA5005.122NLTFIXED IND 1.2UH 18A 5.83MOHM SMD |
1,274 | - |
|
数据表 |
PA5005.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 18 A | 22A | - | Shielded | 5.83mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
IHHP0603ZHERR47M01IHHP-0603ZH-01 .47 20% ER E3 |
13,882 | - |
|
数据表 |
IHHP-0603ZH-01 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 3 A | 3.1A | 0603 | Shielded | 43mOhm Max | 470 nH | - | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 1 MHz | 0.031" (0.80mm) |
|
|
IHHP0805ZHER2R2M01IHHP-0805ZH-01 2.2 20% ER E3 |
12,052 | - |
|
数据表 |
IHHP-0805ZH-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 1.6 A | 1.9A | 0805 | Shielded | 110mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | -55°C ~ 125°C | 1 MHz | 0.031" (0.80mm) |
|
HM72A-101R5LFTR13FIXED IND 1.5UH 12A 5.8 MOHM SMD |
312 | - |
|
数据表 |
HM72A | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | ±20% | 12 A | 27.5A | - | Unshielded | 5.8mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.453" L x 0.413" W (11.50mm x 10.50mm) | - | -40°C ~ 130°C | 100 kHz | 0.157" (4.00mm) |
|
BSPQ000402030N9B00FIXED IND 0.9NH SMD |
0 | - |
|
数据表 |
BSPQ | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | ±0.1nH | 900 mA | - | 1005 | Unshielded | 50mOhm Max | 0.9 nH | 14 @ 500MHz | 14.6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.32mm) |
|
XFHCL4-R22MFIXED IND 220NH 51A 0.8 MOHM SMD |
250 | - |
|
数据表 |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | ±20% | 51 A | 80A | - | Shielded | 0.8mOhm Max | 220 nH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.504" W (13.50mm x 12.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
XFHCL4-R33MFIXED IND 330NH 42A 1.2 MOHM SMD |
250 | - |
|
数据表 |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | ±20% | 42 A | 80A | - | Shielded | 1.2mOhm Max | 330 nH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.504" W (13.50mm x 12.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
