固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

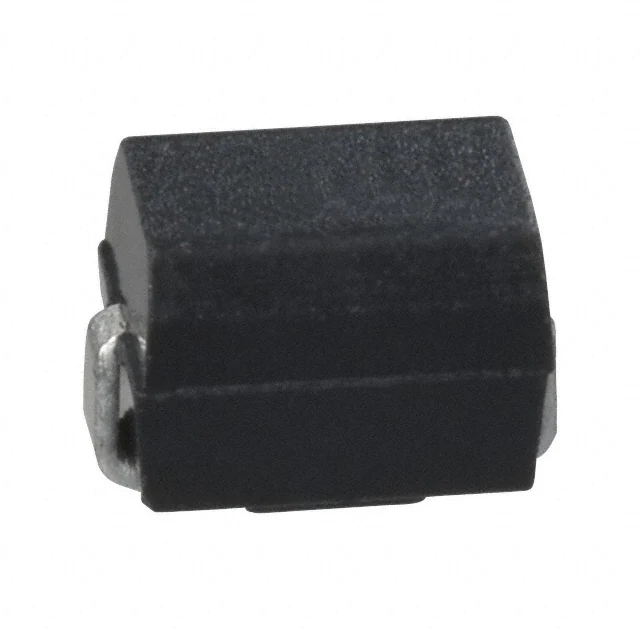

PM1812-R47KFIXED IND 470NH 545MA 320MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 545 mA | - | 1812 | Unshielded | 320mOhm Max | 470 nH | 40 @ 25.2MHz | 145MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 100°C | 25.2 MHz | 0.134" (3.40mm) |
|
|
PM1812-R56KFIXED IND 560NH 520MA 360MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 520 mA | - | 1812 | Unshielded | 360mOhm Max | 560 nH | 40 @ 25.2MHz | 140MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 100°C | 25.2 MHz | 0.134" (3.40mm) |
|
|
PM1812-R82KFIXED IND 820NH 475MA 450MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 475 mA | - | 1812 | Unshielded | 450mOhm Max | 820 nH | 40 @ 25.2MHz | 130MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 100°C | 25.2 MHz | 0.134" (3.40mm) |
|
|
PM1812-6R8JFIXED IND 6.8UH 285MA 1.2OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | ±5% | 285 mA | - | 1812 | Unshielded | 1.2Ohm Max | 6.8 µH | 50 @ 7.96MHz | 27MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.134" (3.40mm) |
|
|
PM1812-681JFIXED IND 680UH 50MA 30 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | ±5% | 50 mA | - | 1812 | Unshielded | 30Ohm Max | 680 µH | 30 @ 796kHz | 3MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 100°C | 796 kHz | 0.134" (3.40mm) |
|
PM1210-R15JFIXED IND 150NH 450MA 250MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | 1210 | Unshielded | 250mOhm Max | 150 nH | 28 @ 25.2MHz | 450MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 25.2 MHz | 0.087" (2.20mm) |
|
|
PM1210-R18JFIXED IND 180NH 450MA 280MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | 1210 | Unshielded | 280mOhm Max | 180 nH | 28 @ 25.2MHz | 400MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 25.2 MHz | 0.087" (2.20mm) |
|
|
PM1210-R22JFIXED IND 220NH 450MA 320MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | 1210 | Unshielded | 320mOhm Max | 220 nH | 28 @ 25.2MHz | 350MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 25.2 MHz | 0.087" (2.20mm) |
|
|
PM1210-R27JFIXED IND 270NH 450MA 360MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | 1210 | Unshielded | 360mOhm Max | 270 nH | 28 @ 25.2MHz | 320MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 25.2 MHz | 0.087" (2.20mm) |
|
|
PM1210-R33JFIXED IND 330NH 450MA 400MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | 1210 | Unshielded | 400mOhm Max | 330 nH | 28 @ 25.2MHz | 300MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 25.2 MHz | 0.087" (2.20mm) |
