固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM1008-R39KFIXED IND 390NH 470MA 1.12OHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 470 mA | - | 1008 (2520 Metric) | Unshielded | 1.12Ohm | 390 nH | 45 @ 100MHz | 500MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 25 MHz | 0.071" (1.80mm) |
|
|
PM1008-R47KFIXED IND 470NH 470MA 1.19OHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 470 mA | - | 1008 (2520 Metric) | Unshielded | 1.19Ohm | 470 nH | 45 @ 100MHz | 450MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 25 MHz | 0.071" (1.80mm) |
|
|
PM1008-R68KFIXED IND 680NH 400MA 1.47OHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 400 mA | - | 1008 (2520 Metric) | Unshielded | 1.47Ohm | 680 nH | 45 @ 100MHz | 375MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 25 MHz | 0.071" (1.80mm) |
|
|
PM1008-2R7KFIXED IND 2.7UH 290MA 3.2OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 290 mA | - | 1008 (2520 Metric) | Unshielded | 3.2Ohm | 2.7 µH | 22 @ 25MHz | 140MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.071" (1.80mm) |
|
|
PM1008-4R7KFIXED IND 4.7UH 260MA 4 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 260 mA | - | 1008 (2520 Metric) | Unshielded | 4Ohm | 4.7 µH | 20 @ 25MHz | 90MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.071" (1.80mm) |
|
PM125S-331MFIXED IND 330UH 570MA 800MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 570 mA | 780mA | - | Shielded | 800mOhm Max | 330 µH | - | 4MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.213" (5.40mm) |
|
RL895-333KFIXED IND 33MH 48MA 64.2 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 48 mA | - | - | Unshielded | 64.2Ohm Max | 33 mH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -30°C ~ 100°C | 1 kHz | 0.374" (9.50mm) |
|
|
RL895-473KFIXED IND 47MH 38MA 96.4 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 38 mA | - | - | Unshielded | 96.4Ohm Max | 47 mH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -30°C ~ 100°C | 1 kHz | 0.374" (9.50mm) |
|

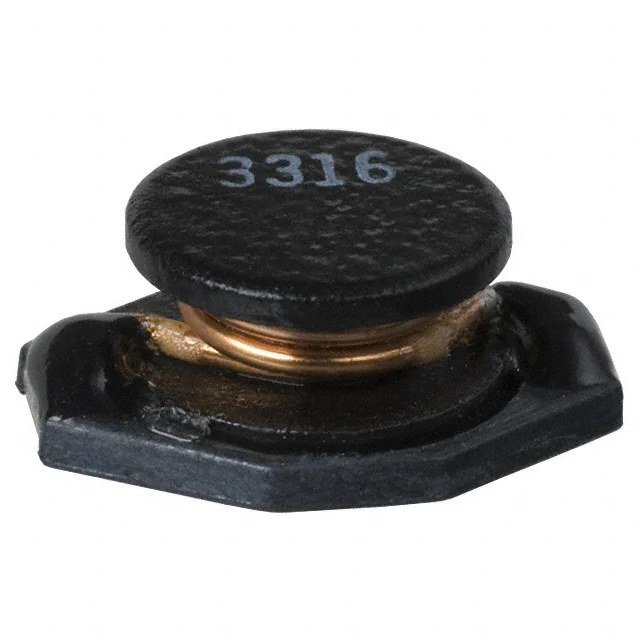

PM3316-681MFIXED IND 680UH 400MA 2.02OHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM3316 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 400mA | - | Unshielded | 2.02Ohm | 680 µH | - | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -55°C ~ 105°C | 100 kHz | 0.209" (5.30mm) |
|
PM3308-150MFIXED IND 15UH 1.5A 150 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 2A | - | Unshielded | 150mOhm Max | 15 µH | - | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
