固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

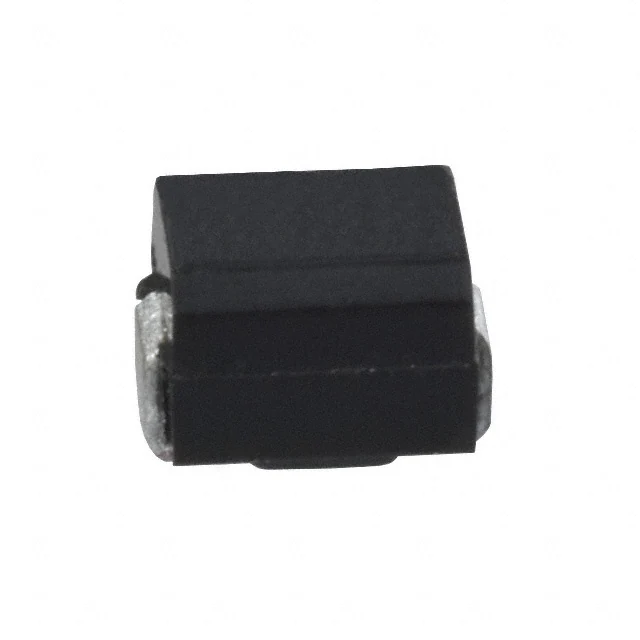

PM1210-121JFIXED IND 120UH 70MA 110 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 70 mA | - | 1210 | Unshielded | 110Ohm Max | 120 µH | 20 @ 796kHz | 10MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 796 kHz | 0.087" (2.20mm) |
|
|
PM1210-181JFIXED IND 180UH 60MA 17 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 60 mA | - | 1210 | Unshielded | 17Ohm Max | 180 µH | 20 @ 796kHz | 7MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 796 kHz | 0.087" (2.20mm) |
|

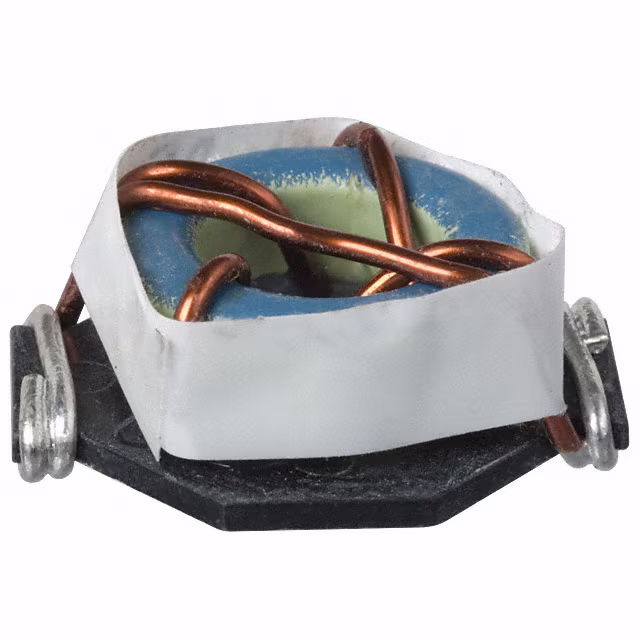

PM2110-5R6MFIXED IND 5.6UH 13.7A 5 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±20% | 13.7 A | - | - | Unshielded | 5mOhm Max | 5.6 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.570" (14.48mm) |
|
PM2110-390KFIXED IND 39UH 6.8A 20 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±10% | 6.8 A | - | - | Unshielded | 20mOhm Max | 39 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.620" (15.75mm) |
|
|
PM2110-331KFIXED IND 330UH 3.2A 90 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±10% | 3.2 A | - | - | Unshielded | 90mOhm Max | 330 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.600" (15.24mm) |
|
|
PM2110-391KFIXED IND 390UH 3.1A 98 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±10% | 3.1 A | - | - | Unshielded | 98mOhm Max | 390 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.600" (15.24mm) |
|
PM2120-331KFIXED IND 330UH 3.6A 100MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM2120 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±10% | 3.6 A | - | - | Unshielded | 100mOhm Max | 330 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.780" (19.81mm) |
|
1110-3R3MFIXED IND 3.3UH 9A 5 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 9 A | - | - | Unshielded | 5mOhm Max | 3.3 µH | - | - | Through Hole | - | 0.660" Dia (16.76mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
|
1110-271KFIXED IND 270UH 1.6A 300 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | - | Unshielded | 300mOhm Max | 270 µH | - | - | Through Hole | - | 0.660" Dia (16.76mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
|
1110-471KFIXED IND 470UH 800MA 636MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | - | - | Unshielded | 636mOhm Max | 470 µH | - | - | Through Hole | - | 0.660" Dia (16.76mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
