固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

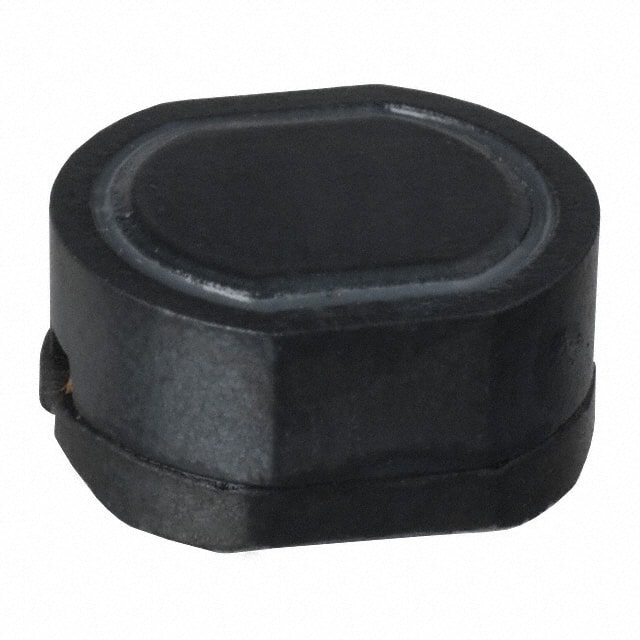

PM105S-391MFIXED IND 390UH 410MA 1.18OHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 410 mA | - | - | Shielded | 1.18Ohm Max | 390 µH | - | 4MHz | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | - | -30°C ~ 100°C | 1 kHz | 0.217" (5.50mm) |
|
PM1008-33NMFIXED IND 33NH 1A 140 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±20% | 1 A | - | 1008 (2520 Metric) | Unshielded | 140mOhm | 33 nH | 60 @ 350MHz | 1.6GHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 50 MHz | 0.071" (1.80mm) |
|
|
PM1008-39NMFIXED IND 39NH 1A 150 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±20% | 1 A | - | 1008 (2520 Metric) | Unshielded | 150mOhm | 39 nH | 60 @ 350MHz | 1.5GHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 50 MHz | 0.071" (1.80mm) |
|
|
PM1008-47NMFIXED IND 47NH 1A 160 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±20% | 1 A | - | 1008 (2520 Metric) | Unshielded | 160mOhm | 47 nH | 65 @ 350MHz | 1.5GHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 50 MHz | 0.071" (1.80mm) |
|
|
PM1008-82NKFIXED IND 82NH 1A 220 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 1 A | - | 1008 (2520 Metric) | Unshielded | 220mOhm | 82 nH | 60 @ 350MHz | 1GHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 50 MHz | 0.071" (1.80mm) |
|
|
PM1008-R12KFIXED IND 120NH 650MA 680MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 650 mA | - | 1008 (2520 Metric) | Unshielded | 680mOhm | 120 nH | 60 @ 350MHz | 950MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 25 MHz | 0.071" (1.80mm) |
|
|
PM1008-R15KFIXED IND 150NH 580MA 700MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 580 mA | - | 1008 (2520 Metric) | Unshielded | 700mOhm | 150 nH | 45 @ 100MHz | 850MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 25 MHz | 0.071" (1.80mm) |
|
|
PM1008-R18KFIXED IND 180NH 620MA 770MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 620 mA | - | 1008 (2520 Metric) | Unshielded | 770mOhm | 180 nH | 45 @ 100MHz | 750MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 25 MHz | 0.071" (1.80mm) |
|
|
PM1008-R22KFIXED IND 220NH 500MA 840MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 500 mA | - | 1008 (2520 Metric) | Unshielded | 840mOhm | 220 nH | 45 @ 100MHz | 700MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 25 MHz | 0.071" (1.80mm) |
|
|
PM1008-R27KFIXED IND 270NH 500MA 910MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 500 mA | - | 1008 (2520 Metric) | Unshielded | 910mOhm | 270 nH | 45 @ 100MHz | 600MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 25 MHz | 0.071" (1.80mm) |
