固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

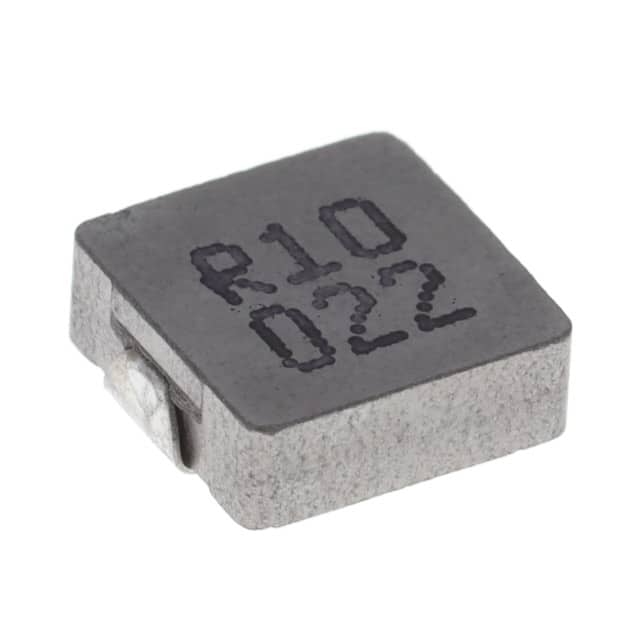

0624CDMCCDS-R10MCFIXED IND 100NH 40A 960U OHM SMD Sumida America Components Inc. |
109 | - |
|
数据表 |
0624CDMCCDS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 40 A | 40A | - | Shielded | 960µOhm Max | 100 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
CDRH6D28NP-270NCFIXED IND 27UH 1.05A 142MOHM SMD Sumida America Components Inc. |
64 | - |
|
数据表 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.05 A | - | - | Shielded | 142mOhm Max | 27 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH2D11NP-100NCFIXED IND 10UH 650MA 400MOHM SMD Sumida America Components Inc. |
638 | - |
|
数据表 |
CDRH2D11 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 650 mA | 350mA | - | Shielded | 400mOhm Max | 10 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.043" (1.10mm) |
|
CDRH4D18NP-4R7NCFIXED IND 4.7UH 840MA 162MOHM SM Sumida America Components Inc. |
5,959 | - |
|
数据表 |
CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 840 mA | - | - | Shielded | 162mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.079" (2.00mm) |
|
0630CDMCDDS-1R2MCFIXED IND 1.2UH SMD Sumida America Components Inc. |
753 | - |
|
数据表 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 12.5 A | 17.8A | SMD | Shielded | 12mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
RCH664NP-220KFIXED IND 22UH 1.27A 110 MOHM TH Sumida America Components Inc. |
364 | - |
|
数据表 |
RCH-664 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.27 A | - | - | Unshielded | 110mOhm Max | 22 µH | - | - | Through Hole | - | 0.236" Dia (6.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.256" (6.50mm) |
|
CDRH3D18NP-220NCFIXED IND 22UH 600MA 424MOHM SMD Sumida America Components Inc. |
939 | - |
|
数据表 |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 600 mA | 600mA | - | Shielded | 424mOhm Max | 22 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
CR43NP-3R9MCFIXED IND 3.9UH 1.33A 93.7 MOHM Sumida America Components Inc. |
941 | - |
|
数据表 |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.33 A | - | - | Unshielded | 93.7mOhm Max | 3.9 µH | - | 52.6MHz | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.138" (3.50mm) |
|
0618CDMCCDS-R10MCFIXED IND 100NH 25A 2.4MOHM SMD Sumida America Components Inc. |
906 | - |
|
数据表 |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 25 A | 34A | - | Shielded | 2.4mOhm Max | 100 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
CDRH2D11/HPNP-4R7NCFIXED IND 4.7UH 850MA 238MOHM SM Sumida America Components Inc. |
1,453 | - |
|
数据表 |
CDRH2D11/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 850 mA | 750mA | - | Shielded | 238mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.043" (1.10mm) |
