固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCR875DNP-332KFIXED IND 3.3MH 130MA 9.74OHM TH Sumida America Components Inc. |
386 | - |
|
数据表 |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | ±10% | 130 mA | - | - | Shielded | 9.74Ohm Max | 3.3 mH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 85°C | 1 kHz | 0.295" (7.50mm) |
|
RCR875DNP-680KFIXED IND 68UH 890MA 210 MOHM TH Sumida America Components Inc. |
164 | - |
|
数据表 |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | ±10% | 890 mA | - | - | Shielded | 210mOhm Max | 68 µH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 85°C | 2.52 MHz | 0.295" (7.50mm) |
|
0618CDMCCDS-1R5MCFIXED IND 1.5UH 7A 24 MOHM SMD Sumida America Components Inc. |
49 | - |
|
数据表 |
0618CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 7 A | 12A | - | Shielded | 24mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
CR75NP-2R2MCFIXED IND 2.2UH 4.5A 19.5MOHM SM Sumida America Components Inc. |
1,630 | - |
|
数据表 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.5 A | - | - | Unshielded | 19.5mOhm Max | 2.2 µH | - | 36.4MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 100°C | 7.96 MHz | 0.217" (5.50mm) |
|
CDRH8D38NP-330NCFIXED IND 33UH 1.6A 157 MOHM SMD Sumida America Components Inc. |
1,082 | - |
|
数据表 |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.6 A | 1.75A | - | Shielded | 157mOhm Max | 33 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
CDRH2D18/HPNP-3R3NCFIXED IND 3.3UH 1.55A 86MOHM SMD Sumida America Components Inc. |
259 | - |
|
数据表 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.55 A | 1.45A | - | Shielded | 86mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
CDRH4D16FB/NP-4R7NCFIXED IND 4.7UH 2A 58.5 MOHM SMD Sumida America Components Inc. |
178 | - |
|
数据表 |
CDRH4D16FB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±25% | 2 A | 1.2A | - | Shielded | 58.5mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
|
CDRH8D43NP-2R0NCFIXED IND 2UH 5.5A 14 MOHM SMD Sumida America Components Inc. |
100 | - |
|
数据表 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 5.5 A | 7A | - | Shielded | 14mOhm Max | 2 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.177" (4.50mm) |
|

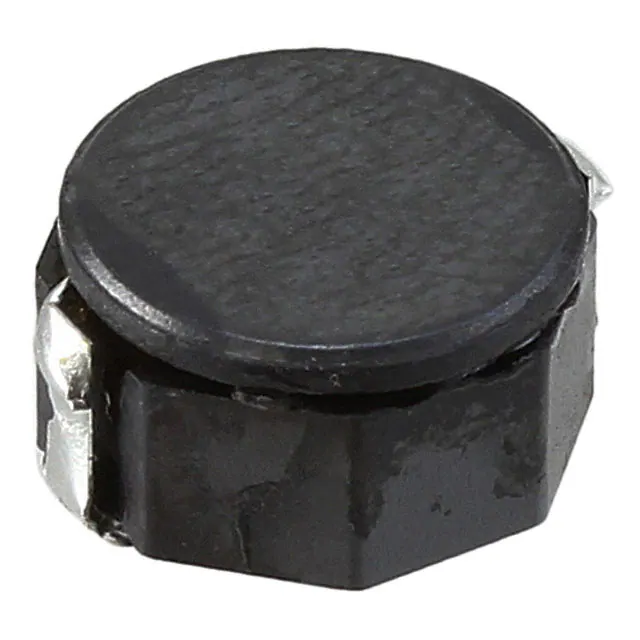

CDRH8D43HPNP-2R7NCFIXED IND 2.7UH 5.1A 19.5MOHM SM Sumida America Components Inc. |
1,000 | - |
|
数据表 |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 5.1 A | 8.6A | - | Shielded | 19.5mOhm Max | 2.7 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.185" (4.70mm) |
|

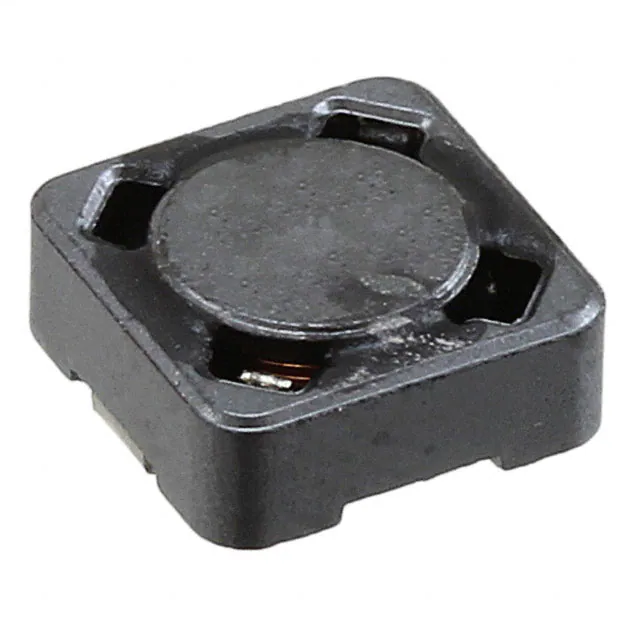

CDRH73NP-100MC-BFIXED IND 10UH 1.68A 72 MOHM SMD Sumida America Components Inc. |
97 | - |
|
数据表 |
CDRH73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.68 A | - | - | Shielded | 72mOhm Max | 10 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 100°C | 1 kHz | 0.134" (3.40mm) |
