固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDH53NP-101JCFIXED IND 100UH 370MA 1.57OHM SM Sumida America Components Inc. |
3,327 | - |
|
数据表 |
CDH53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 370 mA | - | - | Unshielded | 1.57Ohm Max | 100 µH | - | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | - | -40°C ~ 100°C | 1 kHz | 0.126" (3.20mm) |
|
CDRH8D38NP-2R5NCFIXED IND 2.5UH 6A 17.5 MOHM SMD Sumida America Components Inc. |
658 | - |
|
数据表 |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 6 A | 6.5A | - | Shielded | 17.5mOhm Max | 2.5 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
|
CDRH8D38NP-680NCFIXED IND 68UH 1.08A 290MOHM SMD Sumida America Components Inc. |
33 | - |
|
数据表 |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.08 A | 1.3A | - | Shielded | 290mOhm Max | 68 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
CDR7D28MNNP-470NCFIXED IND 47UH 1A 275 MOHM SMD Sumida America Components Inc. |
1,893 | - |
|
数据表 |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1 A | 1.05A | - | Shielded | 275mOhm Max | 47 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH6D28NP-120NCFIXED IND 12UH 1.55A 70 MOHM SMD Sumida America Components Inc. |
10,249 | - |
|
数据表 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.55 A | - | - | Shielded | 70mOhm Max | 12 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH125L125NP-470MCFIXED IND 47UH 2.42A 93MOHM SMD Sumida America Components Inc. |
501 | - |
|
数据表 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 2.42 A | 2.44A | - | Shielded | 93mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|

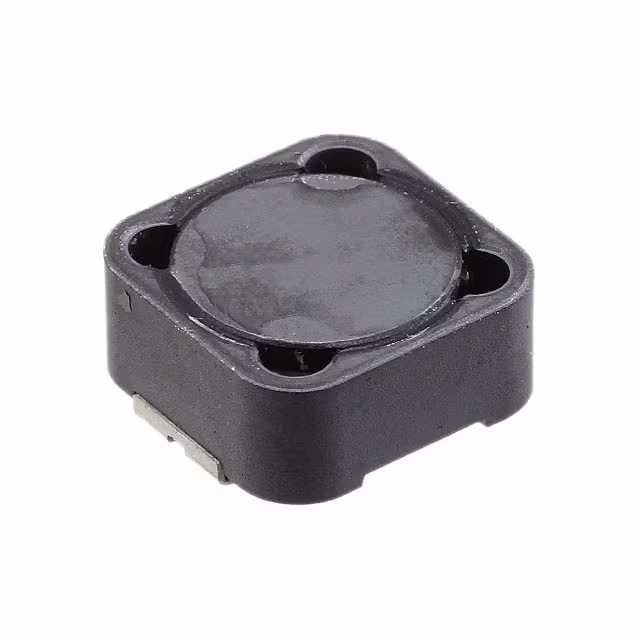

CDRH125L125NP-100MCFIXED IND 10UH 5.3A 25 MOHM SMD Sumida America Components Inc. |
500 | - |
|
数据表 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 5.3 A | 5.2A | - | Shielded | 25mOhm Max | 10 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
CDRH125L125NP-150MCFIXED IND 15UH 4.5A 33.8MOHM SMD Sumida America Components Inc. |
514 | - |
|
数据表 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 4.5 A | 4.4A | - | Shielded | 33.8mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
CDRH3D11HPNP-100NCFIXED IND 10UH 600MA 413MOHM SMD Sumida America Components Inc. |
4,802 | - |
|
数据表 |
CDRH3D11/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 600 mA | 800mA | - | Shielded | 413mOhm Max | 10 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.047" (1.20mm) |
|
CDRH80D65BT150NP-221MCFIXED IND 220UH 730MA 475MOHM SM Sumida America Components Inc. |
1,000 | - |
|
数据表 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 730 mA | 940mA | - | Shielded | 475mOhm | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.339" L x 0.323" W (8.60mm x 8.20mm) | - | -55°C ~ 150°C | 100 kHz | 0.268" (6.80mm) |
