固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH2D18/HPNP-6R3NCFIXED IND 6.3UH 1.15A 160MOHM SM Sumida America Components Inc. |
240 | - |
|
数据表 |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.15 A | 1.05A | - | Shielded | 160mOhm Max | 6.3 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
CDRH8D28NP-4R7NCFIXED IND 4.7UH 4.5A 24.7MOHM SM Sumida America Components Inc. |
1,341 | - |
|
数据表 |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 4.5 A | 3.4A | - | Shielded | 24.7mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|

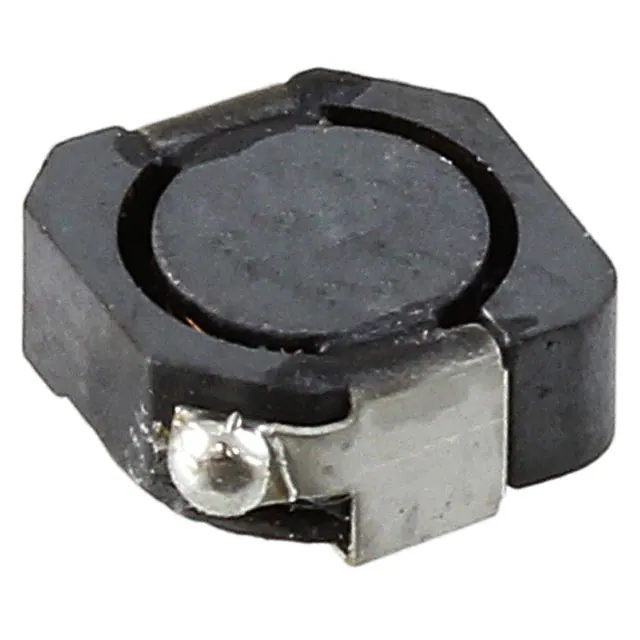

CDRH5D28RH125NP-220MCFIXED IND 22UH 900MA 266MOHM SMD Sumida America Components Inc. |
97 | - |
|
数据表 |
CDRH5D28R/H125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 900 mA | 1.7A | - | Shielded | 266mOhm Max | 22 µH | - | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH105RNP-4R7NCFIXED IND 4.7UH 6.1A 12.3MOHM SM Sumida America Components Inc. |
979 | - |
|
数据表 |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 6.1 A | 6.4A | - | Shielded | 12.3mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.201" (5.10mm) |
|
RCH8011NP-680LFIXED IND 68UH 1.9A 138 MOHM TH Sumida America Components Inc. |
441 | - |
|
数据表 |
RCH8011 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±15% | 1.9 A | 1.7A | - | Unshielded | 138mOhm Max | 68 µH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -30°C ~ 100°C | 100 kHz | 0.425" (10.80mm) |
|
RCH855NP-220KFIXED IND 22UH 770MA 120 MOHM TH Sumida America Components Inc. |
165 | - |
|
数据表 |
RCH-855 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 770 mA | 1.7A | - | Unshielded | 120mOhm Max | 22 µH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.217" (5.50mm) |
|
CDRH4D18NP-150NCFIXED IND 15UH 500MA 240MOHM SMD Sumida America Components Inc. |
889 | - |
|
数据表 |
CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 500 mA | - | - | Shielded | 240mOhm Max | 15 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.079" (2.00mm) |
|
RCH895NP-101KFIXED IND 100UH 720MA 190MOHM TH Sumida America Components Inc. |
622 | - |
|
数据表 |
RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 720 mA | 900mA | - | Unshielded | 190mOhm Max | 100 µH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 100°C | 1 kHz | 0.374" (9.50mm) |
|
RCH895NP-330KFIXED IND 33UH 1.1A 70 MOHM TH Sumida America Components Inc. |
600 | - |
|
数据表 |
RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | 1.4A | - | Unshielded | 70mOhm Max | 33 µH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.374" (9.50mm) |
|
RCH875NP-102KFIXED IND 1MH 180MA 2.94 OHM TH Sumida America Components Inc. |
543 | - |
|
数据表 |
RCH-875 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | 270mA | - | Unshielded | 2.94Ohm Max | 1 mH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 100°C | 1 kHz | 0.295" (7.50mm) |
