固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH127L125NP-3R6NCFIXED IND 3.6UH 8.3A 11MOHM SMD Sumida America Components Inc. |
79 | - |
|
数据表 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±30% | 8.3 A | 13.8A | - | Shielded | 11mOhm Max | 3.6 µH | - | - | Surface Mount | AEC-Q200 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
CDRH127/LDNP-151MCFIXED IND 150UH 1.8A 227MOHM SMD Sumida America Components Inc. |
30 | - |
|
数据表 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.8 A | - | - | Shielded | 227mOhm Max | 150 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 100°C | 1 kHz | 0.315" (8.00mm) |
|
CDRH60D45BT150NP-3R3NCFIXED IND 3.3UH 3.7A 23.4MOHM SM Sumida America Components Inc. |
1,000 | - |
|
数据表 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 3.7 A | 5A | - | Shielded | 23.4mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.260" L x 0.248" W (6.60mm x 6.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
125CDMCCDS-100MCFIXED IND 10UH 9A 22 MOHM SMD Sumida America Components Inc. |
65 | - |
|
数据表 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 9 A | 14A | SMD | Shielded | 22mOhm Max | 10 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
CDEP147NP-3R1MC-125FIXED IND 3.1UH 17.5A 3.23 MOHM Sumida America Components Inc. |
41 | - |
|
数据表 |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 17.5 A | 16A | - | Shielded | 3.23mOhm Max | 3.1 µH | - | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
55081013400FIXED IND 100NH 350MA 260MOHM SM Sumida America Components Inc. |
1,405 | - |
|
数据表 |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 350 mA | - | 0805 (2012 Metric) | Unshielded | 260mOhm Max | 100 nH | 40 @ 150MHz | 1.31GHz | Surface Mount | - | 0.087" L x 0.055" W (2.20mm x 1.40mm) | - | -55°C ~ 125°C | 150 MHz | 0.056" (1.42mm) |
|
CDRH4D18CLDNP-101PCFIXED IND 100UH 350MA 962MOHM SM Sumida America Components Inc. |
890 | - |
|
数据表 |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 350 mA | 200mA | - | Shielded | 962mOhm Max | 100 µH | - | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|

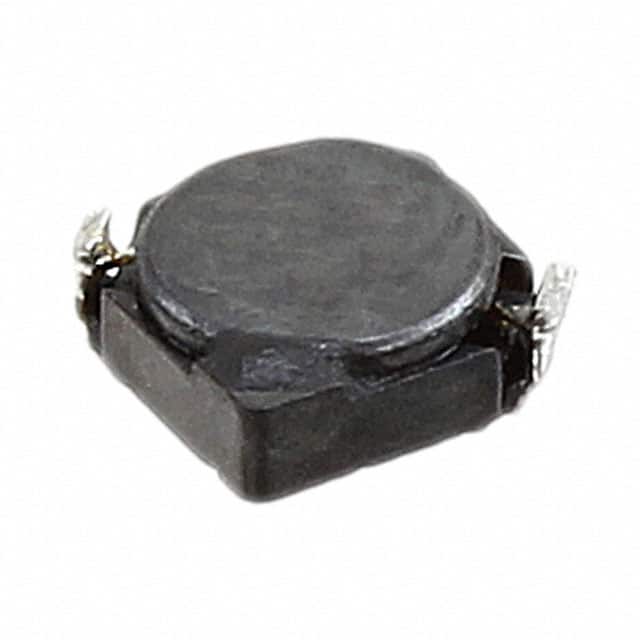

CDRH3D14NP-100NCFIXED IND 10UH 690MA 262MOHM SMD Sumida America Components Inc. |
444 | - |
|
数据表 |
CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 690 mA | 750mA | - | Shielded | 262mOhm Max | 10 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|

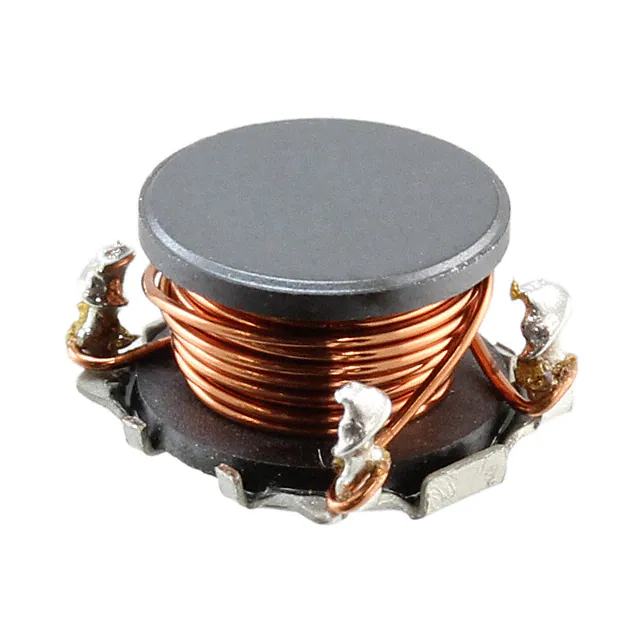

CDH74NP-470KCFIXED IND 47UH 1.2A 230 MOHM SMD Sumida America Components Inc. |
105 | - |
|
数据表 |
CDH74 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.2 A | - | - | Unshielded | 230mOhm Max | 47 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 100°C | 1 kHz | 0.205" (5.20mm) |
|

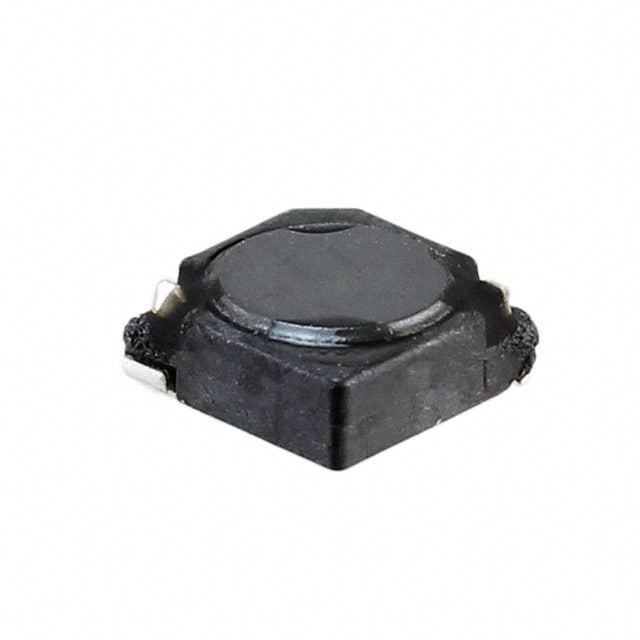

CDC5D23BNP-150KCFIXED IND 15UH 880MA 166MOHM SMD Sumida America Components Inc. |
60 | - |
|
数据表 |
CDC5D23B | 2323 (5858 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 880 mA | - | - | Unshielded | 166mOhm Max | 15 µH | - | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 100°C | 100 kHz | 0.098" (2.50mm) |
