固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

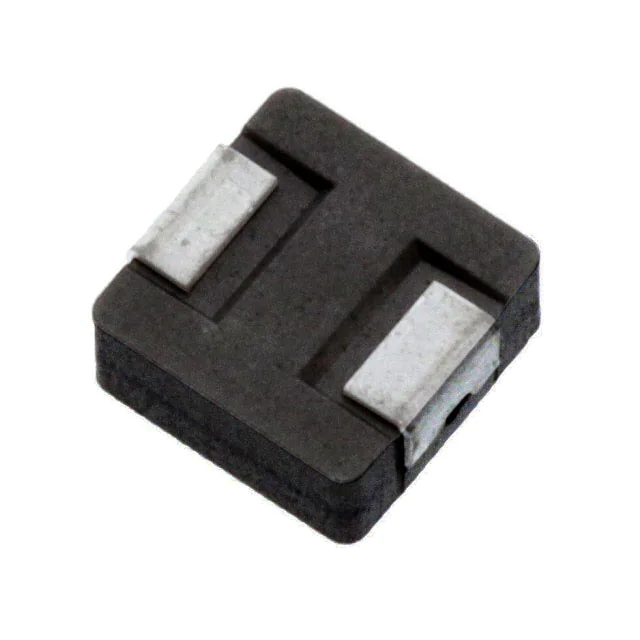

0640CDMCCDS-2R2MCFIXED IND 2.2UH 12A 10.8MOHM SMD Sumida America Components Inc. |
8,020 | - |
|
数据表 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 12 A | 9.4A | - | Shielded | 10.8mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
0640CDMCCDS-220MCFIXED IND 220NH 3.3A 133MOHM SMD Sumida America Components Inc. |
4,474 | - |
|
数据表 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.3 A | 3.2A | - | Shielded | 133mOhm Max | 22 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
0640CDMCCDS-150MCFIXED IND 15UH 3.8A 89 MOHM SMD Sumida America Components Inc. |
26,008 | - |
|
数据表 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.8 A | 3.9A | - | Shielded | 89mOhm Max | 15 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

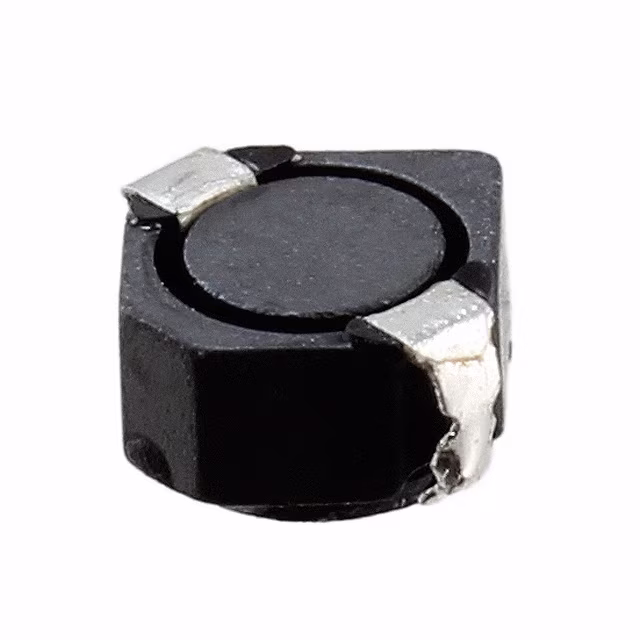

CDRH3D23NP-4R7PCFIXED IND 4.7UH 1.9A 68.8MOHM SM Sumida America Components Inc. |
222,312 | - |
|
数据表 |
CDRH3D23 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.9 A | 1.3A | - | Shielded | 68.8mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
CR43NP-100MCFIXED IND 10UH 1.04A 182MOHM SMD Sumida America Components Inc. |
35,773 | - |
|
数据表 |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.04 A | - | - | Unshielded | 182mOhm Max | 10 µH | - | 34.8MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.138" (3.50mm) |
|
|
CDRH3D23NP-1R0PCFIXED IND 1UH 3.1A 25 MOHM SMD Sumida America Components Inc. |
12,446 | - |
|
数据表 |
CDRH3D23 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 3.1 A | 2.8A | - | Shielded | 25mOhm Max | 1 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.098" (2.50mm) |
|
CD54NP-220MCFIXED IND 22UH 1.11A 180MOHM SMD Sumida America Components Inc. |
11,411 | - |
|
数据表 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.11 A | - | - | Unshielded | 180mOhm Max | 22 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.191" (4.85mm) |
|
RCR875DNP-101KFIXED IND 100UH 740MA 320MOHM TH Sumida America Components Inc. |
8,596 | - |
|
数据表 |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | ±10% | 740 mA | - | - | Shielded | 320mOhm Max | 100 µH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 85°C | 1 kHz | 0.295" (7.50mm) |
|
CR32NP-220KCFIXED IND 22UH 500MA 470MOHM SMD Sumida America Components Inc. |
5,384 | - |
|
数据表 |
CR32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 500 mA | - | - | Unshielded | 470mOhm Max | 22 µH | - | - | Surface Mount | - | 0.150" L x 0.138" W (3.80mm x 3.50mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
|
CD54NP-470LCFIXED IND 47UH 720MA 370MOHM SMD Sumida America Components Inc. |
5,241 | - |
|
数据表 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 720 mA | - | - | Unshielded | 370mOhm Max | 47 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.191" (4.85mm) |
