固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0630CDMCDDS-100MCFIXED IND 10UH 4.5A 62 MOHM SMD Sumida America Components Inc. |
7,200 | - |
|
数据表 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 4.5 A | 4.6A | SMD | Shielded | 62mOhm Max | 10 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCCDS-6R8MCFIXED IND 6.8UH 5A 48 MOHM SMD Sumida America Components Inc. |
6,271 | - |
|
数据表 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 5 A | 6.3A | SMD | Shielded | 48mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH4D28NP-101NCFIXED IND 100UH 290MA 1.02OHM SM Sumida America Components Inc. |
6,185 | - |
|
数据表 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 290 mA | - | - | Shielded | 1.02Ohm Max | 100 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH3D18NP-4R7NCFIXED IND 4.7UH 1.35A 107.5 MOHM Sumida America Components Inc. |
3,124 | - |
|
数据表 |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.35 A | 1.35A | - | Shielded | 107.5mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
CDRH3D16NP-220NCFIXED IND 22UH 400MA 430MOHM SMD Sumida America Components Inc. |
48,973 | - |
|
数据表 |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 400 mA | - | - | Shielded | 430mOhm Max | 22 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 100°C | 100 kHz | 0.071" (1.80mm) |
|
|
CDRH4D28NP-6R8NCFIXED IND 6.8UH 1.12A 108.9 MOHM Sumida America Components Inc. |
22,354 | - |
|
数据表 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.12 A | - | - | Shielded | 108.9mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH6D38NP-5R0NCFIXED IND 5UH 2.9A 24 MOHM SMD Sumida America Components Inc. |
10,649 | - |
|
数据表 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2.9 A | - | - | Shielded | 24mOhm Max | 5 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|

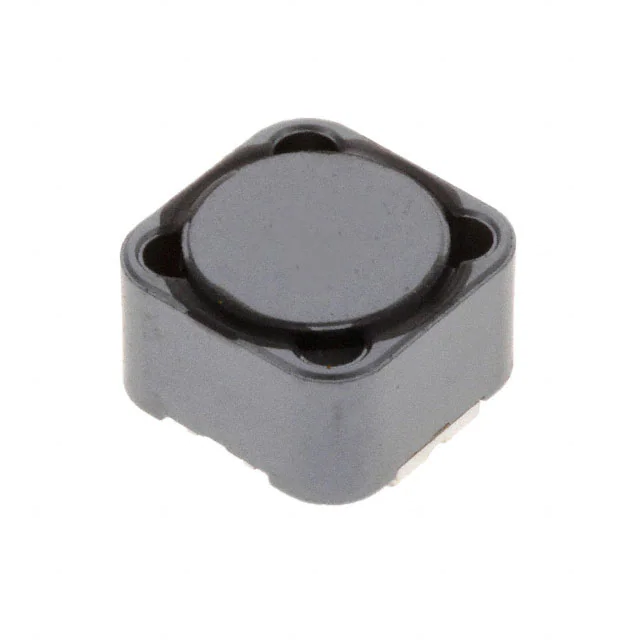

CDRH127L125NP-100MCFIXED IND 10UH 6A 23.6 MOHM SMD Sumida America Components Inc. |
8,954 | - |
|
数据表 |
CDRH127/L125 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 6 A | 8.4A | - | Shielded | 23.6mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
0630CDMCDDS-3R3MCFIXED IND 3.3UH 8.4A 22MOHM SMD Sumida America Components Inc. |
6,925 | - |
|
数据表 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 6.3 A | 11.5A | SMD | Shielded | 30mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
CDRH4D28NP-220NCFIXED IND 22UH 700MA 235MOHM SMD Sumida America Components Inc. |
6,171 | - |
|
数据表 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 700 mA | - | - | Shielded | 235mOhm Max | 22 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
