固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0630CDMCDDS-2R2MCFIXED IND 2.2UH 9.3A 15MOHM SMD Sumida America Components Inc. |
5,039 | - |
|
数据表 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 9.2 A | 14.4A | SMD | Shielded | 20mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

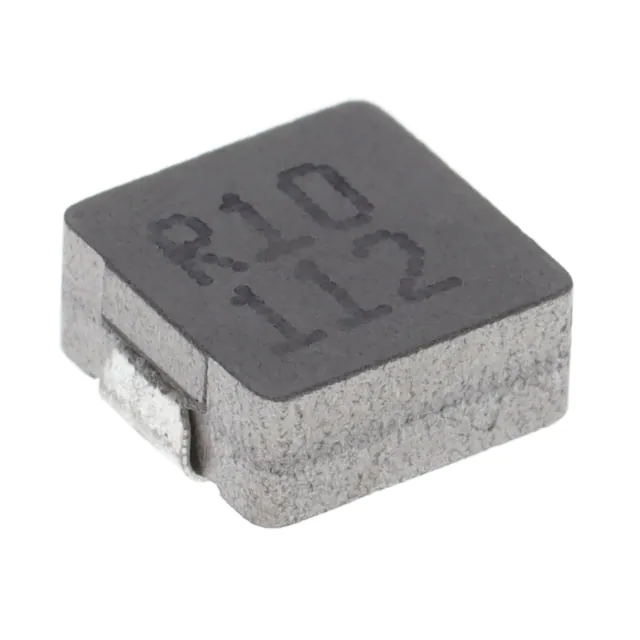

0630CDMCCDS-R10MCFIXED IND 100NH 40A 1.08MOHM SMD Sumida America Components Inc. |
4,470 | - |
|
数据表 |
0630CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 40 A | 61.2A | - | Shielded | 1.08mOhm Max | 100 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCCDS-220MCFIXED IND 22UH 2.3A 200MOHM SMD Sumida America Components Inc. |
3,807 | - |
|
数据表 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 2.3 A | 4A | SMD | Shielded | 200mOhm Max | 22 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH6D38NP-220NCFIXED IND 22UH 1.3A 96 MOHM SMD Sumida America Components Inc. |
3,661 | - |
|
数据表 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.3 A | - | - | Shielded | 96mOhm Max | 22 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
|
CDRH6D38NP-3R3NCFIXED IND 3.3UH 3.5A 20 MOHM SMD Sumida America Components Inc. |
5,921 | - |
|
数据表 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 3.5 A | - | - | Shielded | 20mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
0630CDMCDDS-4R7MCFIXED IND 4.7UH 6.3A 33MOHM SMD Sumida America Components Inc. |
1,965 | - |
|
数据表 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 5.5 A | 10.5A | SMD | Shielded | 40mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
177CDMCCDS-R47MCFIXED IND 470NH 57A 0.9MOHM SMD Sumida America Components Inc. |
148 | - |
|
数据表 |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 57 A | 85.5A | SMD | Shielded | 0.9mOhm Max | 470 nH | - | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
177CDMCCDS-220MCFIXED IND 22UH 8.8A 25.3MOHM SMD Sumida America Components Inc. |
128 | - |
|
数据表 |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 8.8 A | 16A | SMD | Shielded | 25.3mOhm Max | 22 µH | - | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
CDRH2D11NP-4R7NCFIXED IND 4.7UH 880MA 170MOHM SM Sumida America Components Inc. |
38,850 | - |
|
数据表 |
CDRH2D11 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 880 mA | 500mA | - | Shielded | 170mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.043" (1.10mm) |
|
CDRH4D22HPNP-100MCFIXED IND 10UH 1.3A 143.8MOHM SM Sumida America Components Inc. |
12,032 | - |
|
数据表 |
CDRH4D22/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.3 A | 1.5A | - | Shielded | 143.8mOhm Max | 10 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.094" (2.40mm) |
