固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0518CDMCCDS-2R2MCFIXED IND 2.2UH 5.2A 35MOHM SMD Sumida America Components Inc. |
3,093 | - |
|
数据表 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 5.2 A | 7.1A | SMD | Shielded | 35mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
0518CDMCCDS-100MCFIXED IND 10UH 2.3A 155MOHM SMD Sumida America Components Inc. |
2,787 | - |
|
数据表 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 2.3 A | 3.5A | SMD | Shielded | 155mOhm Max | 10 µH | - | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|

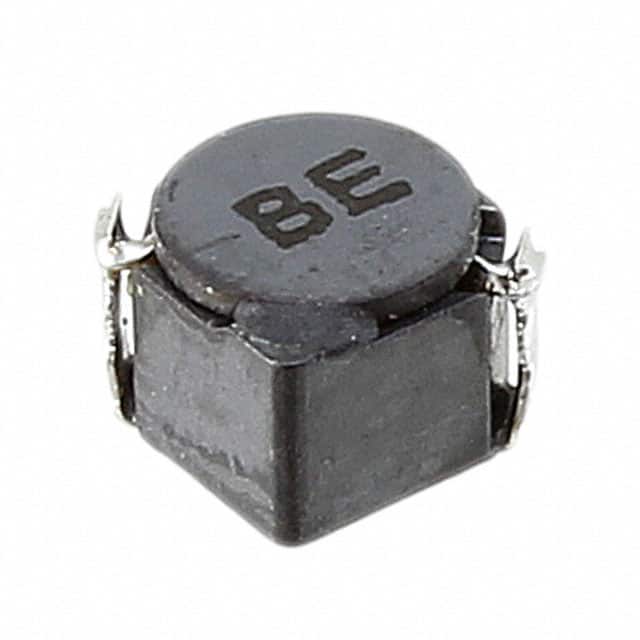

CDRH3D28/LDNP-470NCFIXED IND 47UH 810MA 305MOHM SMD Sumida America Components Inc. |
1,642 | - |
|
数据表 |
CDRH3D28/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 810 mA | 230mA | - | Shielded | 305mOhm Max | 47 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH5D18NP-4R1NCFIXED IND 4.1UH 1.95A 57MOHM SMD Sumida America Components Inc. |
25,755 | - |
|
数据表 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.95 A | - | - | Shielded | 57mOhm Max | 4.1 µH | - | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
CR54NP-100MCFIXED IND 10UH 1.44A 100MOHM SMD Sumida America Components Inc. |
3,541 | - |
|
数据表 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.44 A | - | - | Unshielded | 100mOhm Max | 10 µH | - | 30.6MHz | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.191" (4.85mm) |
|
|
CR54NP-150MCFIXED IND 15UH 1.3A 140 MOHM SMD Sumida America Components Inc. |
1,017 | - |
|
数据表 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | - | - | Unshielded | 140mOhm Max | 15 µH | - | 25.9MHz | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.191" (4.85mm) |
|
177CDMCCDS-6R8MCFIXED IND 6.8UH 16.7A 7.13 MOHM Sumida America Components Inc. |
169 | - |
|
数据表 |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 16.7 A | 24.7A | SMD | Shielded | 7.13mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
CDRH5D18NP-100NCFIXED IND 10UH 1.2A 124 MOHM SMD Sumida America Components Inc. |
42,529 | - |
|
数据表 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.2 A | - | - | Shielded | 124mOhm Max | 10 µH | - | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
CR54NP-220MCFIXED IND 22UH 1.11A 180MOHM SMD Sumida America Components Inc. |
6,036 | - |
|
数据表 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.11 A | - | - | Unshielded | 180mOhm Max | 22 µH | - | 19.5MHz | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.191" (4.85mm) |
|
|
CR54NP-101KCFIXED IND 100UH 520MA 700MOHM SM Sumida America Components Inc. |
3,156 | - |
|
数据表 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 520 mA | - | - | Unshielded | 700mOhm Max | 100 µH | - | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | - | -40°C ~ 100°C | 1 kHz | 0.191" (4.85mm) |
