固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH6D28NP-3R9NCFIXED IND 3.9UH 2.6A 27 MOHM SMD Sumida America Components Inc. |
149,891 | - |
|
数据表 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2.6 A | - | - | Shielded | 27mOhm Max | 3.9 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
|
CDRH6D28NP-330NCFIXED IND 33UH 970MA 165MOHM SMD Sumida America Components Inc. |
79,006 | - |
|
数据表 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 970 mA | - | - | Shielded | 165mOhm Max | 33 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
|
CDRH6D28NP-470NCFIXED IND 47UH 800MA 238MOHM SMD Sumida America Components Inc. |
25,917 | - |
|
数据表 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 800 mA | - | - | Shielded | 238mOhm Max | 47 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
0624CDMCCDS-100MCFIXED IND 10UH 3.1A 101MOHM SMD Sumida America Components Inc. |
3,863 | - |
|
数据表 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.1 A | 5.5A | SMD | Shielded | 101mOhm Max | 10 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
0624CDMCCDS-4R7MCFIXED IND 4.7UH 4.8A 54MOHM SMD Sumida America Components Inc. |
2,326 | - |
|
数据表 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 4.8 A | 7.6A | SMD | Shielded | 54mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
CDRH3D16/HPNP-2R2NCFIXED IND 2.2UH 2.3A 59 MOHM SMD Sumida America Components Inc. |
168,667 | - |
|
数据表 |
CDRH3D16/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2.3 A | 1.75A | - | Shielded | 59mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
|

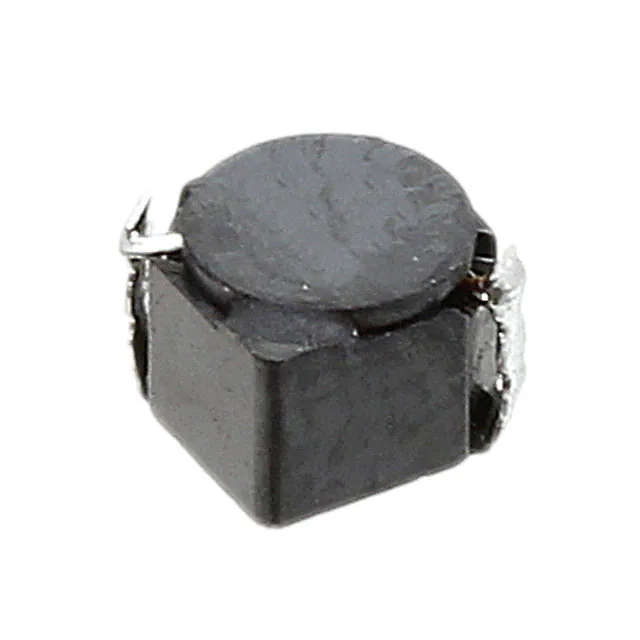

CDRH3D28NP-100NCFIXED IND 10UH 1.18A 145MOHM SMD Sumida America Components Inc. |
19,138 | - |
|
数据表 |
CDRH3D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.18 A | 1.05A | - | Shielded | 145mOhm Max | 10 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH3D28NP-330NCFIXED IND 33UH 630MA 481MOHM SMD Sumida America Components Inc. |
18,950 | - |
|
数据表 |
CDRH3D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 630 mA | 580mA | - | Shielded | 481mOhm Max | 33 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
|
|
CDRH6D28NP-6R0NCFIXED IND 6UH 2.25A 35 MOHM SMD Sumida America Components Inc. |
10,971 | - |
|
数据表 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2.25 A | - | - | Shielded | 35mOhm Max | 6 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH3D16/HPNP-100MCFIXED IND 10UH 1A 230 MOHM SMD Sumida America Components Inc. |
3,843 | - |
|
数据表 |
CDRH3D16/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1 A | 840mA | - | Shielded | 230mOhm Max | 10 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
