固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

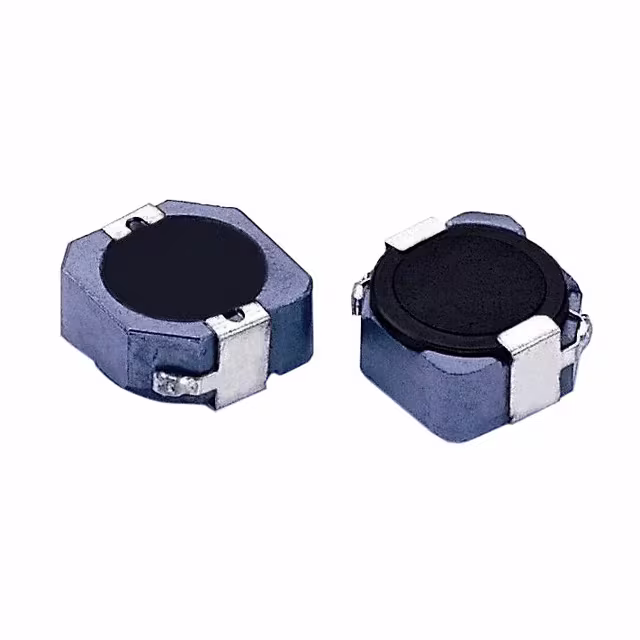

SCRH105RY-330FIXED IND 33UH 2.48A 84 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.48 A | 2.4A | - | Shielded | 84mOhm Max | 33 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-331FIXED IND 330UH 760MA 812MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 760 mA | 750mA | - | Shielded | 812mOhm Max | 330 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-390FIXED IND 39UH 2.35A 106MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.35 A | 2.3A | - | Shielded | 106mOhm Max | 39 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-391FIXED IND 390UH 680MA 953MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 680 mA | 700mA | - | Shielded | 953mOhm Max | 390 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-3R3FIXED IND 3.3UH 8.2A 11 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 8.2 A | 8.8A | - | Shielded | 11mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-470FIXED IND 47UH 2.11A 130MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2.11 A | 2A | - | Shielded | 130mOhm Max | 47 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-471FIXED IND 470UH 600MA 1.3OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 600 mA | 600mA | - | Shielded | 1.3Ohm Max | 470 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-4R7FIXED IND 4.7UH 7.3A 13 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 7.3 A | 8A | - | Shielded | 13mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-560FIXED IND 56UH 2A 149 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 2 A | 1.9A | - | Shielded | 149mOhm Max | 56 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SCRH105RY-561FIXED IND 560UH 570MA 1.43OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH105RY | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 570 mA | 540mA | - | Shielded | 1.43Ohm Max | 560 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
