固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-4020S-330M-TFIXED IND 33UH 490MA 550MOHM SMD Abracon LLC |
1,313 | - |
|
数据表 |
ASPI-4020S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 490 mA | 850mA | - | Shielded | 550mOhm | 33 µH | - | 11MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
ASPI-0628-330M-T1FIXED IND 33UH 1.1A 220 MOHM SMD Abracon LLC |
1,925 | - |
|
数据表 |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.1A | 0628 | Shielded | 220mOhm | 33 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.110" (2.80mm) |
|

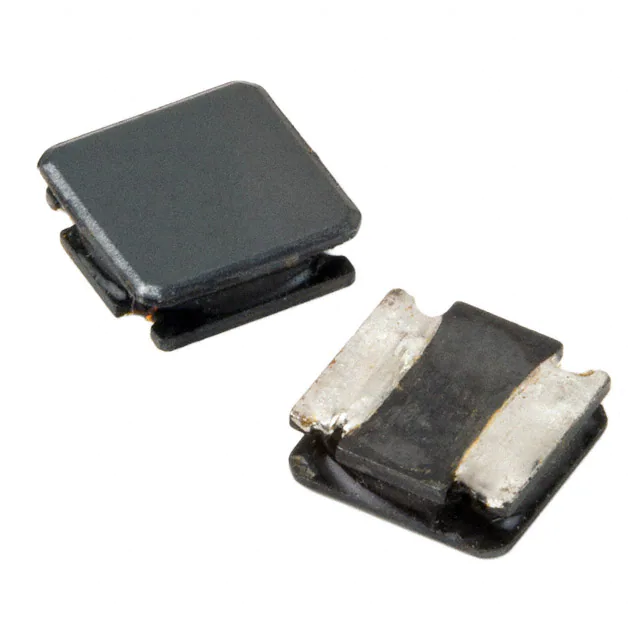

ASPI-0615FS-3R3N-T2FIXED IND 3.3UH 2.8A 30 MOHM SMD Abracon LLC |
1,371 | - |
|
数据表 |
ASPI-0615FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.8 A | 2.8A | - | Shielded | 30mOhm | 3.3 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.087" (2.20mm) |
|
ASPIAIG-F4020-2R2M-TFIXED IND 2.2UH 5.6A 38.7MOHM SM Abracon LLC |
11,645 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5.6 A | 6A | 4020 | Shielded | 38.7mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
ASPIAIG-S4035-6R8M-TFIXED IND 6.8UH 2.2A 101MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPIAIG-S4035 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.2 A | 2.8A | - | Shielded | 101mOhm Max | 6.8 µH | - | 24MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.146" (3.70mm) |
|
|
ASPIAIG-S4035-4R7M-TFIXED IND 4.7UH 2.45A 82MOHM SMD Abracon LLC |
0 | - |
|
数据表 |
ASPIAIG-S4035 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.45 A | 3.2A | - | Shielded | 82mOhm Max | 4.7 µH | - | 31MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.146" (3.70mm) |
|
ASPI-0503H-4R7M-TFIXED IND 4.7UH 2.5A 70 MOHM SMD Abracon LLC |
1,947 | - |
|
数据表 |
ASPI-0503H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 2.5 A | - | - | Unshielded | 70mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
AISC-0603F-R10K-TFIXED IND 100NH 850MA 110MOHM SM Abracon LLC |
5,476 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 850 mA | - | 0603 (1608 Metric) | Unshielded | 110mOhm Max | 100 nH | - | 1.37GHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
|
|
ASPI-0503H-100M-TFIXED IND 10UH 1.8A 120 MOHM SMD Abracon LLC |
1,291 | - |
|
数据表 |
ASPI-0503H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.8 A | - | - | Unshielded | 120mOhm Max | 10 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
ASPI-6045T-470M-TIND 47UH 1.2A 260M Abracon LLC |
2,357 | - |
|
数据表 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 1.2 A | 1.4A | - | Shielded | 260mOhm Max | 47 µH | - | 6.4MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
