固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASMPH-0806-1R0M-TFIXED IND 1UH 1.4A 90 MOHM SMD Abracon LLC |
2,895 | - |
|
数据表 |
ASMPH-0806 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 1.4 A | 1.2A | 0806 (2016 Metric) | Shielded | 90mOhm | 1 µH | - | 70MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 85°C | 1 MHz | 0.039" (1.00mm) |
|
ASPI-2010HC-1R0M-TFIXED IND 1UH 2.05A 90 MOHM SMD Abracon LLC |
3,412 | - |
|
数据表 |
ASPI-2010HC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 2.05 A | 3.35A | 0806 (2016 Metric) | Shielded | 90mOhm Max | 1 µH | - | 70MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
AISC-0805HQ-12NJ-TFIXED IND 12NH 1.6A 45 MOHM SMD Abracon LLC |
3,265 | - |
|
数据表 |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 1.6 A | - | 0805 | Unshielded | 45mOhm Max | 12 nH | 80 @ 1GHz | 3GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
|
|
ASPI-2010HC-2R2M-TFIXED IND 2.2UH 1.45A 170MOHM SM Abracon LLC |
2,902 | - |
|
数据表 |
ASPI-2010HC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 1.45 A | 1.9A | 0806 (2016 Metric) | Shielded | 170mOhm Max | 2.2 µH | - | 39MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
AISC-0805HQ-15NJ-TFIXED IND 15NH 1.2A 100 MOHM SMD Abracon LLC |
2,638 | - |
|
数据表 |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 1.2 A | - | 0805 | Unshielded | 100mOhm Max | 15 nH | 80 @ 1GHz | 2.8GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
|

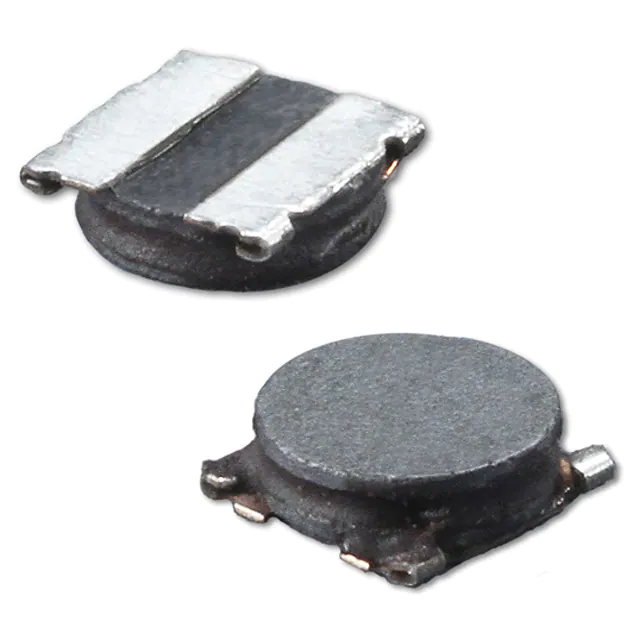

ASPI-0310FS-1R0N-T2FIXED IND 1UH 2.3A 50 MOHM SMD Abracon LLC |
1,960 | - |
|
数据表 |
ASPI-0310FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±30% | 2.3 A | 2.3A | - | Shielded | 50mOhm | 1 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.039" (1.00mm) |
|
|
AISC-0805HQ-5N6J-TFIXED IND 5.6NH 1.6A 35 MOHM SMD Abracon LLC |
1,543 | - |
|
数据表 |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 1.6 A | - | 0805 | Unshielded | 35mOhm Max | 5.6 nH | 98 @ 1.5GHz | 6GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
|
|
AISC-0805HQ-22NJ-TFIXED IND 22NH 1.2A 100 MOHM SMD Abracon LLC |
1,305 | - |
|
数据表 |
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 1.2 A | - | 0805 | Unshielded | 100mOhm Max | 22 nH | 80 @ 500MHz | 2GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
|
AISM-1812-102K-TFIXED IND 1MH 30MA 40 OHM SMD Abracon LLC |
0 | - |
|
数据表 |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 mA | - | 1812 | Unshielded | 40Ohm Max | 1 mH | 20 @ 252kHz | 2.5MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 85°C | 252 kHz | 0.110" (2.80mm) |
|
AISC-1008F-3R3K-T (2K/REEL)FIXED IND 3.3UH 450MA 1.7OHM SMD Abracon LLC |
1,830 | - |
|
数据表 |
AISC-1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 450 mA | - | 1008 (2520 Metric) | Unshielded | 1.7Ohm Max | 3.3 µH | 23 @ 50MHz | 100MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.090" (2.29mm) |
