固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-8040S-101M-TFIXED IND 100UH 1A 290 MOHM SMD Abracon LLC |
82,648 | - |
|
数据表 |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 1.15A | - | Shielded | 290mOhm | 100 µH | - | 4.2MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
ASPI-0630LR-220M-T15FIXED IND 22UH 2.5A 167 MOHM SMD Abracon LLC |
9,725 | - |
|
数据表 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 2.5 A | 2.5A | - | Shielded | 167mOhm Max | 22 µH | - | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
AIUR-08-121KFIXED IND 120UH 1.5A 200 MOHM TH Abracon LLC |
1,215 | - |
|
数据表 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.5 A | - | - | Unshielded | 200mOhm Max | 120 µH | - | - | Through Hole | - | 0.433" Dia (11.00mm) | - | -25°C ~ 85°C | 1 kHz | 0.433" (11.00mm) |
|
AIUR-08-470KFIXED IND 47UH 2.5A 83 MOHM TH Abracon LLC |
1,208 | - |
|
数据表 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.5 A | - | - | Unshielded | 83mOhm Max | 47 µH | - | - | Through Hole | - | 0.433" Dia (11.00mm) | - | -25°C ~ 85°C | 2.52 MHz | 0.433" (11.00mm) |
|
AIUR-09-181KFIXED IND 180UH 840MA 620MOHM TH Abracon LLC |
1,200 | - |
|
数据表 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 840 mA | - | - | Unshielded | 620mOhm Max | 180 µH | - | - | Through Hole | - | 0.394" Dia (10.00mm) | - | -55°C ~ 85°C | 1 kHz | 0.256" (6.50mm) |
|
ASPI-1040HI-100M-T05FIXED IND 10UH 7.5A 30 MOHM SMD Abracon LLC |
23,767 | - |
|
数据表 |
ASPI-1040HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 7.5 A | 8.5A | - | Unshielded | 30mOhm Max | 10 µH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
AIUR-09-101KFIXED IND 100UH 1.3A 360 MOHM TH Abracon LLC |
1,194 | - |
|
数据表 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | - | - | Unshielded | 360mOhm Max | 100 µH | - | - | Through Hole | - | 0.394" Dia (10.00mm) | - | -55°C ~ 85°C | 1 kHz | 0.256" (6.50mm) |
|
ASPI-U201610-R33M-TFIXED INDUCTOR 330NH 4.1A SMD Abracon LLC |
3,940 | - |
|
数据表 |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | - | - | - | Unshielded | - | 330 nH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | - | 100 kHz | 0.039" (1.00mm) |
|
ASPI-2515-6R8M-T2FIXED IND 6.8UH 900MA 295MOHM SM Abracon LLC |
13,211 | - |
|
数据表 |
ASPI-2515 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 950mA | - | Shielded | 295mOhm | 6.8 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.059" (1.50mm) |
|

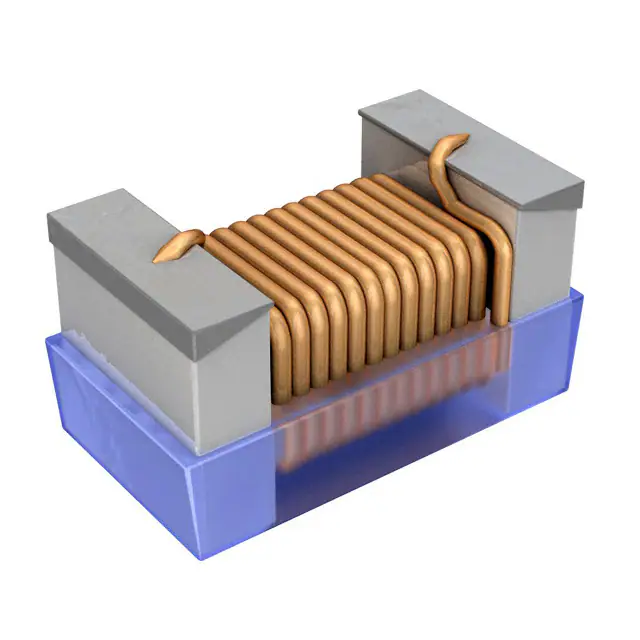

AISC-0603F-1R2J-TFIXED IND 1.2UH 260MA 1.1OHM SMD Abracon LLC |
7,959 | - |
|
数据表 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 260 mA | - | 0603 (1608 Metric) | Unshielded | 1.1Ohm Max | 1.2 µH | - | 370MHz | Surface Mount | - | 0.063" L x 0.039" W (1.60mm x 1.00mm) | - | -40°C ~ 85°C | 7.9 MHz | 0.047" (1.20mm) |
