固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPIAIG-QLR5050-100M-TFIXED IND 10UH 5A 43 MOHM SMD Abracon LLC |
853 | - |
|
数据表 |
ASPIAIG-QLR5050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 5 A | 5.4A | - | Shielded | 43mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
ASPIAIG-F1040-220M-TFIXED IND 22UH 5A 74 MOHM SMD Abracon LLC |
1,411 | - |
|
数据表 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5 A | 7A | 1040 | Shielded | 74mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
AIAP-03-220KFIXED IND 22UH 6.07A 26 MOHM TH Abracon LLC |
198 | - |
|
数据表 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | ±10% | 6.07 A | - | - | Unshielded | 26mOhm Max | 22 µH | - | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
AIAP-03-151KFIXED IND 150UH 2.22A 129MOHM TH Abracon LLC |
1,314 | - |
|
数据表 |
AIAP-03 | Axial | Tray | Active | Wirewound | - | ±10% | 2.22 A | - | - | Unshielded | 129mOhm Max | 150 µH | - | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
AIAP-03-182KFIXED IND 1.8MH 640MA 1.56OHM TH Abracon LLC |
952 | - |
|
数据表 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | ±10% | 640 mA | - | - | Unshielded | 1.56Ohm Max | 1.8 mH | - | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
ASPI-1040HI-R47M-T05FIXED IND 470NH 30A 1.7 MOHM SMD Abracon LLC |
869 | - |
|
数据表 |
ASPI-1040HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 30 A | 40A | - | Unshielded | 1.7mOhm Max | 470 nH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
ASPIAIG-F6050-3R3M-TFIXED IND 3.3UH 11A 12.5MOHM SMD Abracon LLC |
3,948 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 11 A | 10A | 6050 | Shielded | 12.5mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

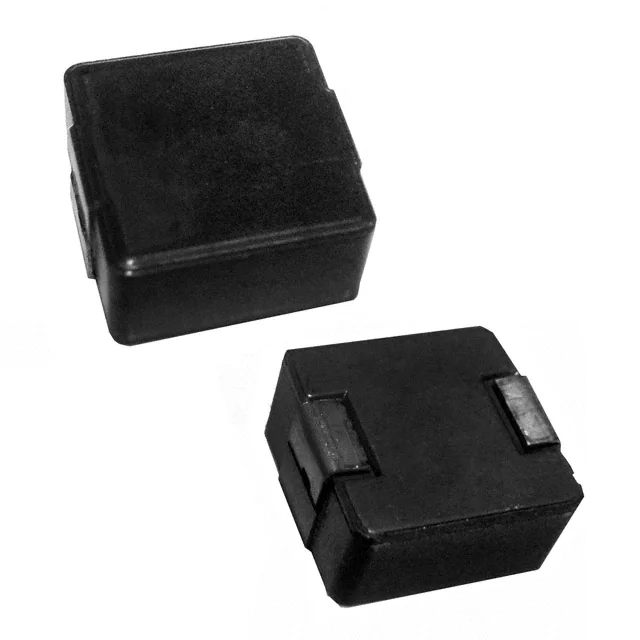

ASPI-1367-2R2M-TFIXED IND 2.2UH 20A 4.2 MOHM SMD Abracon LLC |
1,793 | - |
|
数据表 |
ASPI-1367 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 20 A | 33A | - | Shielded | 4.2mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.551" L x 0.508" W (14.00mm x 12.90mm) | - | -40°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
|
|
ASPIAIG-F4020-R10M-TFIXED IND 100NH 18A 2.42MOHM SMD Abracon LLC |
10,023 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 18 A | 33A | 4020 | Shielded | 2.42mOhm Max | 100 nH | - | - | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
|
|
ASPI-1367-100M-TFIXED IND 10UH 10A 18.5 MOHM SMD Abracon LLC |
310 | - |
|
数据表 |
ASPI-1367 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 15.5A | - | Shielded | 18.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.551" L x 0.508" W (14.00mm x 12.90mm) | - | -40°C ~ 125°C | 200 kHz | 0.264" (6.70mm) |
