固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPIAIG-S8050-471M-TFIXED IND 470UH 550MA 1.54OHM SM Abracon LLC |
6,845 | - |
|
数据表 |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 550 mA | 800mA | - | Shielded | 1.54Ohm | 470 µH | - | 1.9MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|

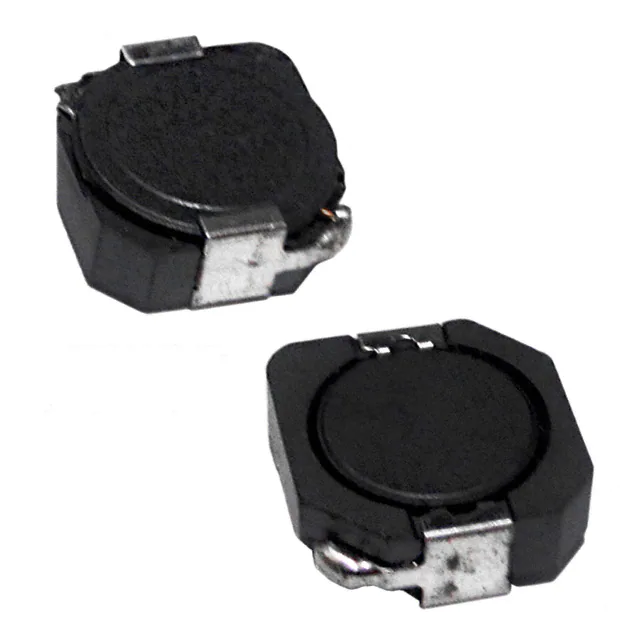

ASPI-0428S-3R9M-TFIXED IND 3.9UH 1.44A 64.8 MOHM Abracon LLC |
1,944 | - |
|
数据表 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.44 A | - | - | Shielded | 64.8mOhm Max | 3.9 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 85°C | 100 kHz | 0.118" (3.00mm) |
|
|
ASPI-0428S-2R2M-TFIXED IND 2.2UH 2.04A 31.3 MOHM Abracon LLC |
0 | - |
|
数据表 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.04 A | - | - | Shielded | 31.3mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 85°C | 100 kHz | 0.118" (3.00mm) |
|
AMDLA4010S-100MTFIXED IND 10UH 1.1A 312MOHM SMD Abracon LLC |
3,929 | - |
|
数据表 |
AMDLA4010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 1.1 A | 1.7A | - | Shielded | 312mOhm Max | 10 µH | - | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
AIAC-1008C-27NK-TFIXED IND 27NH 600MA 13.9MOHM SM Abracon LLC |
3,284 | - |
|
数据表 |
AIAC-1008C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±10% | 600 mA | - | - | Unshielded | 13.9mOhm Max | 27 nH | 70 @ 300MHz | 1.6GHz | Surface Mount | - | 0.126" L x 0.075" W (3.20mm x 1.90mm) | - | -40°C ~ 125°C | 300 MHz | 0.087" (2.20mm) |
|
|
AIAC-0805C-33NK-TFIXED IND 33NH 500MA 18.7MOHM SM Abracon LLC |
2,701 | - |
|
数据表 |
AIAC-0805C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±10% | 500 mA | - | - | Unshielded | 18.7mOhm Max | 33 nH | 70 @ 300MHz | 1.6GHz | Surface Mount | - | 0.112" L x 0.071" W (2.85mm x 1.80mm) | - | -40°C ~ 125°C | 300 MHz | 0.083" (2.10mm) |
|
|
AIAC-1008C-6N8K-TFIXED IND 6.8NH 1.2A 4 MOHM SMD Abracon LLC |
2,170 | - |
|
数据表 |
AIAC-1008C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±10% | 1.2 A | - | - | Unshielded | 4mOhm Max | 6.8 nH | 80 @ 300MHz | 3GHz | Surface Mount | - | 0.126" L x 0.075" W (3.20mm x 1.90mm) | - | -40°C ~ 125°C | 300 MHz | 0.087" (2.20mm) |
|
|
ASPI-0428S-330M-TFIXED IND 33UH 560MA 378MOHM SMD Abracon LLC |
5,306 | - |
|
数据表 |
ASPI-0428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 560 mA | - | - | Shielded | 378mOhm Max | 33 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 85°C | 100 kHz | 0.118" (3.00mm) |
|
AMDLA4012S-2R2MTFIXED IND 2.2UH 3.5A 80MOHM SMD Abracon LLC |
3,709 | - |
|
数据表 |
AMDLA4012S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.5 A | 5.5A | - | Shielded | 80mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
AMDLA4020Q-1R5MTFIXED IND 1.5UH 4A 26 MOHM SMD Abracon LLC |
4,348 | - |
|
数据表 |
AMDLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 4 A | 5.4A | - | Shielded | 26mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.173" L x 0.157" W (4.40mm x 4.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
