固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-1008-R75J-TFIXED IND 750NH 360MA 1.54OHM SM Abracon LLC |
3,260 | - |
|
数据表 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 360 mA | - | 1008 (2520 Metric) | Unshielded | 1.54Ohm Max | 750 nH | 45 @ 100MHz | 360MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.090" (2.29mm) |
|
|
AISC-1008-R91J-TFIXED IND 910NH 380MA 1.68OHM SM Abracon LLC |
3,180 | - |
|
数据表 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 380 mA | - | 1008 (2520 Metric) | Unshielded | 1.68Ohm Max | 910 nH | 35 @ 50MHz | 295MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.090" (2.29mm) |
|
|
AISC-1008-2R7J-TFIXED IND 2.7UH 290MA 3.2OHM SMD Abracon LLC |
2,777 | - |
|
数据表 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 290 mA | - | 1008 (2520 Metric) | Unshielded | 3.2Ohm Max | 2.7 µH | 22 @ 25MHz | 90MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.090" (2.29mm) |
|
|
AISC-1008-6R8J-TFIXED IND 6.8UH 200MA 7.7OHM SMD Abracon LLC |
2,422 | - |
|
数据表 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 200 mA | - | 1008 (2520 Metric) | Unshielded | 7.7Ohm Max | 6.8 µH | 20 @ 25MHz | 40MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.090" (2.29mm) |
|
|
AISC-1008-5R6J-TFIXED IND 5.6UH 240MA 5.7OHM SMD Abracon LLC |
2,174 | - |
|
数据表 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 240 mA | - | 1008 (2520 Metric) | Unshielded | 5.7Ohm Max | 5.6 µH | 20 @ 25MHz | 40MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.090" (2.29mm) |
|
AISC-0805-R12G-TFIXED IND 120NH 400MA 510MOHM SM Abracon LLC |
2,000 | - |
|
数据表 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 400 mA | - | 0805 | Unshielded | 510mOhm Max | 120 nH | 50 @ 250MHz | 1.1GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 150 MHz | 0.061" (1.55mm) |
|
|
AISC-0805-R18G-TFIXED IND 180NH 400MA 640MOHM SM Abracon LLC |
2,000 | - |
|
数据表 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 400 mA | - | 0805 | Unshielded | 640mOhm Max | 180 nH | 50 @ 250MHz | 870MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.061" (1.55mm) |
|
ASPI-4030S-150M-TFIXED IND 15UH 1.11A 190MOHM SMD Abracon LLC |
9,893 | - |
|
数据表 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 1.11 A | 1.65A | - | Shielded | 190mOhm | 15 µH | - | 16MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
AISC-0805-R012G-TFIXED IND 12NH 600MA 150MOHM SMD Abracon LLC |
1,985 | - |
|
数据表 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 600 mA | - | 0805 | Unshielded | 150mOhm Max | 12 nH | 50 @ 500MHz | 4GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 250 MHz | 0.061" (1.55mm) |
|

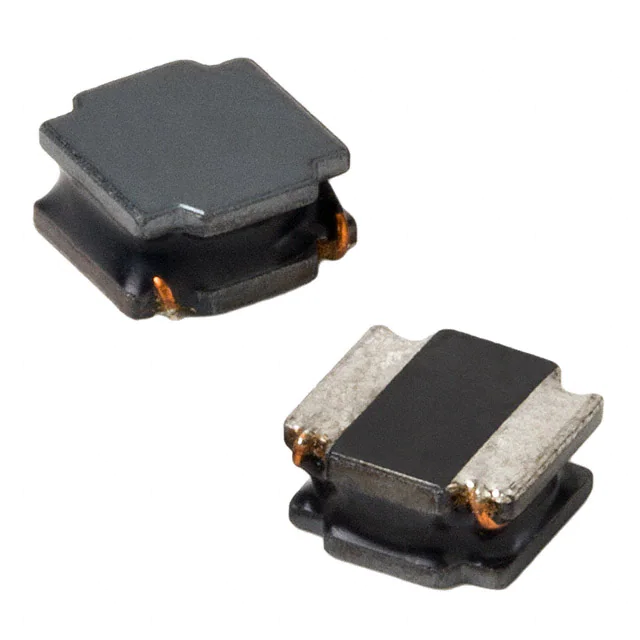

ASPI-6045S-220M-TFIXED IND 22UH 1.8A 89 MOHM SMD Abracon LLC |
6,667 | - |
|
数据表 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 2.05A | - | Shielded | 89mOhm | 22 µH | - | 10MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
