场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STWA70N65DM6MOSFET N-CH 650V 68A TO247 STMicroelectronics |
15 | - |
|
数据表 |
MDmesh™ DM6 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 68A (Tc) | 10V | 40mOhm @ 34A, 10V | Through Hole | 4.75V @ 250µA | 125 nC @ 10 V | 650 V | ±25V | 4900 pF @ 100 V | - | - | TO-247 Long Leads | - | 450W (Tc) | -55°C ~ 150°C (TJ) |
|
STB20NM60DMOSFET N-CH 600V 20A D2PAK STMicroelectronics |
4,647 | - |
|
数据表 |
FDmesh™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20A (Tc) | 10V | 290mOhm @ 10A, 10V | Surface Mount | 5V @ 250µA | 52 nC @ 10 V | 600 V | ±30V | 1300 pF @ 25 V | - | - | D2PAK | - | 192W (Tc) | -65°C ~ 150°C (TJ) |
|

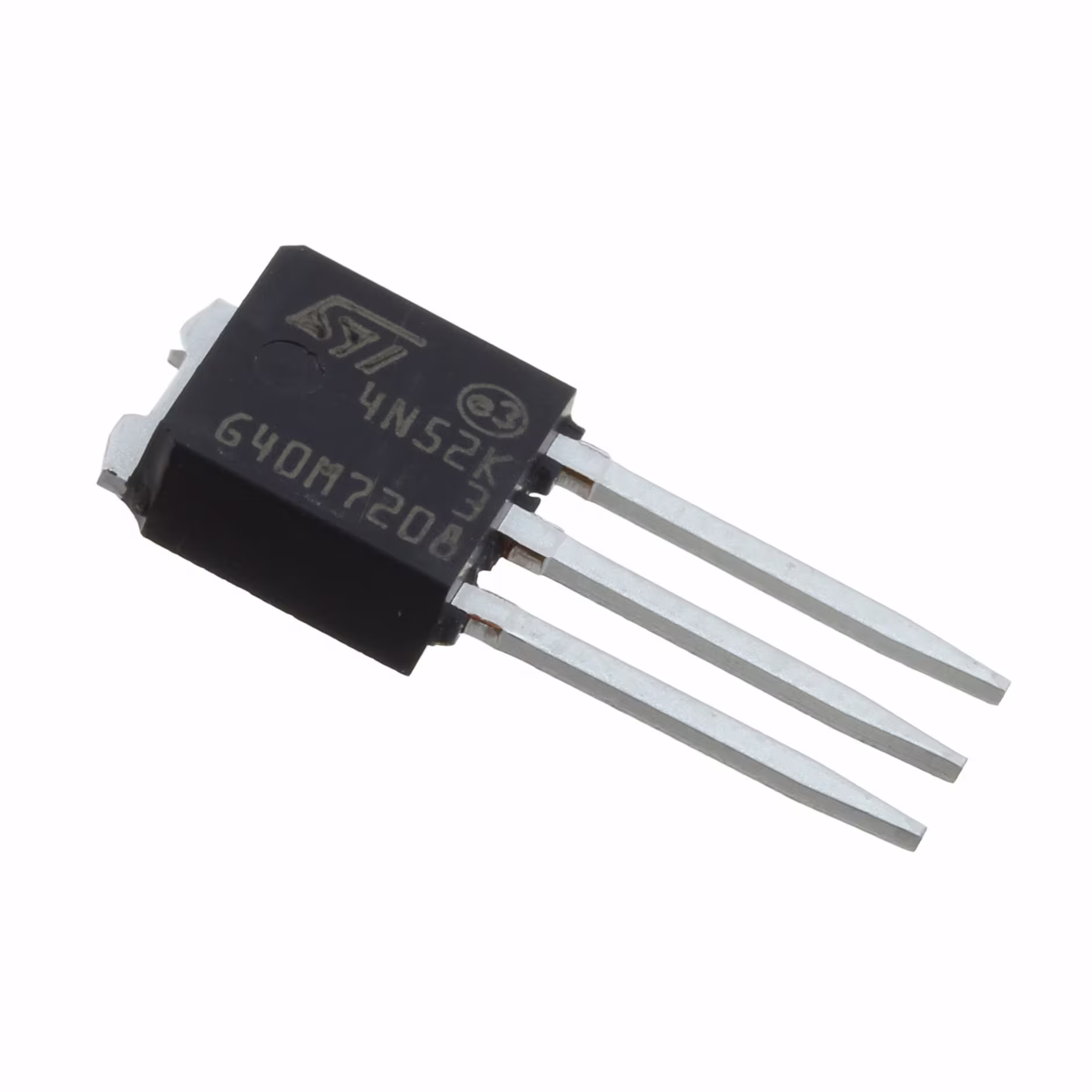

STU4N52K3MOSFET N-CH 525V 2.5A IPAK STMicroelectronics |
2,513 | - |
|
数据表 |
SuperMESH3™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 2.5A (Tc) | 10V | 2.6Ohm @ 1.25A, 10V | Through Hole | 4.5V @ 50µA | 11 nC @ 10 V | 525 V | ±30V | 334 pF @ 100 V | - | - | IPAK | - | 45W (Tc) | 150°C (TJ) |
|
|
STB23NM60NMOSFET N-CH 600V 19A D2PAK STMicroelectronics |
2,445 | - |
|
数据表 |
MDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 19A (Tc) | 10V | 180mOhm @ 9.5A, 10V | Surface Mount | 4V @ 250µA | 60 nC @ 10 V | 600 V | ±25V | 2050 pF @ 50 V | - | - | D2PAK | - | 150W (Tc) | 150°C (TJ) |
|

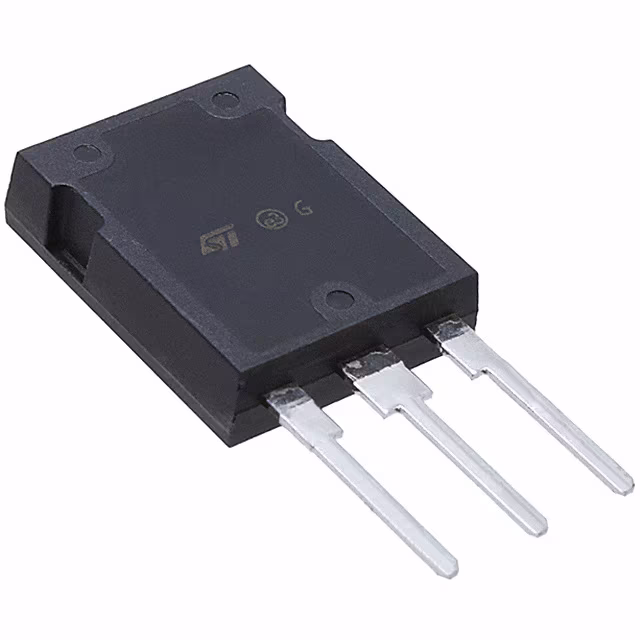

STY130NF20DMOSFET N-CH 200V 130A MAX247 STMicroelectronics |
7,104 | - |
|
数据表 |
STripFET™ II | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 130A (Tc) | 10V | 12mOhm @ 65A, 10V | Through Hole | 4V @ 250µA | 338 nC @ 10 V | 200 V | ±20V | 11100 pF @ 25 V | - | - | MAX247™ | - | 450W (Tc) | -55°C ~ 150°C (TJ) |
|
|
STB23NM60NDMOSFET N-CH 600V 19.5A D2PAK STMicroelectronics |
9,156 | - |
|
数据表 |
FDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 19.5A (Tc) | 10V | 180mOhm @ 10A, 10V | Surface Mount | 5V @ 250µA | 70 nC @ 10 V | 600 V | ±25V | 2050 pF @ 50 V | - | - | D2PAK | - | 150W (Tc) | 150°C (TJ) |
|
STW56NM60NMOSFET N-CH 600V 45A TO247 STMicroelectronics |
4,949 | - |
|
数据表 |
MDmesh™ II | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 45A (Tc) | 10V | 60mOhm @ 22.5A, 10V | Through Hole | 4V @ 250µA | 150 nC @ 10 V | 600 V | ±25V | 4800 pF @ 50 V | - | - | TO-247-3 | - | 300W (Tc) | 150°C (TJ) |
|
STY100NS20FDMOSFET N-CH 200V 100A MAX247 STMicroelectronics |
4,699 | - |
|
数据表 |
MESH OVERLAY™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100A (Tc) | 10V | 24mOhm @ 50A, 10V | Through Hole | 4V @ 250µA | 360 nC @ 10 V | 200 V | ±20V | 7900 pF @ 25 V | - | - | MAX247™ | - | 450W (Tc) | 150°C (TJ) |
|
|
STB25NM60NMOSFET N-CH 600V 21A D2PAK STMicroelectronics |
3,125 | - |
|
数据表 |
MDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | Surface Mount | 4V @ 250µA | 84 nC @ 10 V | 600 V | ±25V | 2400 pF @ 50 V | - | - | D2PAK | - | 160W (Tc) | 150°C (TJ) |
|
|
STB25NM50NMOSFET N-CH 500V 22A D2PAK STMicroelectronics |
4,821 | - |
|
数据表 |
MDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 22A (Tc) | 10V | 140mOhm @ 11A, 10V | Surface Mount | 4V @ 250µA | 84 nC @ 10 V | 500 V | ±25V | 2565 pF @ 25 V | - | - | D2PAK | - | 160W (Tc) | 150°C (TJ) |
