直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1203848H2B-3T3FAN 120X38MM 48VDC TACH MOLEX 22 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 41.0dB(A) | 19.2 W | CE, cURus | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
CFM-9225BG68-240-438-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-92BG68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 70.2 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 43.8dB(A) | 4.8 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
CFM-9225BG68-140-438-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-92BG68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.2 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 43.8dB(A) | 4.32 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
DC0923812H2B-3T0FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 14.4 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0923812U2B-3T0FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 30 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0923824U2B-2T0FAN 92X38MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 67.0dB(A) | 60 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0923824H2B-2T0FAN 92X38MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 28.8 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9G0948H201FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 56.1 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 32.0dB(A) | 3.84 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948M201FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 25.0dB(A) | 2.4 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948A2D01FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 44.0dB(A) | 7.68 W | CSA, TUV, UL | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948A2D011FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 44.0dB(A) | 7.68 W | CSA, TUV, UL | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948H2D01FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 32.0dB(A) | 3.84 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948H2D011FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 32.0dB(A) | 3.84 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9S0912L401FAN AXIAL 92X25MM 12VDC WIRE |
41 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 17.0dB(A) | 840 mW | CSA, TUV, UL | 1750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD5015-12HB02AFAN AXIAL 50X15MM 12VDC WIRE |
21 | - |
|
数据表 |
OD5015 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 15.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
9G0812G1D01FAN AXIAL 80X38MM 12VDC WIRE |
25 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 51.0dB(A) | 13.2 W | CSA, TUV, UL | 6300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

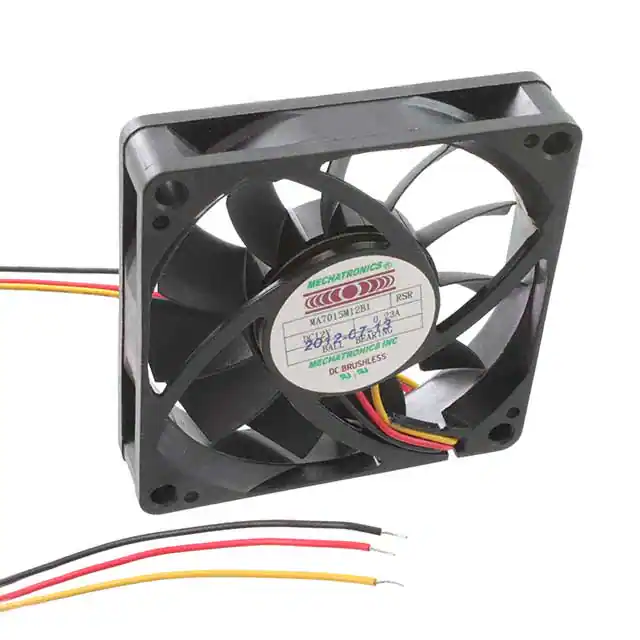

MA7015M12B1-RSRFAN 70X15MM BALL 12VDC WIRE |
7 | - |
|
数据表 |
MA7015 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Ball | - | - | Speed Sensor (Tach) | 15.00mm | - | - | cUL, UL | - | - | 3 Wire Leads | - |
|
|
9A0812S4021FAN AXIAL 80X25MM 12VDC WIRE |
89 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 2.16 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9G0948M2D01FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 25.0dB(A) | 2.4 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948M2D011FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 25.0dB(A) | 2.4 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
