直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0948S2D01FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 38.0dB(A) | 5.28 W | CSA, TUV, UL | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948S2D011FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 38.0dB(A) | 5.28 W | CSA, TUV, UL | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9A0824H4011FAN AXIAL 80X25MM 24VDC WIRE |
76 | - |
|
数据表 |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 1.68 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948A201FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 44.0dB(A) | 7.68 W | CSA, TUV, UL | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0812C6D01FAN AXIAL 80X20MM 12VDC WIRE |
59 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.8 CFM (1.06m³/min) | 0.185 in H2O (46.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 39.0dB(A) | 3.48 W | CSA, TUV, UL | 3700 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
9G0948A2011FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 44.0dB(A) | 7.68 W | CSA, TUV, UL | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109P0812H601FAN AXIAL 80X20MM 12VDC WIRE |
32 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 31.0dB(A) | 2.52 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948H2011FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 32.0dB(A) | 3.84 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

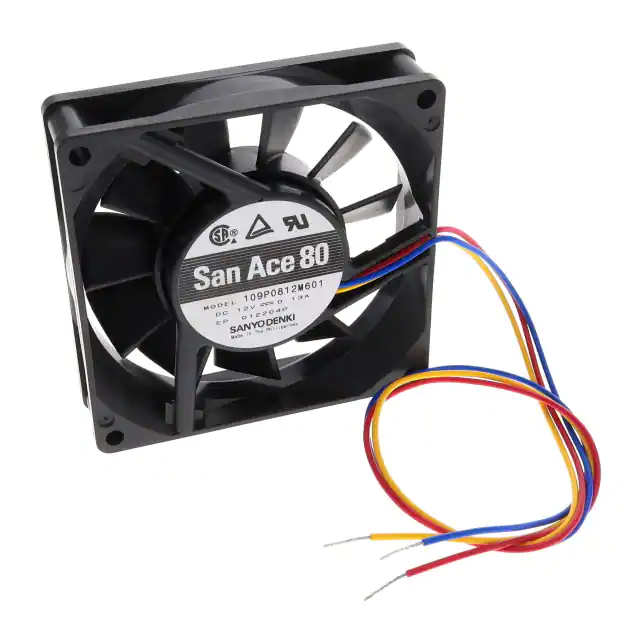

109P0812M601FAN AXIAL 80X20MM 12VDC WIRE |
27 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.7 CFM (0.664m³/min) | 0.075 in H2O (18.6 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 25.0dB(A) | 1.56 W | CSA, TUV, UL | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948M2011FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 25.0dB(A) | 2.4 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

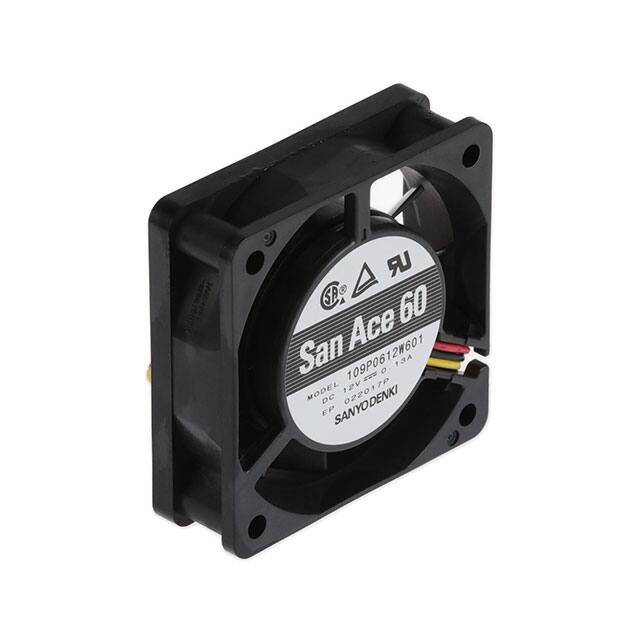

109P0612W601FAN AXIAL 60X20MM 12VDC WIRE |
44 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 31.0dB(A) | 1.56 W | CSA, TUV, UL | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0948S201FAN AXIAL 92X32MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 70.6 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 38.0dB(A) | 5.28 W | CSA, TUV, UL | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
OD3510-05MB01AFAN AXIAL 35X10MM BALL 5VDC WIRE |
21 | - |
|
数据表 |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
PMB2497PYB3-AY.(2).GNFAN BLOWER 97X33MM 24VDC WIRE |
0 | - |
|
数据表 |
PMB | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 94mm H | 22.4 CFM (0.627m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Blower | Auto Restart | 33.00mm | 50.0dB(A) | 3.8 W | - | 2700 RPM | - | 2 Wire Leads | - |
|
9S0812P4F01FAN AXIAL 80X25MM 12VDC WIRE |
75 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.8 CFM (0.918m³/min) | 0.143 in H2O (35.6 Pa) | Ball | 0.167 lb (75.75 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.32 W | cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
109P0405H601FAN AXIAL 40X20MM BALL 5VDC WIRE |
77 | - |
|
数据表 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 33.0dB(A) | 1.6 W | CSA, TUV, UL | 8000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109R0812H402FAN AXIAL 80X25MM 12VDC WIRE |
73 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 29.0dB(A) | 1.56 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109R0812H4021FAN AXIAL 80X25MM 12VDC WIRE |
37 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 29.0dB(A) | 1.56 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109R0805F4021FAN AXIAL 80X25MM BALL 5VDC WIRE |
54 | - |
|
数据表 |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 26.0dB(A) | 1.25 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
OD5010-12MB02AFAN AXIAL 50X10.5MM 12VDC WIRE |
30 | - |
|
数据表 |
OD5010 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 10.50mm | - | - | CE, cURus | - | - | 3 Wire Leads | - |
