直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0612M402FAN AXIAL 60X25MM 12VDC WIRE |
24 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | - | 25.00mm | 16.0dB(A) | 840 mW | CSA, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9S0912L402FAN AXIAL 92X25MM 12VDC WIRE |
41 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 17.0dB(A) | 840 mW | CSA, TUV, UL | 1750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-9232B-150-509FAN AXIAL 92.2X32MM 12VDC WIRE |
19 | - |
|
数据表 |
CFM-92B | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 102.8 CFM (2.88m³/min) | 0.620 in H2O (154.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 32.00mm | 51.0dB(A) | 10.68 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
F8025X24B3-FHRFAN AXIAL 80X25MM 24VDC WIRE |
75 | - |
|
数据表 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 4200 RPM | - | 2 Wire Leads | - |
|
|
F8025E24B3-FSRFAN AXIAL 80X25MM 24VDC WIRE |
66 | - |
|
数据表 |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
9A0824L402FAN AXIAL 80X25MM 24VDC WIRE |
88 | - |
|
数据表 |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 20.0dB(A) | 960 mW | CSA, TUV, UL | 1850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

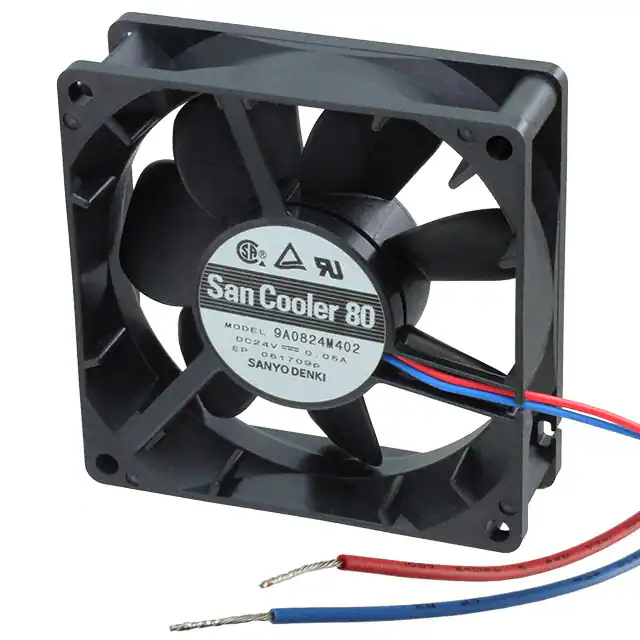

9A0824M402FAN AXIAL 80X25MM 24VDC WIRE |
63 | - |
|
数据表 |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 23.0dB(A) | 1.2 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109P0412M3013FAN AXIAL 40X28MM 12VDC WIRE |
72 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 20.0dB(A) | 540 mW | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109P0624J701FAN AXIAL 60X15MM 24VDC WIRE |
66 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.347 in H2O (86.4 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 44.0dB(A) | 3.36 W | CSA, TUV, UL | 6200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
109P0412G3023FAN AXIAL 40X28MM 12VDC WIRE |
44 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 14.8 CFM (0.414m³/min) | 0.719 in H2O (179.0 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 42.0dB(A) | 3.72 W | CSA, TUV, UL | 11500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
109P0412H301FAN AXIAL 40X28MM 12VDC WIRE |
33 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.115 lb (52.16 g) | Tubeaxial | Speed Sensor (Tach) | 28.00mm | 37.0dB(A) | 2.34 W | CSA, TUV, UL | 8700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
DC0602548U2B-3T3FAN 60X25MM 48VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 56.0dB(A) | 21.6 W | CE, cURus | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
FAD1-08032CBHW12FAN AXIAL 80.5X32MM 12VDC WIRE |
52 | - |
|
数据表 |
FAD1-08032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 50.0 CFM (1.40m³/min) | 0.292 in H2O (72.7 Pa) | Ball | 0.238 lb (107.95 g) | Tubeaxial | - | 32.00mm | 42.4dB(A) | 2.28 W | CE, cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9A0924G401FAN AXIAL 92X25MM 24VDC WIRE |
41 | - |
|
数据表 |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 43.0dB(A) | 4.56 W | CSA, TUV, UL | 3900 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|

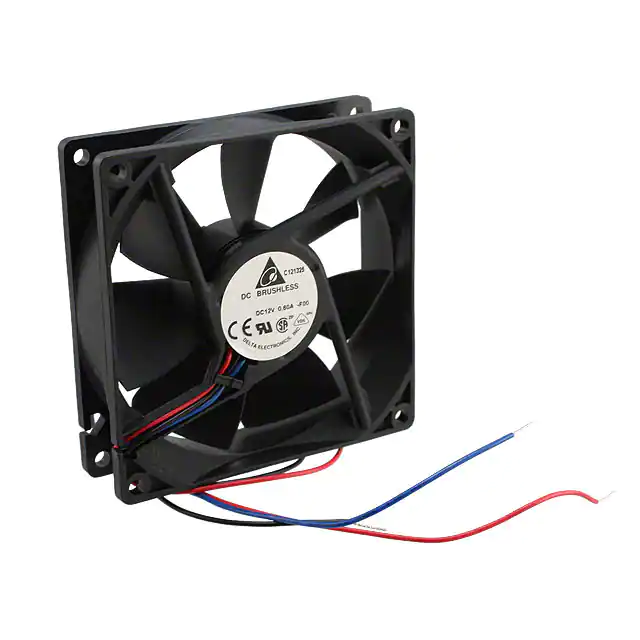

AFB0912VH-F00FAN AXIAL 92X25.4MM 12VDC WIRE |
31 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 67.8 CFM (1.90m³/min) | 0.302 in H2O (75.2 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 45.0dB(A) | 4.8 W | CE, CSA, UL, VDE | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

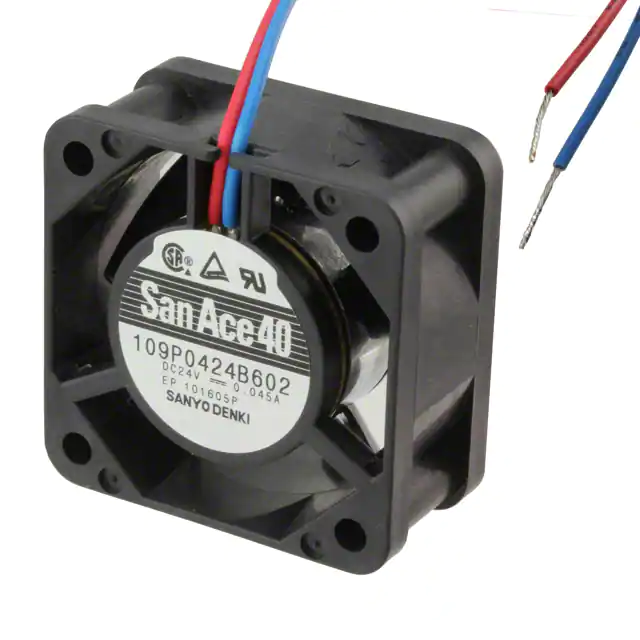

109P0424B602FAN AXIAL 40X20MM 24VDC WIRE |
83 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 4.9 CFM (0.137m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | - | 20.00mm | 25.0dB(A) | 1.44 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
F8025E24B3-FHRFAN AXIAL 80X25MM 24VDC WIRE |
75 | - |
|
数据表 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 25.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
9S0924L4011FAN AXIAL 92X25MM 24VDC WIRE |
54 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 17.0dB(A) | 960 mW | CSA, TUV, UL | 1750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9S0912M4011FAN AXIAL 92X25MM 12VDC WIRE |
52 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 22.0dB(A) | 1.32 W | CSA, TUV, UL | 2250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC1203848M2B-3T3FAN 120X38MM 48VDC TACH MOLEX 22 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 38.0dB(A) | 13.44 W | CE, cURus | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
