直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6015E24B-RHR-EMFAN AXIAL 60X15MM 24VDC WIRE |
80 | - |
|
数据表 |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | - | 15.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 5200 RPM | - | 2 Wire Leads | IP57 - Dust Protected, Waterproof |
|

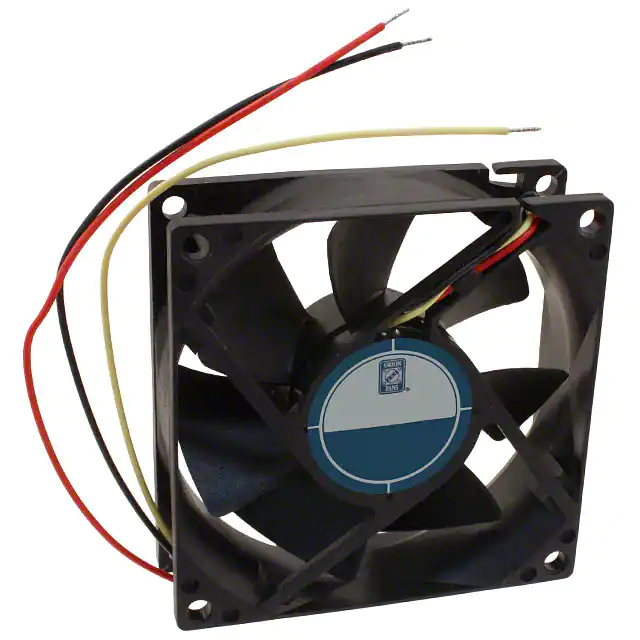

OD8025-12HB02AFAN AXIAL 80X25MM 12VDC WIRE |
29 | - |
|
数据表 |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 35.0dB | 1.8 W | cURus, TUV | 3100 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|

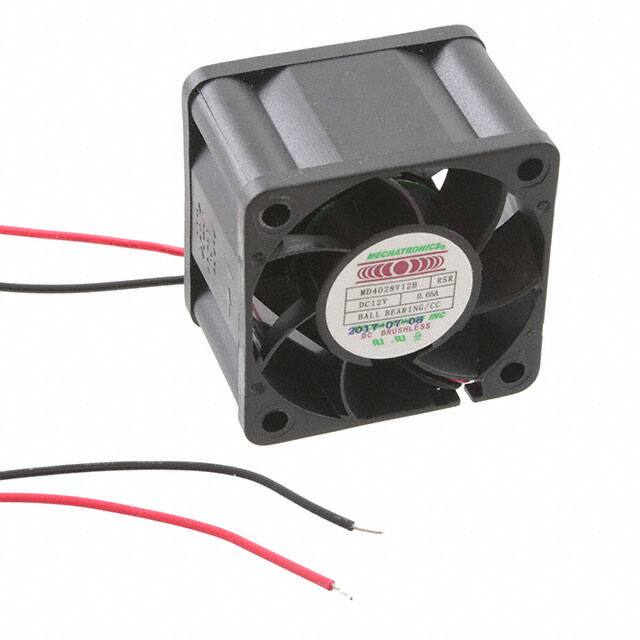

MD4028V12B-RSR-CCFAN AXIAL 40X28MM 12VDC WIRE |
23 | - |
|
数据表 |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 28.00mm | 53.1dB(A) | - | cUL, TUV, UL | 15000 RPM | - | 2 Wire Leads | - |
|
AFB02505HHA-CF00FAN AXIAL 25X10MM BALL 5VDC WIRE |
18 | - |
|
数据表 |
AFB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 800 mW | cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

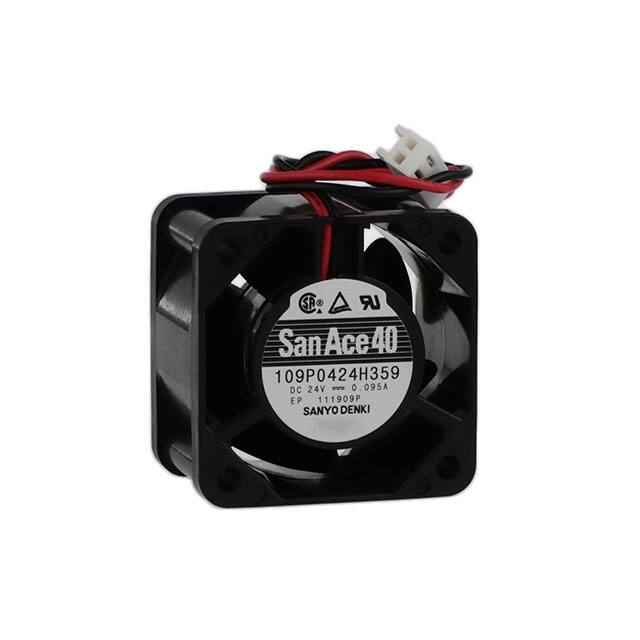

109P0424H359FAN AXIAL 40X28MM 24VDC |
94 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 37.0dB(A) | - | CSA, TUV, UL | 8700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Position Rectangular Connector | - |
|
G9232M24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
42 | - |
|
数据表 |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 48.0 CFM (1.34m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.335 lb (151.95 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
CFM-8038B-250-498FAN AXIAL 80X37.6MM 24VDC WIRE |
92 | - |
|
数据表 |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 61.8 CFM (1.73m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 37.60mm | 49.8dB(A) | 10.8 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
109P0412E601FAN AXIAL 40X20MM 12VDC WIRE |
92 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 37.0dB(A) | 1.8 W | CSA, TUV, UL | 9200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0803812H2B-3T3FAN 80X38MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 84.8 CFM (2.37m³/min) | 0.890 in H2O (221.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | 12 W | CE, cURus, TUV | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0803812U2B-3T3FAN 80X38MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 105.5 CFM (2.95m³/min) | 1.360 in H2O (338.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 18 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0803812M2B-3T3FAN 80X38MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 71.8 CFM (2.01m³/min) | 0.760 in H2O (189.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 9.12 W | CE, cURus, TUV | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
GF60151B9-1E00U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.00mm | 17.1dB(A) | 540 mW | CE, CUR, TUV, UL | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF60151B8-1E00U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 14.5 CFM (0.406m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.00mm | 24.9dB(A) | 1.08 W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF60151B7-1E00U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.2 CFM (0.510m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.00mm | 29.4dB(A) | 1.26 W | CE, CUR, TUV, UL | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9GA0612P1H031FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 40.6 CFM (1.14m³/min) | 1.504 in H2O (374.6 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 52.0dB(A) | 6.6 W | CSA, TUV, UL | 11500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0603848L2B-3T0FAN 60X38MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 57.0dB(A) | 48 W | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0603848I2B-3T0FAN 60X38MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 24.96 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD1238-12HBXC01AFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 200.0 CFM (5.60m³/min) | 0.640 in H2O (159.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.50mm | 61.0dB | 23 W | cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1238-12HBXC10AFAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 200.0 CFM (5.60m³/min) | 0.640 in H2O (159.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.50mm | 61.0dB | 23 W | cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
OD1238-12HBXC5FAN AXIAL 120X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1238 XC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 200.0 CFM (5.60m³/min) | 0.640 in H2O (159.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 38.50mm | 61.0dB | 23 W | cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
