直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9A0612S402FAN AXIAL 60X25MM 12VDC WIRE |
77 | - |
|
数据表 |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 33.0dB(A) | 2.04 W | CSA, TUV, UL | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9A0624G4021FAN AXIAL 60X25MM 24VDC WIRE |
72 | - |
|
数据表 |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 39.0dB(A) | 3.12 W | CSA, TUV, UL | 5600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
FAD1-12025CBHW12FAN AXIAL 120X25.5MM 12VDC WIRE |
79 | - |
|
数据表 |
FAD1-12025 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 87.9 CFM (2.46m³/min) | 0.134 in H2O (33.5 Pa) | Ball | 0.344 lb (156.04 g) | Tubeaxial | - | 25.50mm | 39.1dB(A) | 3.48 W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
06025SA-12T-ET-D0FAN AXIAL 60X25MM 12VDC WIRE |
52 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 37.8 CFM (1.06m³/min) | 0.630 in H2O (156.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 47.0dB | 5.2 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC1203812U2B-BT0FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | 0.508 lb (230.42 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 18.6 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC1203848V2B-2T0FAN 120X38MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 48.0dB(A) | 38.4 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC1203824U2B-3T0FAN 120X38MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 44.0dB(A) | 18 W | CE, cURus | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC1203824V2B-3T0FAN 120X38MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 19.2 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC1203848U2B-2T0FAN 120X38MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 44.0dB(A) | 36 W | CE, cURus | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
PFM0612XHEB7TFAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFM - Three-Phase | Box | Active | 12VDC | Square - 60mm L x 60mm H | 64.4 CFM (1.80m³/min) | 2.343 in H2O (583.6 Pa) | Ball | 0.219 lb (99.34 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.1dB(A) | 13.8 W | cURus, TUV | 18500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
.GN.JPG)
|
PMD1206PMB1-A.(2).GNFAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 56.5 CFM (1.58m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | - | 38.00mm | 56.0dB(A) | 10.6 W | CE, CUR, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
GB1206AHV1-A.V1.B2170.GNFAN BLOWER 60X15MM VAPO 12VDC |
0 | - |
|
数据表 |
GB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | - | - | Vapo-Bearing™ | - | Blower | - | 15.00mm | - | - | - | - | - | - | - |
|
CFM-9232B-130-398FAN AXIAL 92.2X32MM 12VDC WIRE |
30 | - |
|
数据表 |
CFM-92B | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 32.00mm | 39.9dB(A) | 3.84 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225SE-12Q-FT-DWFAN AXIAL 92X25MM 12VDC WIRE |
89 | - |
|
数据表 |
09225SE | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.293 in H2O (73.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 3 W | CE, cULus, VDE | 3900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
9A0612G401FAN AXIAL 60X25MM 12VDC WIRE |
77 | - |
|
数据表 |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 39.0dB(A) | 2.88 W | CSA, TUV, UL | 5600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
(4028BG).jpg)
|
CFM-4020BG-1100-389-22FAN AXIAL 40X20MM 12VDC WIRE |
75 | - |
|
数据表 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.8 CFM (0.330m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 38.9dB(A) | 2.4 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
9A0912G402FAN AXIAL 92X25MM 12VDC WIRE |
72 | - |
|
数据表 |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 43.0dB(A) | 4.68 W | CSA, TUV, UL | 3900 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
9A0812F401FAN AXIAL 80X25MM 12VDC WIRE |
80 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 1.32 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812H401FAN AXIAL 80X25MM 12VDC WIRE |
56 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 1.56 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

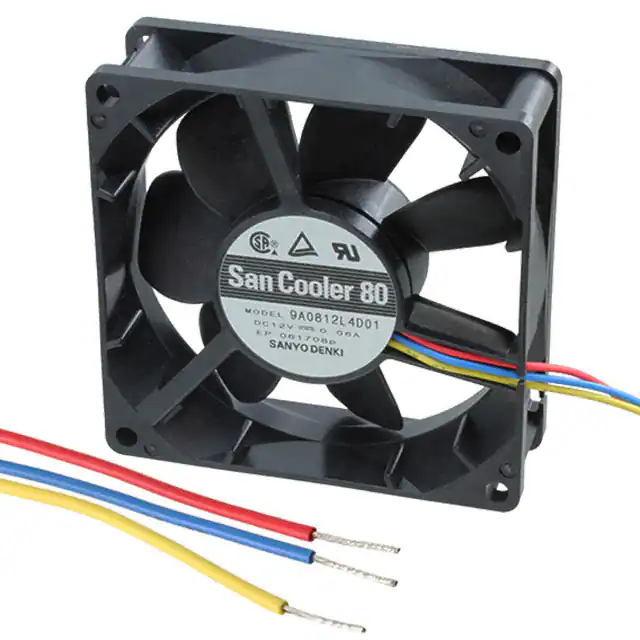

9A0812L4D01FAN AXIAL 80X25MM 12VDC WIRE |
38 | - |
|
数据表 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 20.0dB(A) | 720 mW | CSA, TUV, UL | 1850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
