直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9TN24P1H01FAN AXIAL 150X35MM 24VDC WIRE |
402 | - |
|
数据表 |
San Ace C150 | Box | Active | 24VDC | Square - 150mm L x 150mm H | 135.0 CFM (3.78m³/min) | 1.650 in H2O (411.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.00mm | 59.0dB(A) | 14.9 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
4112NH4FAN AXIAL 119X38MM 12VDC WIRE |
74 | - |
|
数据表 |
4100N | Box | Active | 12VDC | Square - 119mm L x 119mm H | 208.9 CFM (5.85m³/min) | - | Ball | 0.86 lb (390.09 g) | Tubeaxial | - | 38.00mm | 67.0dB(A) | 32 W | - | 6800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
9LG0424P3G00140X28MM 24VDC TACH PWM |
91 | - |
|
数据表 |
San Ace 40L | Box | Active | 24VDC | Square - 40mm L x 40mm H | 32.9 CFM (0.921m³/min) | 7.150 in H2O (1780.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 28.00mm | 68.0dB(A) | 22.8 W | cURus, TUV | 33500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
19031843AFAN AXIAL 171.5X55MM 24V MT24B3 |
357 | - |
|
数据表 |
Maltese | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 300.0 CFM (8.40m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 55.00mm | 57.1dB(A) | 41 W | CE, cURus, UL | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
8315100142FAN AXIAL 120X38.15MM 24VDC WIRE |
43 | - |
|
数据表 |
AxiForce | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 203.0 CFM (5.68m³/min) | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.15mm | 59.0dB(A) | 30 W | - | 6500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
19041196AFAN AXIAL 171.5X55MM MT24R0X-E2 |
483 | - |
|
数据表 |
Maltese | Box | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 345.0 CFM (9.66m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.00mm | 60.6dB(A) | 41 W | CE, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
THB1248CEFAN AXIAL 120X38MM 48VDC WIRE |
4,121 | - |
|
数据表 |
THB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 262.0 CFM (7.34m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 0.915 lb (415.04 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 70.0dB(A) | 45.6 W | CE, cURus, TUV | 7800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

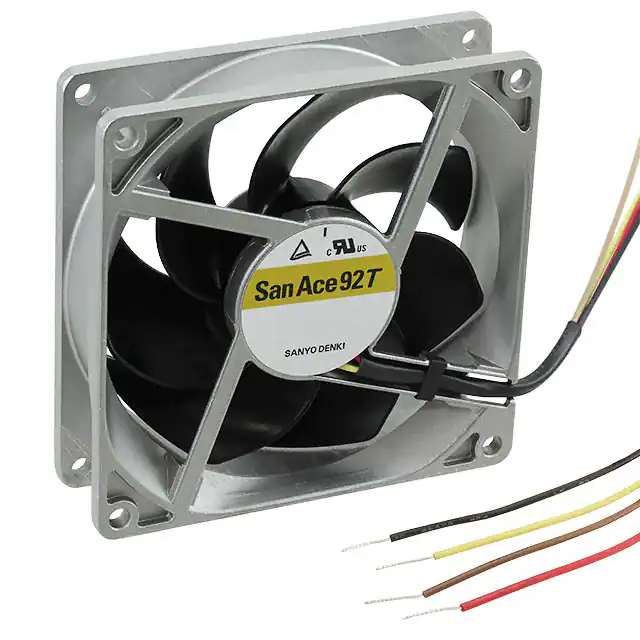

9GT0924P4J001FAN AXIAL 92X25MM 24VDC WIRE |
423 | - |
|
数据表 |
San Ace 92T | Box | Active | 24VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 44.0dB(A) | 5.04 W | CSA, TUV, UL | 5000 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
|

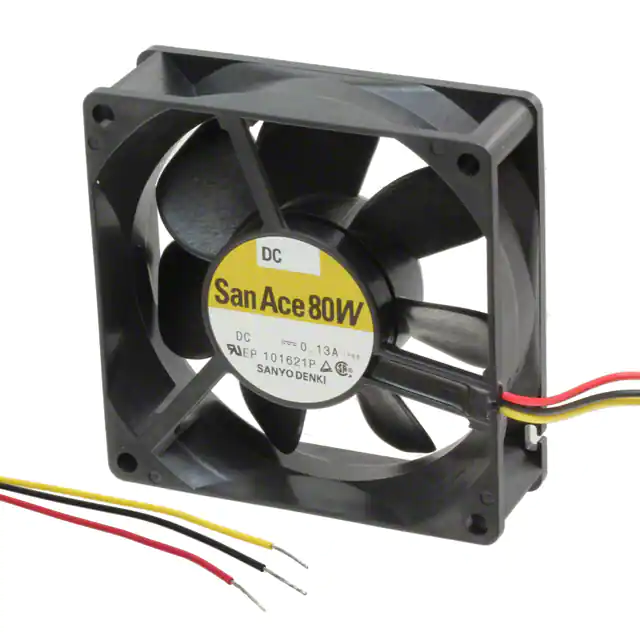

9WV0848P1H001FAN AXIAL 80X38MM 48VDC WIRE |
297 | - |
|
数据表 |
San Ace 80W | Box | Active | 48VDC | Square - 80mm L x 80mm H | 131.0 CFM (3.67m³/min) | 1.770 in H2O (440.9 Pa) | Ball | 0.518 lb (234.96 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 36 W | CSA, TUV, UL | 9700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

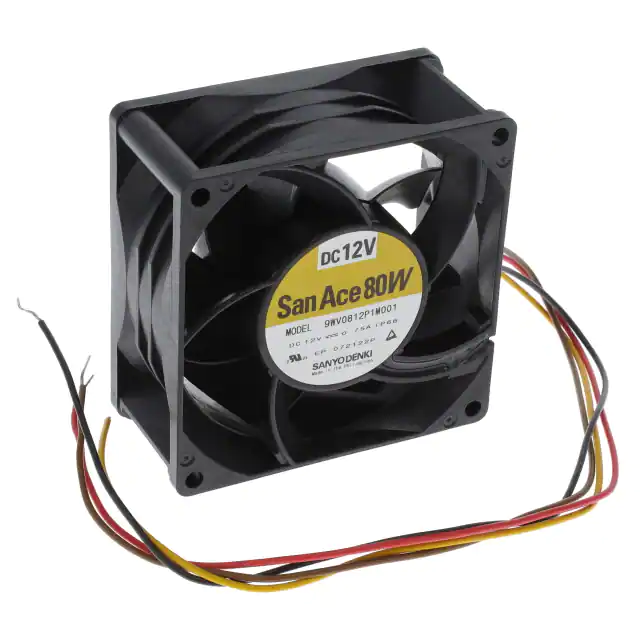

9WV0812P1M001FAN AXIAL 80X38MM 12VDC WIRE |
28 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 81.0 CFM (2.27m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 9 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
PFB1248UHE-EPFAN AXIAL 120X38MM 48VDC WIRE |
814 | - |
|
数据表 |
PFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 243.7 CFM (6.82m³/min) | 1.311 in H2O (326.6 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 42.24 W | CE, CSA, UL, VDE | 5300 RPM | -40 ~ 167°F (-40 ~ 75°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
4184N/17XFAN AXIAL 119X38MM 24VDC WIRE |
198 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 106.0 CFM (2.97m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 49.0dB(A) | 4.9 W | CE, CSA, EAC, UL, VDE | 3200 RPM | -22 ~ 158°F (-30 ~ 70°C) | 3 Wire Leads | - |
|
RER101-36/12N/2HHPR-181FAN IMP MTRZD 101X51.7MM 12VDC |
291 | - |
|
数据表 |
RER101 | Bulk | Active | 12VDC | Round - 101mm Dia | 112.0 CFM (3.14m³/min) | - | Ball | 0.672 lb (304.81 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 51.70mm | 74.0dB(A) | 20.5 W | - | 6000 RPM | - | 4 Wire Leads | - |
|
9WL0612P4H001FAN AXIAL 60X25MM 12VDC WIRE |
269 | - |
|
数据表 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 36.0dB(A) | 2.04 W | CSA, TUV, UL | 6150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
OD4020-05LB01AFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 24.1dB(A) | 900 mW | CE, cURus, TUV | 5150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
OD4020-05MB01AFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 30.3dB(A) | 1.2 W | CE, cURus, TUV | 6450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
OD4020-12LB01AFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 24.1dB(A) | 980 mW | CE, cURus, TUV | 5150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
OD4020-12MB01AFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 30.3dB(A) | 1.2 W | CE, cURus, TUV | 6450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
OD4020-24LB01AFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 24.1dB(A) | 1.2 W | CE, cURus, TUV | 5150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
OD4020-24LB02AFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 24.1dB(A) | 1.2 W | CE, cURus, TUV | 5150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
